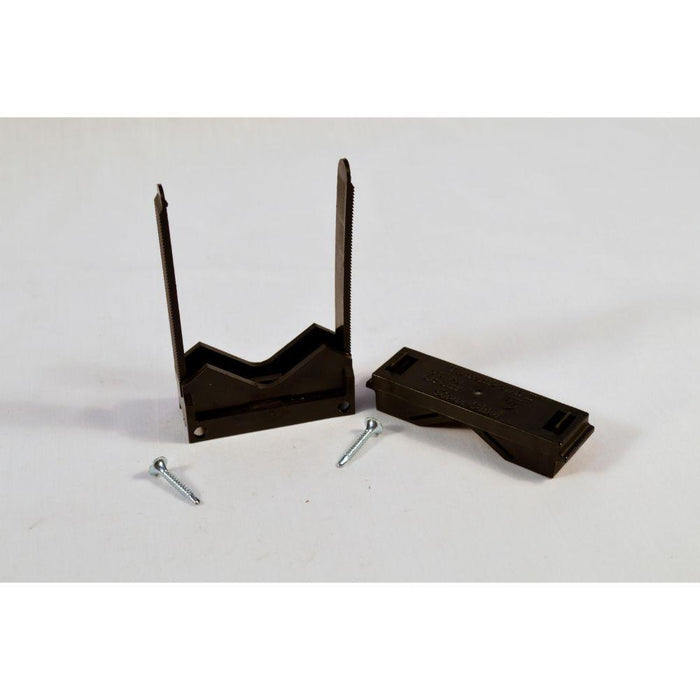

Sioux Chief 550-20 touchdown 2 (1) bridge (1) base (2) screws 1/2-2 CTS 3/8-2 SCH 40

Product Description

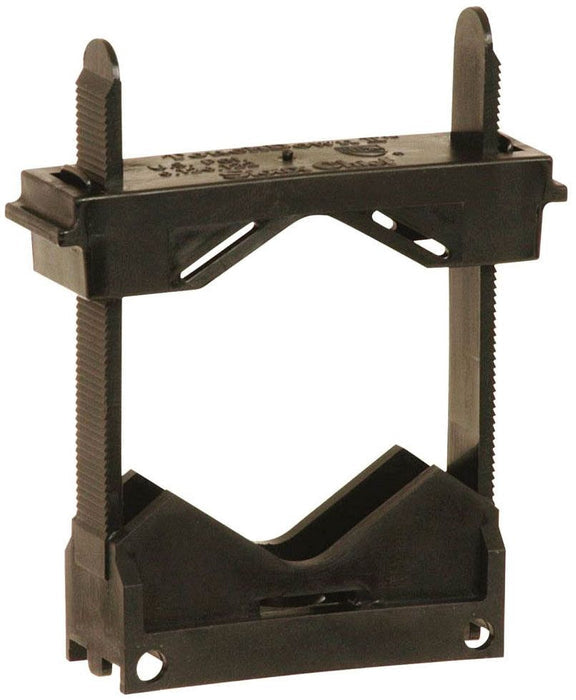

The SIOUX CHIEF 550-20 is a pipe clamp designed to secure 1/2 inch – 2 inch CTS tube (copper, PEX, CPVC) and 3/8 inch – 2 inch Sch. 40 pipe (steel, plastic). It features a releasable locking mechanism for variable clamping tension, accommodating expansion and contraction. This clamp provides a 5/8 inch stand-off from the mounting surface. The PlenumSafe model meets ASTM E84 25/50 Flame/Smoke Spread and UL-94 V0 flame ratings.

• Clamps 1/2 inch – 2 inch CTS tube (copper, PEX or CPVC) and 3/8 inch – 2 inch Sch. 40 pipe (steel or plastic)
• Releasable locking mechanism allows for variable clamping tension for expansion and contraction
• Provides 5/8 inch stand-off from mounting surface

Product Highlights

Features a releasable locking mechanism, 5/8 inch stand-off, and is constructed from corrosion-proof, UV-protected nylon 66.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 550-20
• Country of Origin: Domestic

Technical Specifications

• Type: Large
• Finish: Black
• Material: Nylon
• Pipe/Tube Size: 3/8 to 2 in x 1/2 to 2 in CTS
• Rod Size: 3/8 in
• Temperature Rating: -10 to 220 deg F
