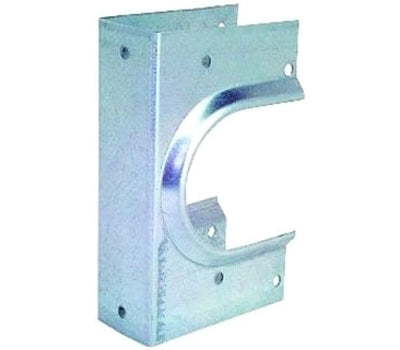

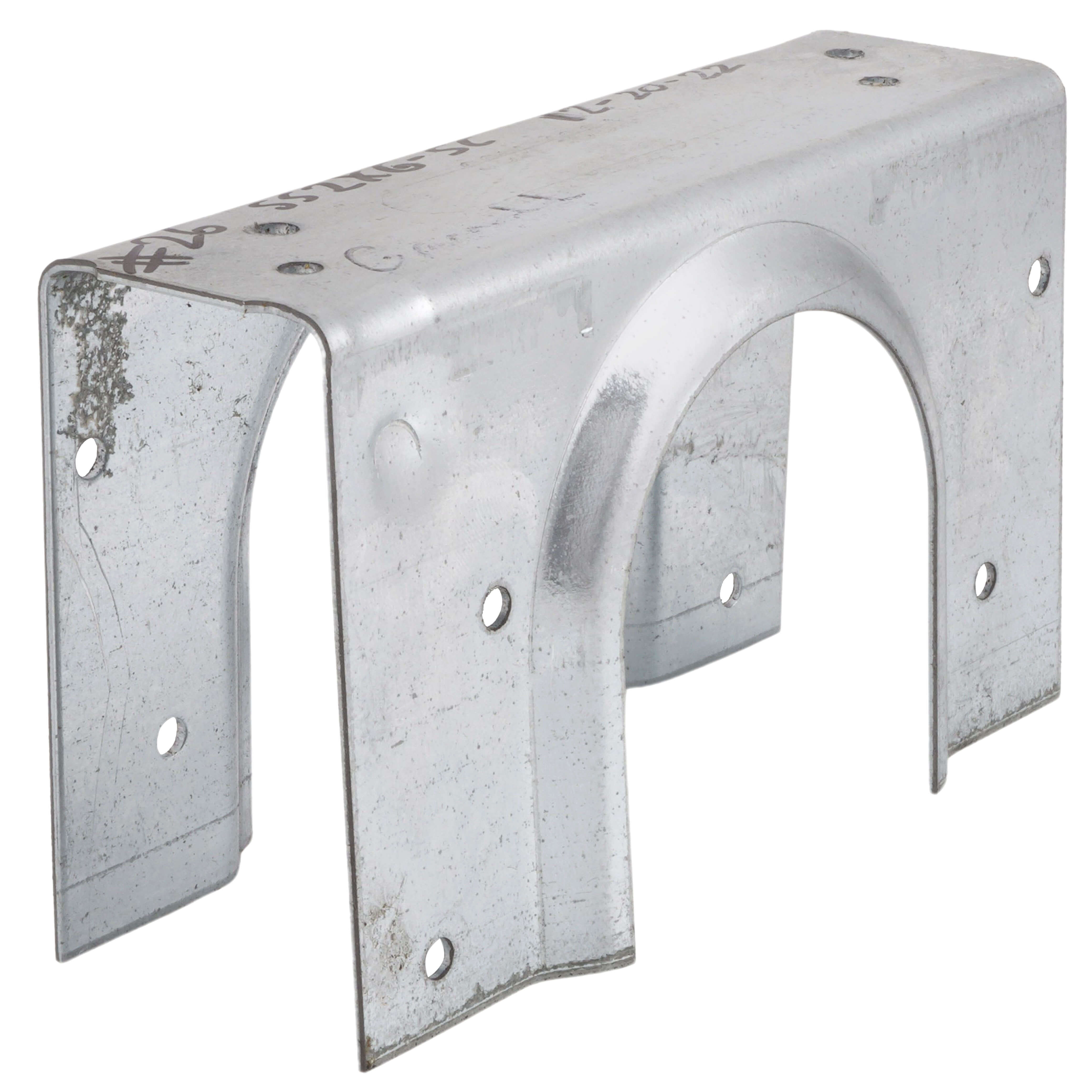

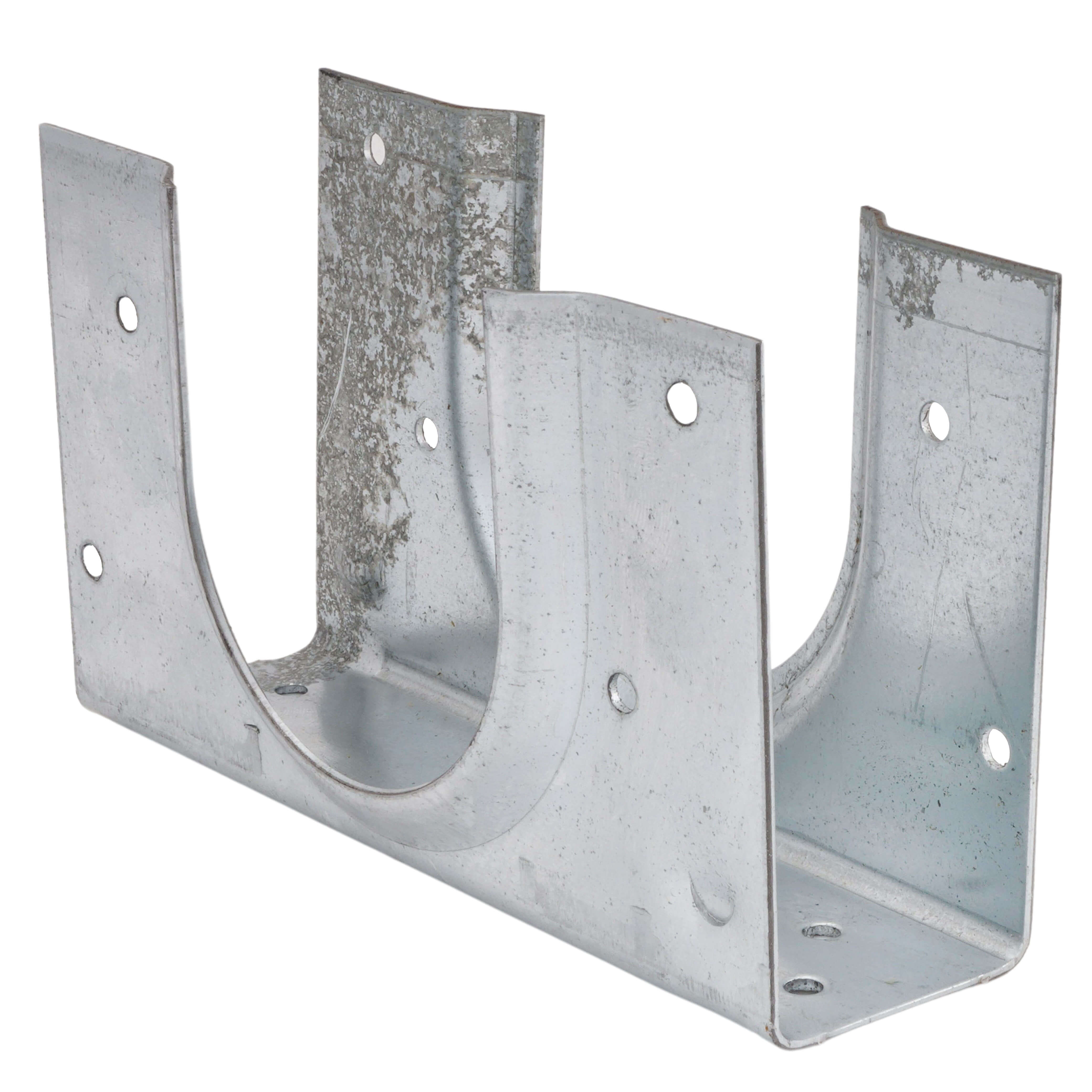

Sioux Chief 533-1 Sgl Stud Supp Bracket

Product Description

The SIOUX CHIEF 533-1 Sgl Stud Supp Bracket reinforces studs that have been bored or notched to allow for DWV piping. This stud shoe conforms to national plumbing code requirements and is secured to the joist with nails or screws. It is not a total replacement of removed construction materials.

• Formed rib provides added strength
• Installs over pipe up to 2-3/8 in OD
• Meets IRC 602.6
• 16 ga steel

Product Highlights

Reinforces bored or notched studs for DWV piping. Conforms to plumbing codes. Easy to install with nails or screws.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 533-1
• Country of Origin: US

Technical Specifications

• Part Number: 533-1
• Batteries Included?: No
• Batteries Required?: No
• MPN: 533-1
• Brand: SIOUX CHIEF
• Type: Brackets
• Applications: For single stud
• Standards/Certifications: IRC 602.6 approved
• Gauge: 16
• Material: Steel
• Pipe opening: 2-1/2"
• Maximum Load Rating: 552 lbs
• Series: 533
• Mounting Type: Screw-In
• Specifications Met: IRC 602.6
• Width: 1.5 in
• Height: 5.375 in
• Size: 1.58 in
• Depth: 3.38 in
• Application: Stud Shoe
• For Pipe/Tube Diameter: 2-3/8 in
• Material Thickness: 16 ga
• Mounting Location: Joist
• Mounting: Nail, Screw
• Overall Height: 5-3/8 in
• Overall Length: 3.38 in
• Overall Width: 1-1/2 in
• Stud Size: Single
• Weight Capacity: 552 lb
• Manufacturer: Sioux Chief
• Manufacturer #: 533-1
