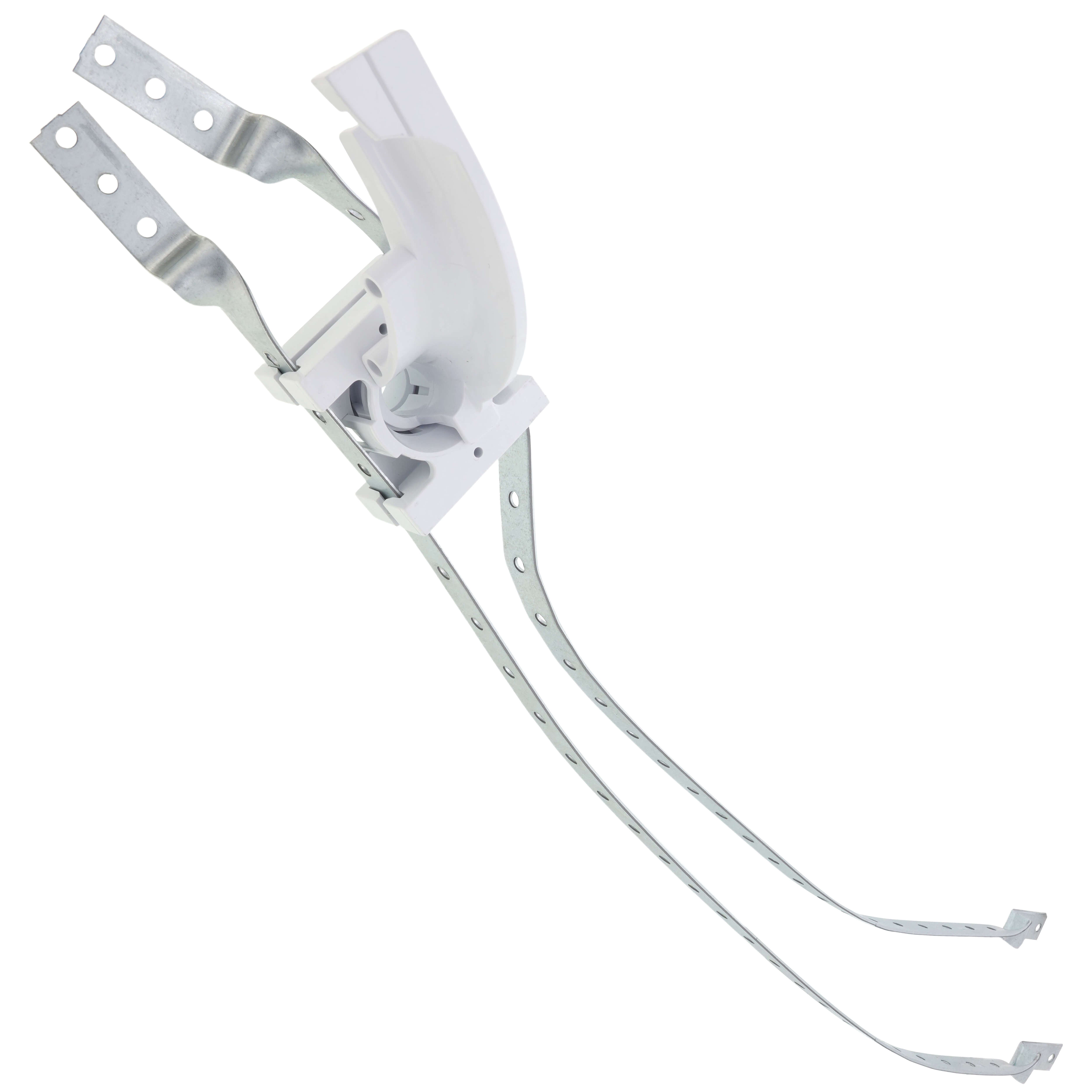

Sioux Chief 525-241PB StrongArm Twisted Stub Out Bracket (24 in Stud Bays) 525-241PBL

Product Description

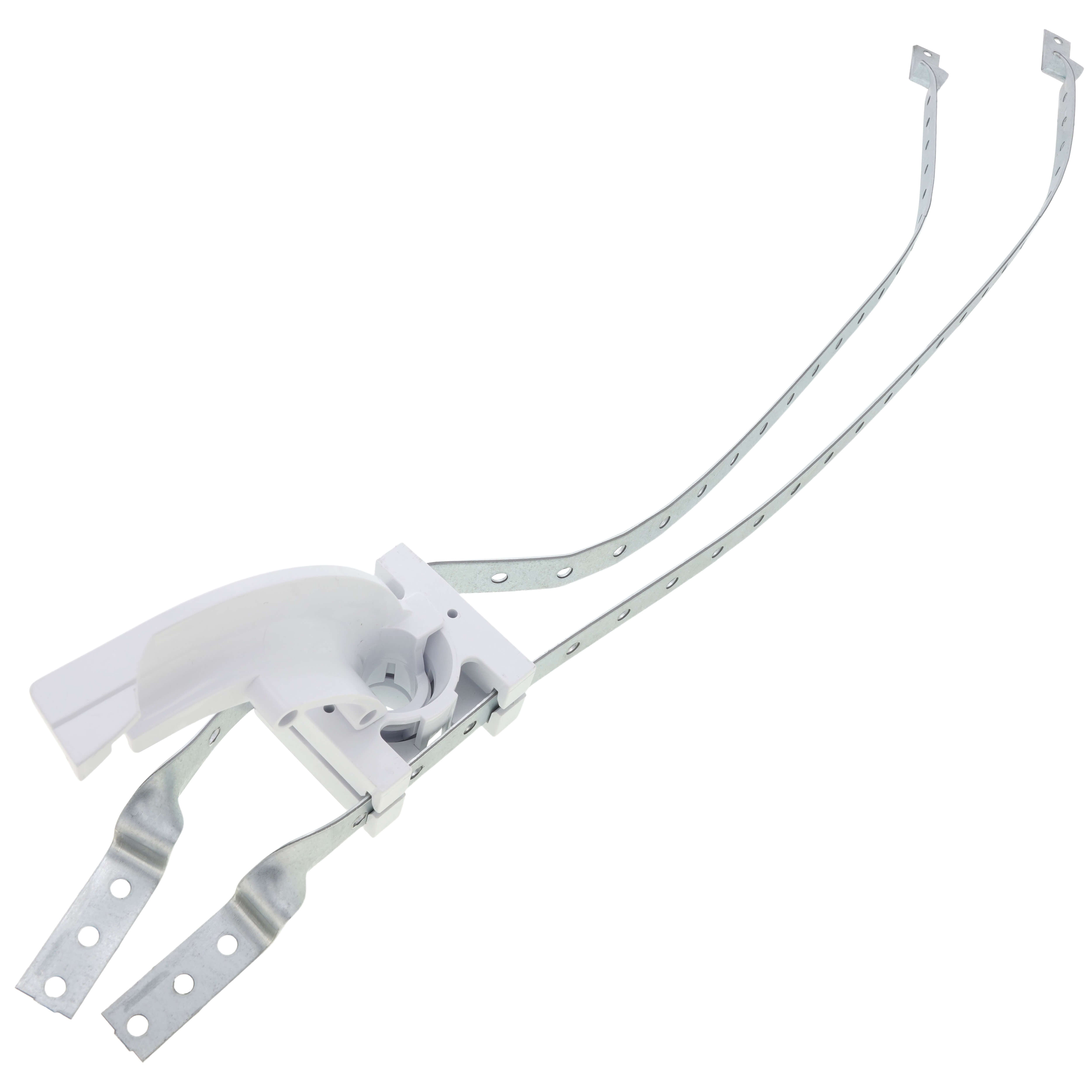

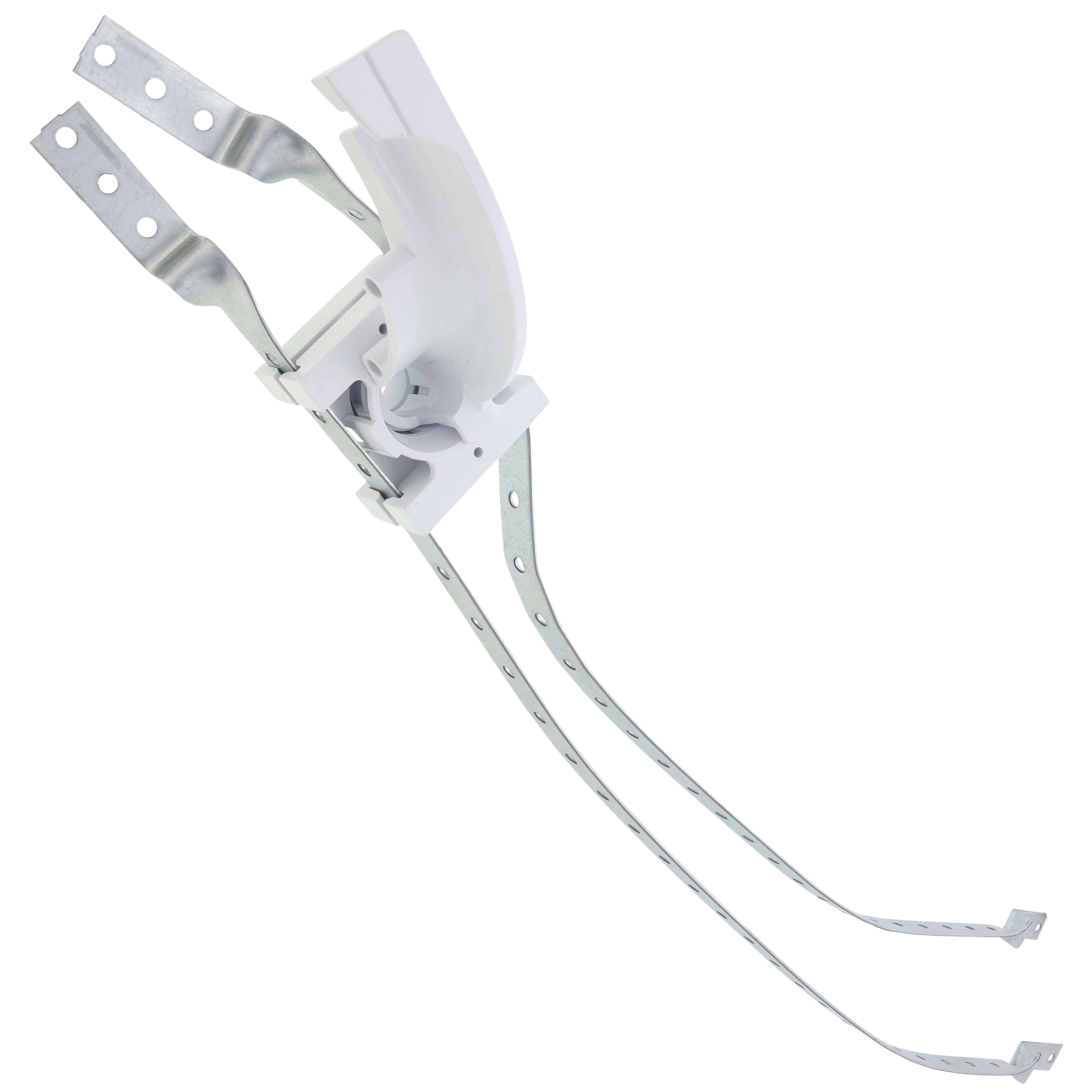

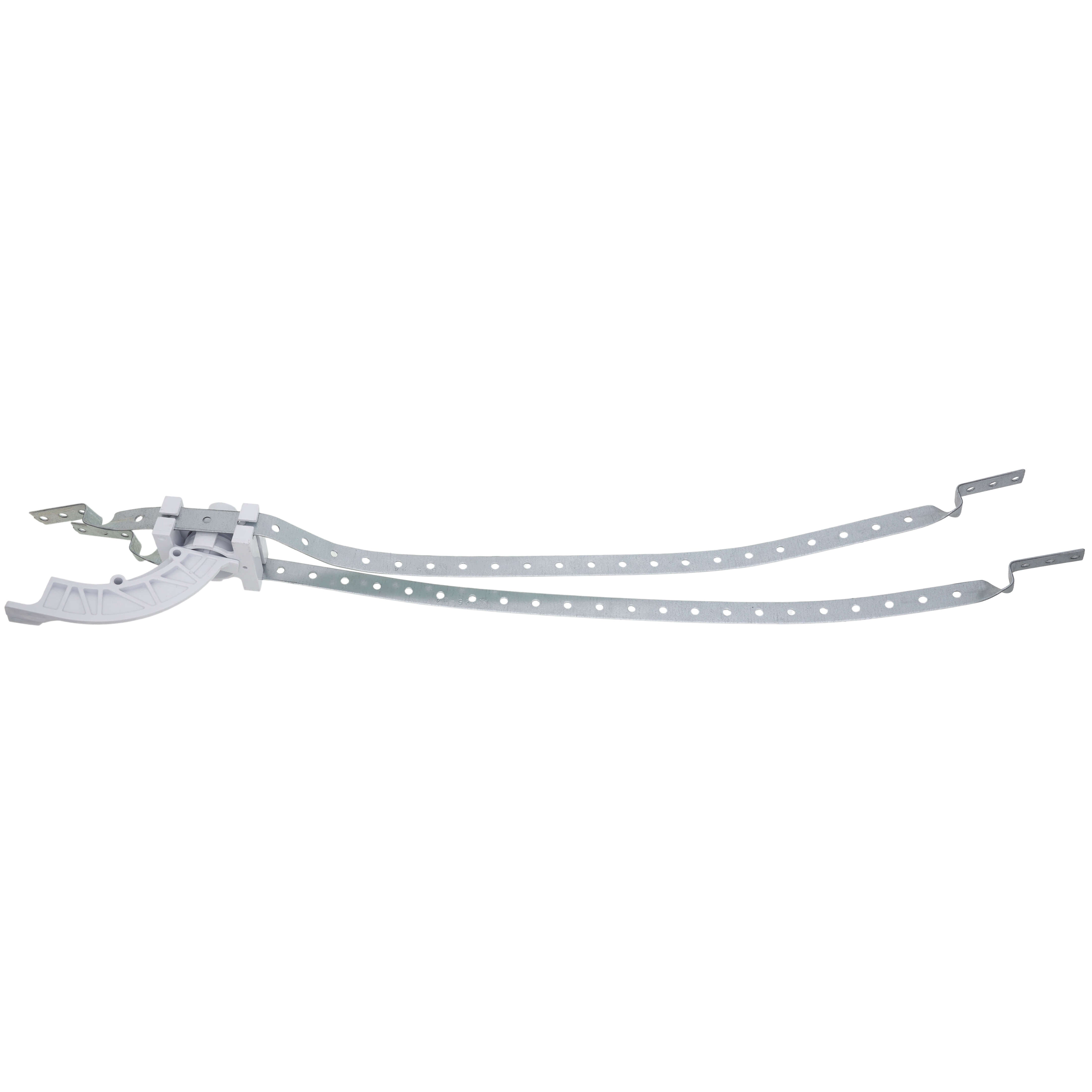

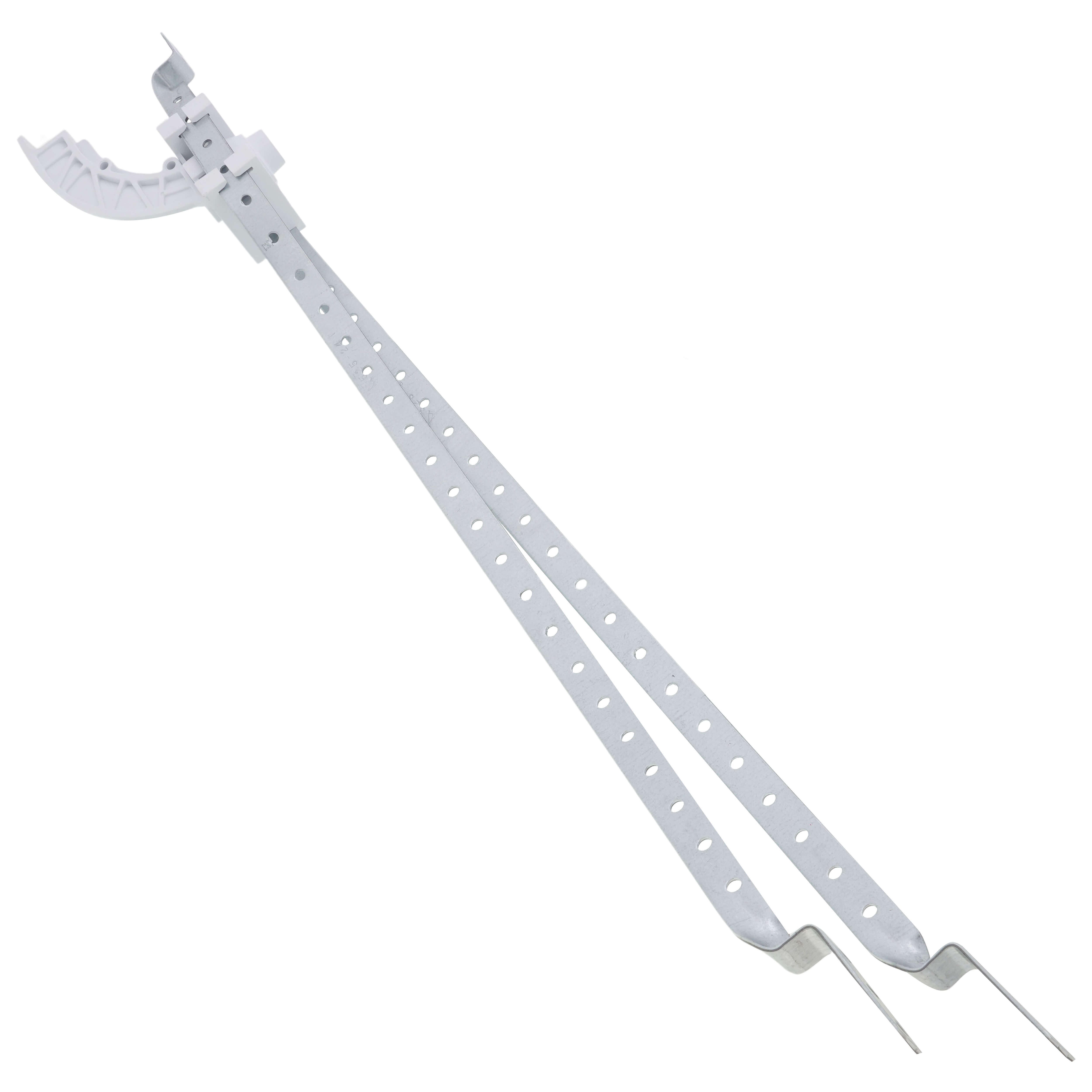

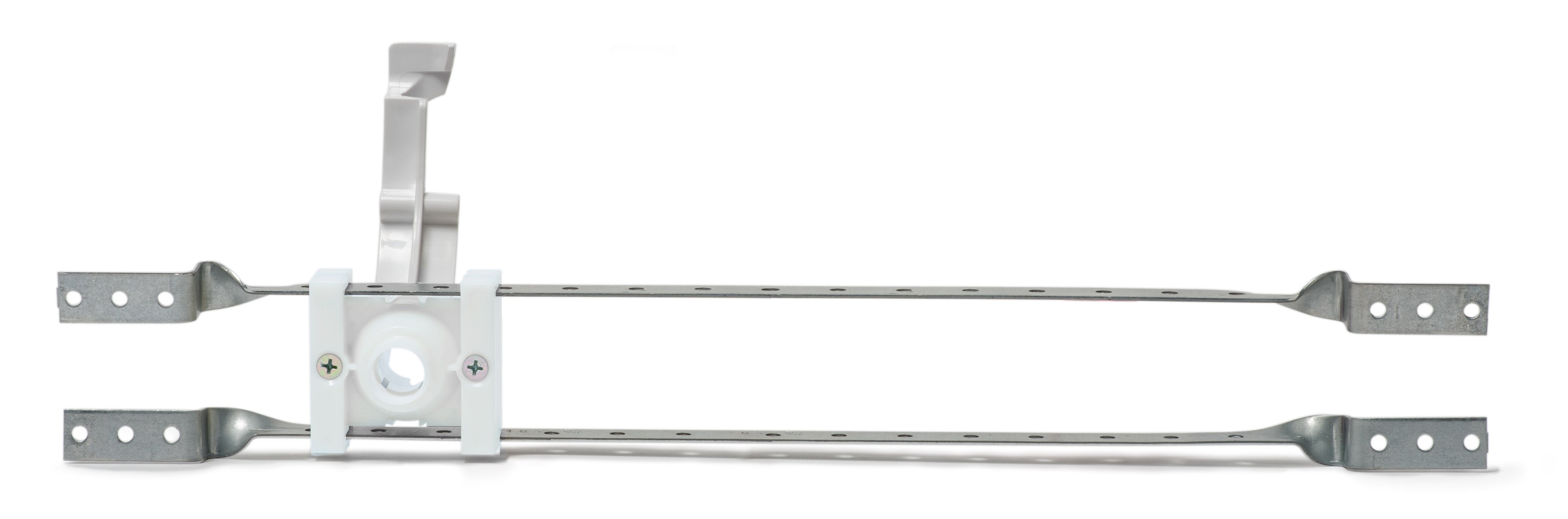

Sioux Chief 525-241PB is a StrongArm twisted stub-out bracket with one PEX Bend LockBlock designed for 24 in stud bays. The galvanized steel bracket assembly includes a plastic swivel elbow that rotates 360 degrees to accommodate tubing direction and preassembled LockBlocks that compress on tube and bracket to eliminate movement. The assembly is IAPMO listed, intended for 1/2 in flexible CTS tubing and rated to a 25 lb load at 140°F.

• Includes one PEX Bend LockBlock with a 360° swiveling plastic elbow for directional tubing alignment
• Designed for 24 in stud bays; twisted brackets mount to the face of the stud
• Rated 25 lb safe working load at 140°F and secures 1/2 in to 1 in CTS stub outs; IAPMO listed

Product Highlights

Twisted StrongArm bracket for 24 in stud bays with 360° swivel plastic elbow, 25 lb load at 140°F, compatible with 1/2 in–1 in CTS, IAPMO PS-42 listed

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 525-241PB
• Country of Origin: US

Technical Specifications

• Brand: Sioux Chief
• MPN: 525-241PB
• Product Name: StrongArm Twisted Stub Out Bracket with 1 PEX Bend LockBlock
• Application: 24 in stud bays
• Bracket Length: 24 in
• Included: (1) PEX Bend LockBlock (plastic PEX bend support)
• Compatible Tube Size: 1/2 in to 1 in CTS (use with 1/2 in flexible CTS tube)
• Load Capacity: 25 lb at 140°F
• Temperature Rating: 140 deg F
• Material: Galvanized steel (bracket); plastic elbow (ABS)
• Finish: Galvanized
• Weight: 0.697622 lb
• UPC: 739236267344
• Substitute MPN: 525-241PBL
• Certifications: IAPMO PS-42
• Patents: US Patent #8,061,390; US Patent #8,141,831
• Mounting Type: Twisted (mounts to face of stud); L-bend mounts inside stud cavity
• Listing: IAPMO listed
