Sioux Chief 523-1624 universal bracketing system 9 to 16 inch

Product Description

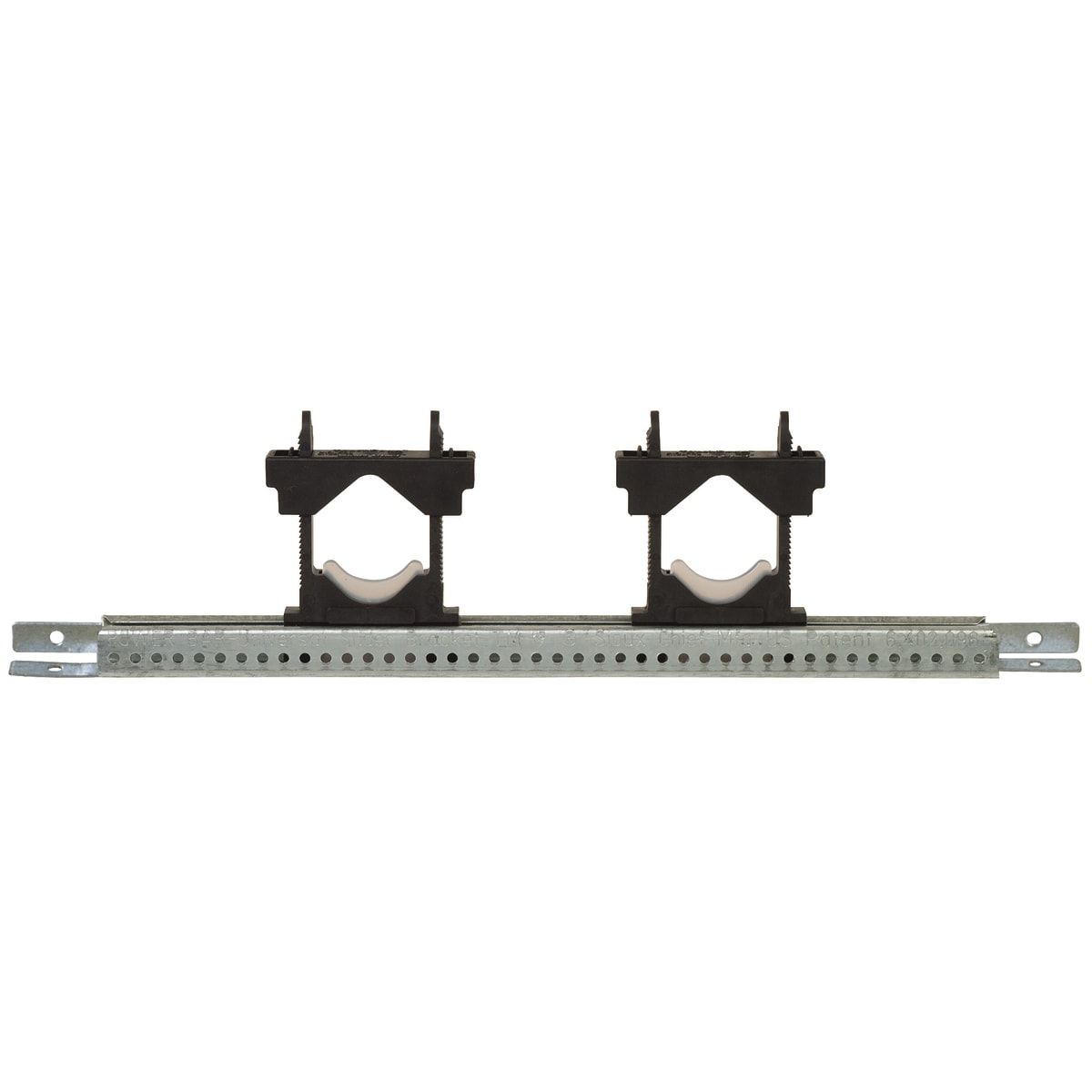

The Sioux Chief 523-1624 universal bracketing system is designed to support pipes or stub outs in residential and commercial applications. This adjustable bracket telescopes from 9 to 16 inches and includes dual fastening tabs on each end. Constructed from 20 gauge galvanized steel, it resists rust and is compatible with copper, PEX, and CPVC tubing.

• Adjustable from 9 to 16 inches
• Constructed from 20 gauge galvanized steel
• Compatible with copper, PEX, and CPVC

Product Highlights

The Sioux Chief PowerBar provides a strong support for pipes and tubes, preventing bowing and ensuring secure installation.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 523-1624
• Country of Origin: US

Technical Specifications

• Applicable Standard: CUPC, IAPMO
• Material: 20 Gauge Galvanized Steel
• Pipe Size: 9 to 16 Inch
• Temperature Rating: -10 to 220 deg F
• Type: Adjustable

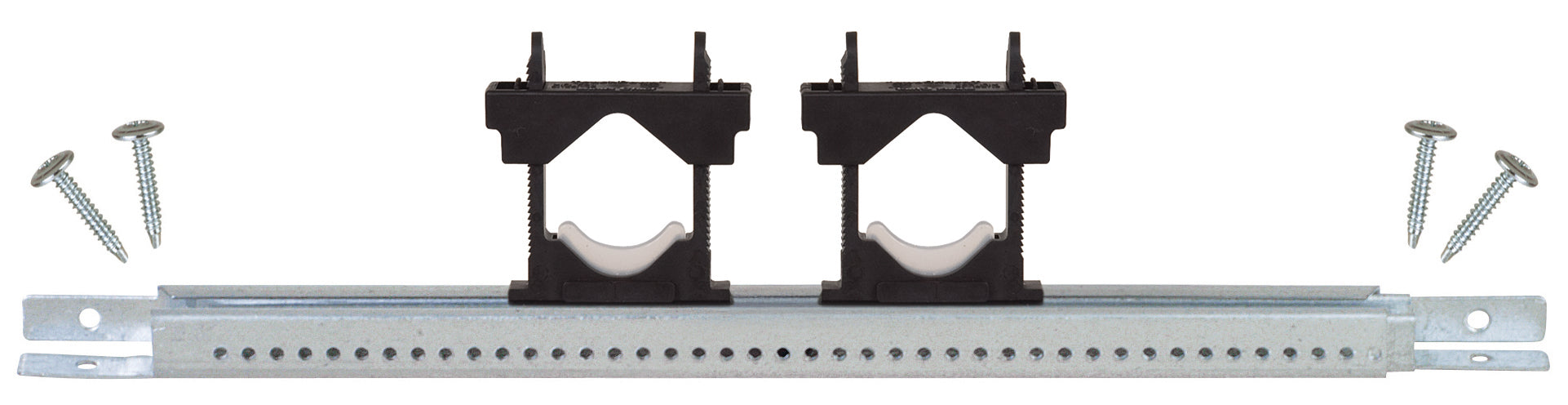

• Inclusions/Features: (1) Bracket, (2) Touchdown Clamp, (4) #8 x 1 Inch Pan Head Phillips Drill Tip Zinc Plated Screw
• Pilot Hole Spacing: 0.203 Inch
• Tab Dimension: 0.15 Inch Diameter x 1 Inch Length
• Load Rating: 90 Pound
• Used On: Copper Tube, CPVC Tube, PEX
• Application: Residential, Commercial
• Brand: SIOUX CHIEF
• MPN: 523-1624
• Finish: Galvanized
• Includes: (2) TouchDown Clamp (4) Drill-Tip Screws
• Item Name: Bracket
• Length: 9 - 16 in
• Width: 0.602 in
• Load Capacity: 66 to 90 lb
• Mfg Standards/Approvals: UPC/IAPMO Listed
• Manufacturer: Soux Chief Mfg.
• Part Number: 523-1624
• Item model number: 523-1624
• Item Package Quantity: 1
