Product Description

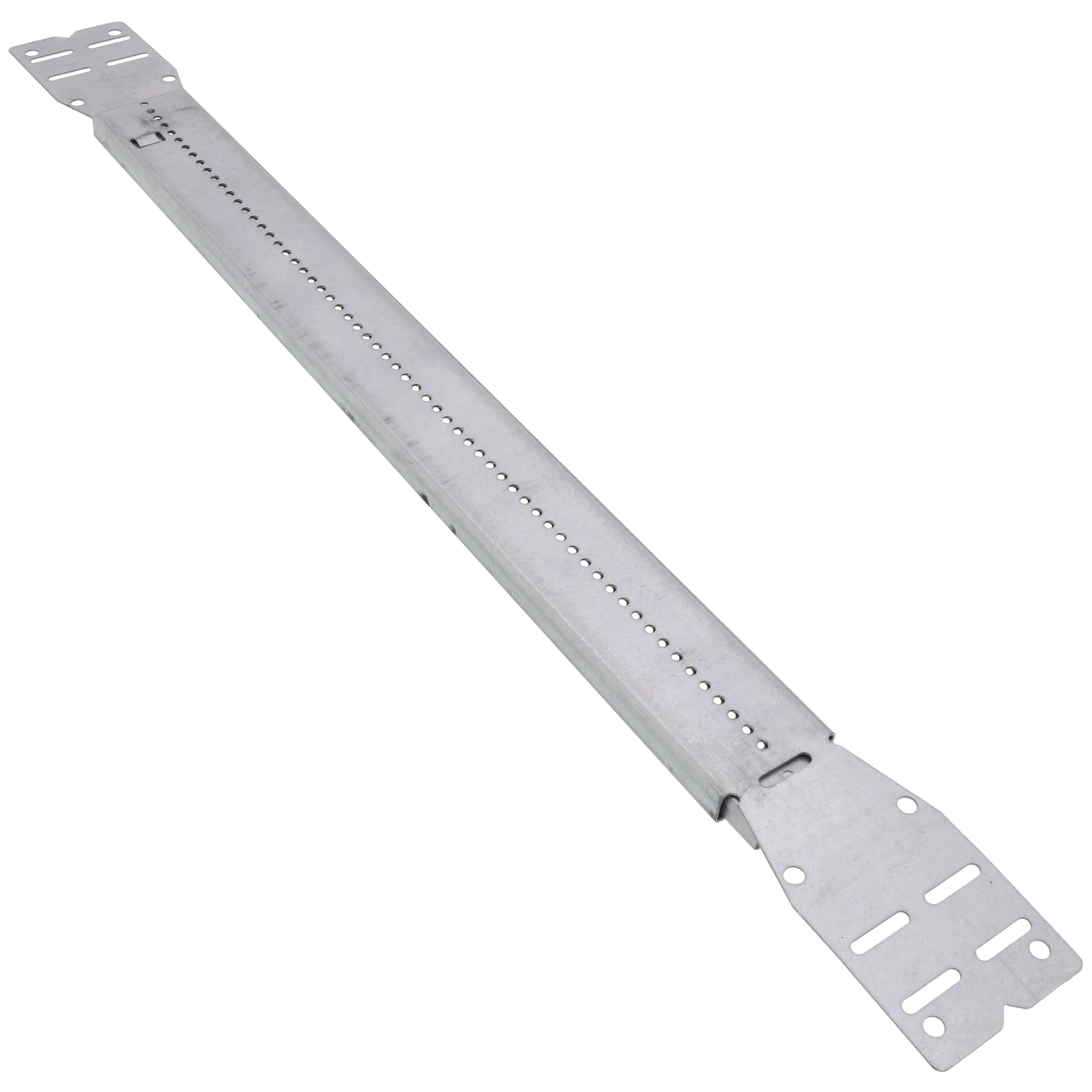

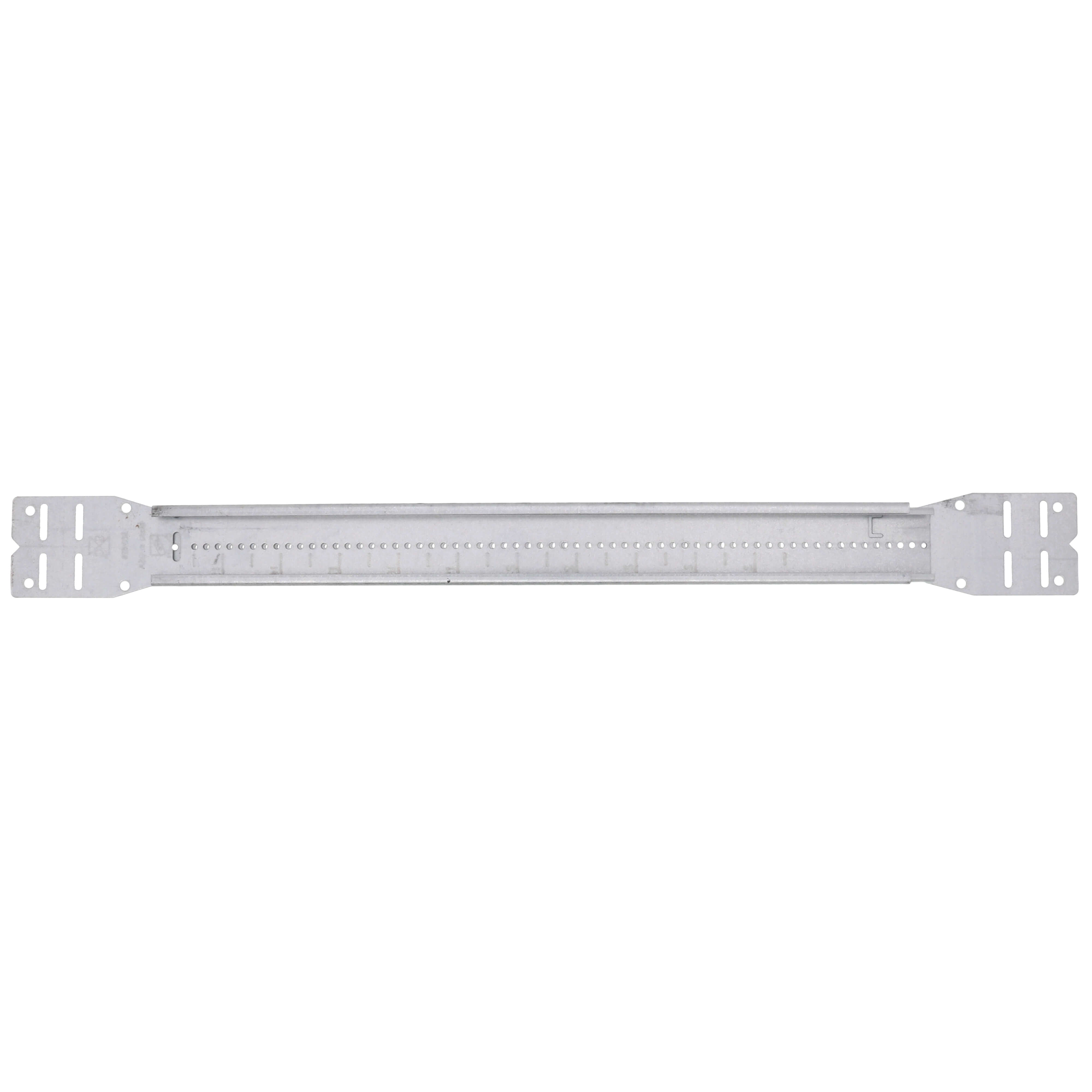

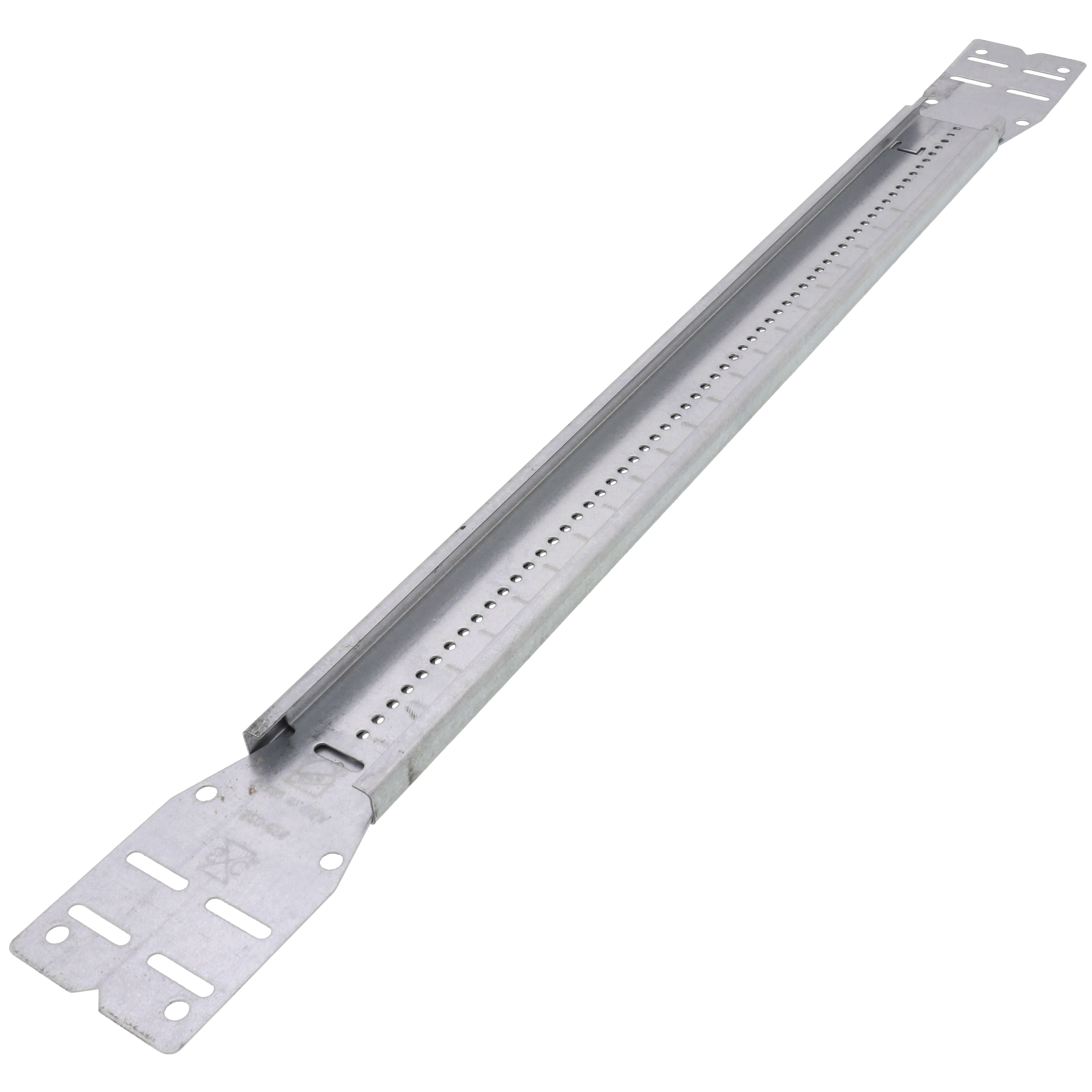

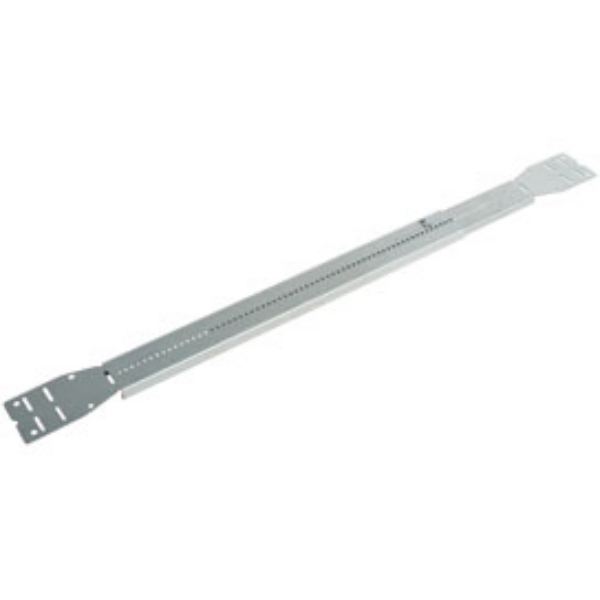

The SIOUX CHIEF 520-626 WiderSlider adjustable bracket eliminates cutting and fabricating metal studs or wood blocks. It features pre-dimensioned hash marks for quicker, more precise installations. The bracket is pre-assembled and fully adjustable with an interlocking tab to secure safe overlap and prevent disassembly. Made in the USA.
- Pre-dimensioned hash marks for quicker, more precise installations
- Pre-assembled and fully adjustable with interlocking tab to secure safe overlap and prevent disassembly
- Eliminates cutting and fabricating metal studs or wood blocks
Product Highlights

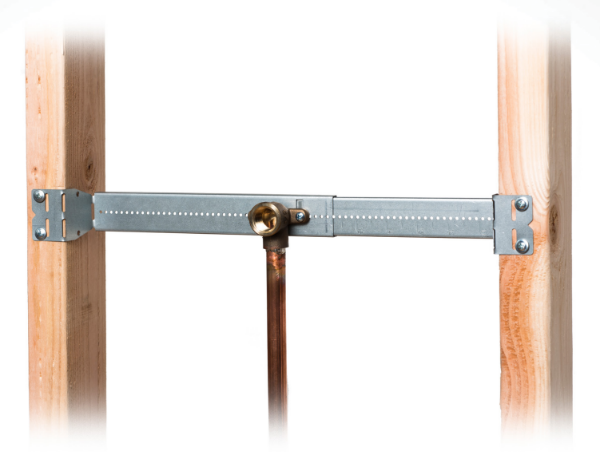

The SIOUX CHIEF WiderSlider adjustable bracket is made from G90 galvanized steel and supports drop-ear 90 fittings, tube clamps, tube straps, and electrical boxes.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 520-626
-
Country of Origin: USA
Technical Specifications
-
Series: 520
-
Type: Bracket
-
Width: 1-3/8 in
-
Load: 25 lb
-
Hole: 0.1 in
-
Material: Steel
-
Finish: Galvanized
-
Origin: Domestic
-
Size: 1-3/8"
-
Gauge: 22
-
Length: 23
-
Material Type: G90
-
Product Type: Adjustable Bracket
-
UL Listed: No
-
Work Load Limit: 25
-
Adjustable?: Yes
-
Plenum-Rated?: Yes
-
Brand: SIOUX CHIEF
-
Item Number: 520-626
-
Country of Origin: US
-
Coating: Galvanized
-
Collection: WiderSlider
