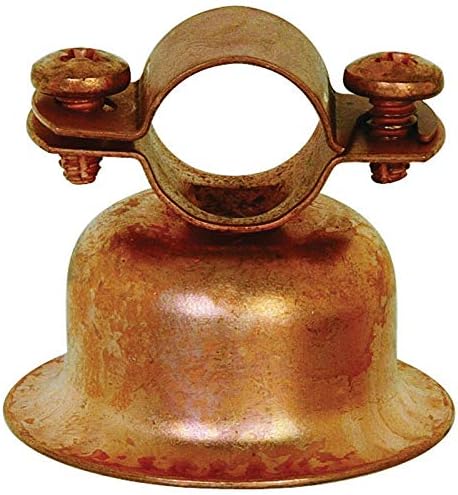

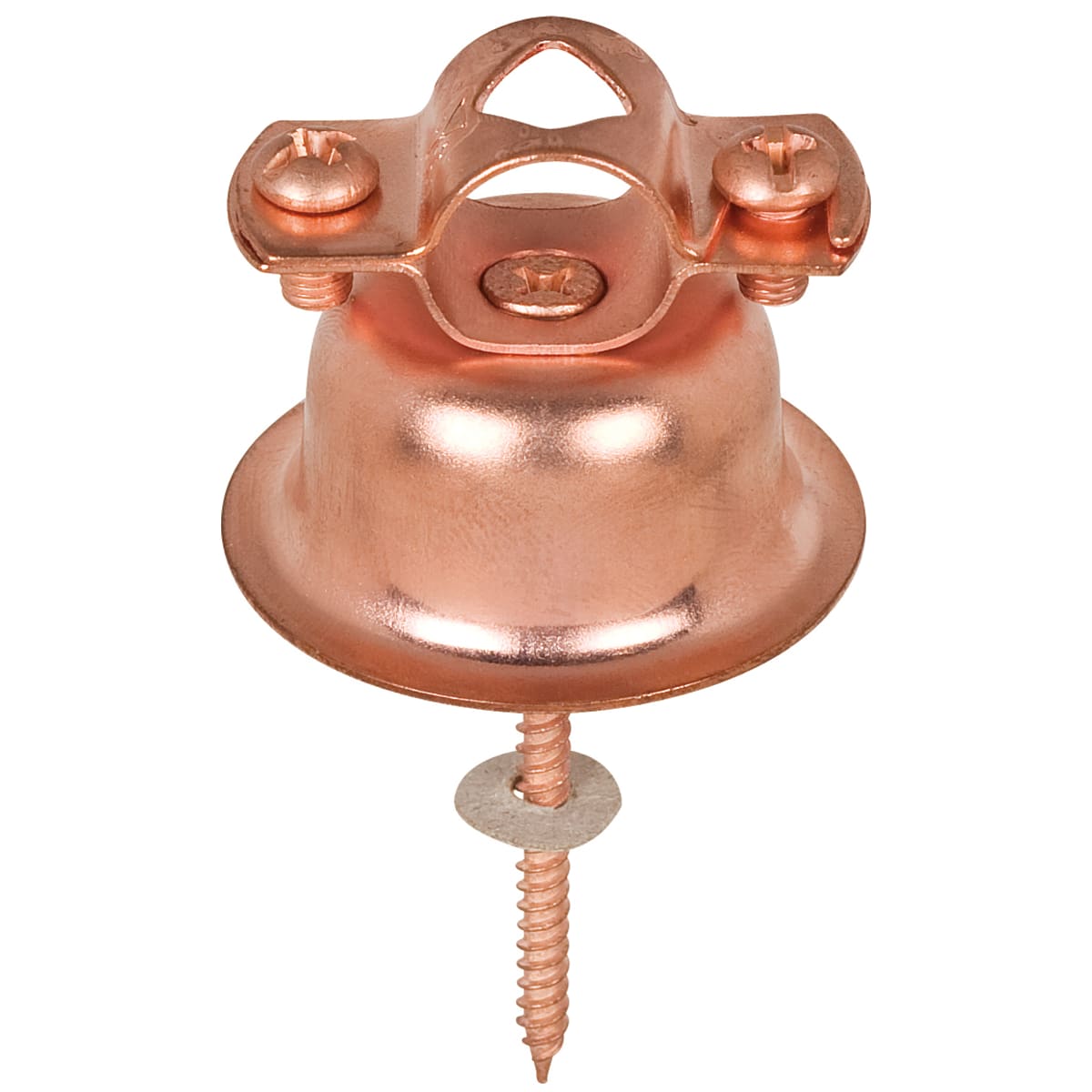

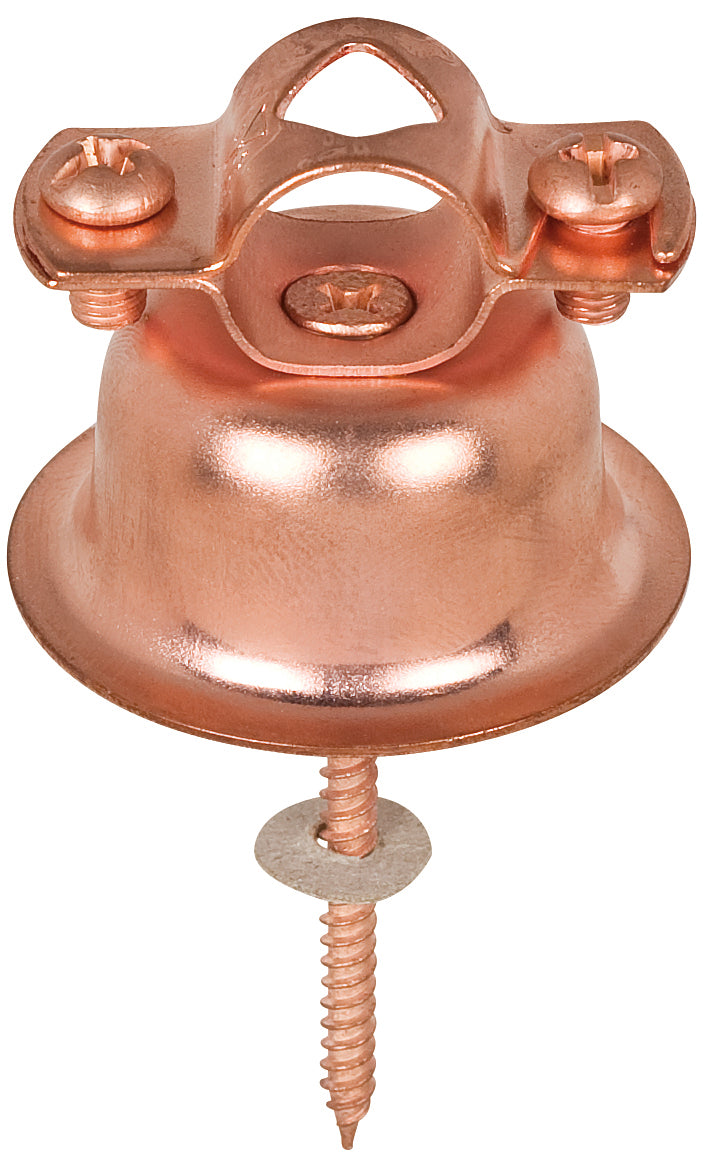

Sioux Chief 508-2PK Overhead Bell Hanger 1/2 in

Product Description

The SIOUX CHIEF 508-2PK series copper plated bell hangers support copper CTS in piping systems. The hanger fastens to studs, joists, or walls with a 2-1/2 inch mounting screw. It provides a 3/4 inch stand off distance from the mounting surface. Upper and lower pipe saddles fit 1/2 in, 3/4 in or 1 in CTS tube after screws are tightened.

• 13/16 in stand-off
• Recessed hole for mounting screw
• Includes (2) clamp screws and (1) 2-1/2 in mounting screw

Product Highlights

The SIOUX CHIEF bell hanger is made of steel with a copper plated finish. It is suitable for joist, stud, and wall mounting.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 508-2PK
• Country of Origin: TW

Technical Specifications

• Finish: Copper Plated
• Manufacturer Part Number: 508-2PK
• Material: Steel
• Series: 508 Series
• Size: 1/2 in
• Gauge: 22 ga
• Height: 1.43 in
• Tube Size: 1/2 in CTS
• Mounting Hole Size: 3/8 in
• Mounting Type: Joist, Screw, Stud, Wall
• Overall Height: 1.43 in
• Overall Width: 1.64 in
• Pipe Size: 1/2 in
• Includes: (2) Clamp Screws and (1) 2-1/2 in Mounting Screw
