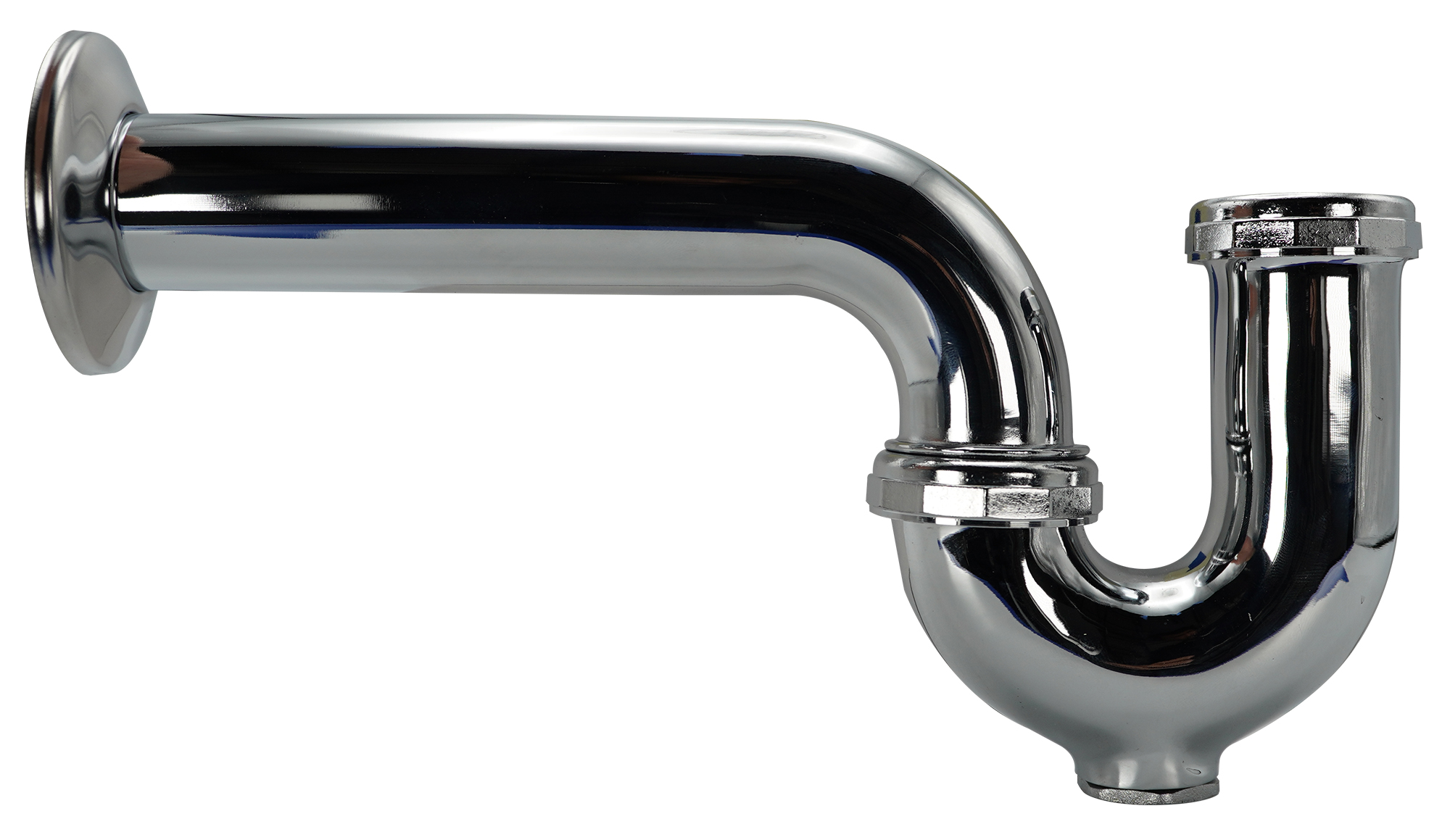

Sioux Chief 240-0487C04 Chrome P-trap 1-1/4 X 1-1/2 in with Cleanout

Product Description

The SIOUX CHIEF 240-0487C04 is a chrome-finished P-trap designed for drain waste applications in residential and light commercial plumbing. It features a 1-1/4 inch cast-in inlet and a 1-1/2 inch, 17-gauge outlet, providing a durable transition between fixture drain lines and waste piping. A built-in cleanout plug allows access for clearing stoppages without disassembling the trap. The chrome finish makes it suitable for exposed or semi-exposed installations where appearance matters. Licensed plumbers and experienced plumbing technicians are the typical installers for this type of fitting.

This P-trap is used in sink drain assemblies where the fixture tailpiece is 1-1/4 inches and the drain arm or wall outlet is 1-1/2 inches. Typical applications include lavatory sinks, bar sinks, and utility basins in both residential bathrooms and commercial wash stations. The cleanout feature is particularly useful in applications prone to debris accumulation, such as kitchen or bar sink drains, reducing service time when blockages occur.

Key Features

• 1-1/4 inch cast-in inlet transitions to a 1-1/2 inch outlet for common fixture-to-drain-arm configurations
• 17-gauge construction provides added wall thickness compared to standard 20-gauge trap bodies
• Built-in cleanout plug allows trap access without full disassembly
• Chrome finish suits exposed installations beneath open vanities or wall-mount sinks
• Sold individually, one trap per box

Compatibility

Designed as an OEM-style replacement or new-installation P-trap for drain assemblies with a 1-1/4 inch fixture tailpiece and a 1-1/2 inch drain arm or wall outlet.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable edition of the International Plumbing Code. Shut off the water supply and clear standing water from the drain line before removing an existing trap. Ensure the drain arm slope meets local code requirements, typically 1/4 inch per foot toward the wall. Do not overtighten slip-joint nuts, as excessive force can crack the trap body or distort the sealing washer.

Technical Specifications

• Inlet Size: 1-1/4 inches (cast-in)
• Outlet Size: 1-1/2 inches
• Wall Gauge: 17 gauge
• Finish: Chrome
• Cleanout: Included
• Quantity per Box: 1
• UPC: 739236452603

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 240-0487C04
