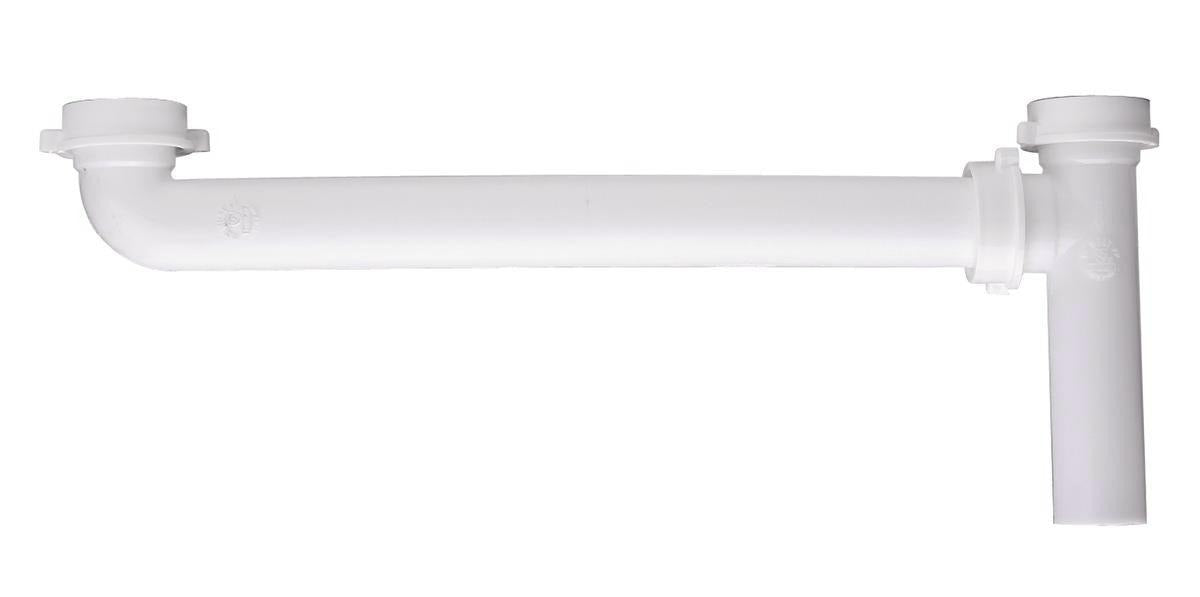

Sioux Chief 230-270616101 Slip Joint End Outlet 1-1/2x16in

Product Description

The SIOUX CHIEF 230-270616101 is a slip joint plastic end outlet fitting designed for drain, waste, and vent (DWV) applications in residential and light commercial plumbing systems. This end outlet accepts a 1-1/2 inch nominal slip joint connection and measures 16 inches in nominal length, providing an inline branch takeoff at the end of a trap arm or drain run. The metal construction delivers durability in exposed or semi-exposed drain configurations. Licensed plumbers and pipefitters install this fitting as part of fixture drain assemblies where a clean, secure slip joint connection is required.

This end outlet is suited for residential bathroom, kitchen, and laundry drain rough-ins as well as light commercial fixture drain applications. It functions within standard DWV piping systems where slip joint connections are acceptable under the applicable plumbing code. The 1-1/2 inch nominal sizing matches common lavatory, utility sink, and P-trap drain outlet diameters. The 16-inch nominal length accommodates typical trap-to-drain rough-in distances found in wall-drain configurations.

Key Features

• 1-1/2 inch nominal slip joint connection for standard DWV drain fittings
• 16-inch nominal length suits common rough-in drain distances
• Metal construction for durability in drain system applications
• End outlet configuration provides branch takeoff at fitting termination
• Compatible with standard slip joint nuts and washers

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial DWV slip joint drain assemblies using 1-1/2 inch nominal connections.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local plumbing code requirements for slip joint drain connections. Shut off the water supply and ensure the drain line is clear before beginning work. Hand-tighten slip joint nuts first, then snug with slip joint pliers — avoid overtightening, which can crack the fitting body or deform the slip joint washer. Verify the drain slope meets code-required minimum grade before finalizing the connection.

Technical Specifications

• Connection Type: Slip Joint
• Nominal Size: 1-1/2 inches
• Nominal Length: 16 inches
• Material: Metal

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 230-270616101
