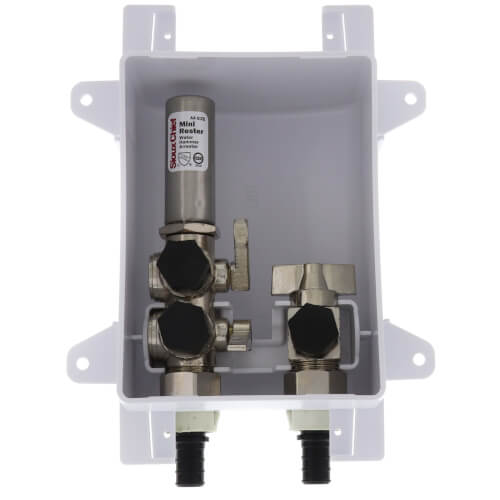

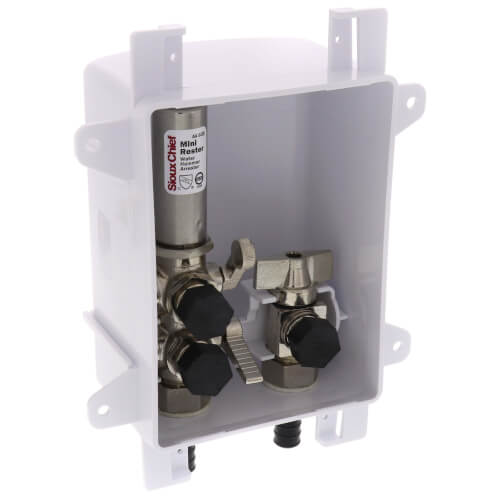

SIOUX 696-G3011XR Sioux Chief OxBox Kitchen Supply Outlet Box with Mini-Rester

Product Description

The SIOUX 696-G3011XR is designed for efficient water distribution in kitchen plumbing systems. This kitchen supply outlet box integrates a half-inch PEX crimp inlet with a three-eighth-inch compression outlet. It features durable quarter-turn ball valves for reliable operation and a mini-rester water hammer arrestor to reduce potential damage from water pressure spikes.

• Includes mini-rester water hammer arrestor.
• Features quarter-turn ball valves for quick shut-off.
• Compatible with kitchen sink and dishwasher installations.

Product Highlights

This product is ideal for connecting supply lines either from above or below and can be installed on or between studs. The ABS construction eliminates corrosion concerns, while the lead-free components ensure safe drinking water access.

Product Information

Standard Information

• Brand: SIOUX
• MPN: 696-G3011XR

Technical Specifications

• Application: Kitchen
• Product Type: Kitchen Supply Outlet Box
• Inlet Size: 1/2 inch
• Inlet Connection: F1807 PEX
• Outlet Size: 3/8 inch
• Material: ABS Outlet Box/Frame, No-Lead Brass Valve Body
• Faceplate Dimensions: 5-3/4 inch W x 7-1/4 inch H
• Maximum Pressure: 250 PSIG
• Pressure Rating: 150 psi
• Maximum Temperature: 250°F
• Temperature Rating: 200°F
• Standards/Approvals: ASME A112.18.1, ASSE 1010, NSF 372, IAPMO Listed
• Connection Size: 1/2 inch x 3/8 inch
• Type: Rough-In
