Sioux 696-G2403XF OxBox Washing Machine Outlet Box w/ Frame - 1/2 inches PEX Crimp Connection

Product Description

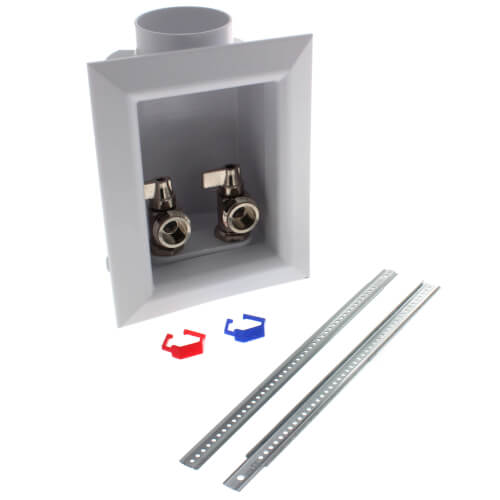

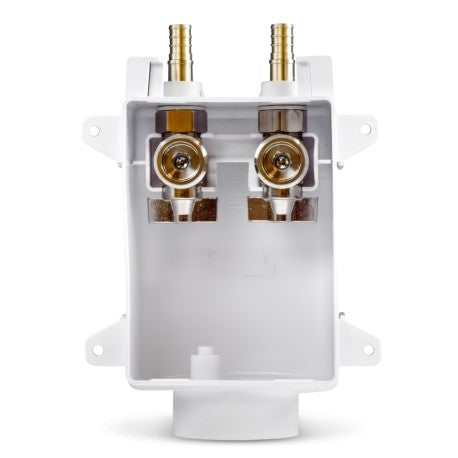

The SIOUX 696-G2403XF OxBox Washing Machine Outlet Box features a frame and 1/2" PEX crimp connection. The box mounts securely to a stud and separates supply and drainage systems. It features high-quality quarter-turn ball valves and 3/4" male hose-thread outlet connections. Durable ABS stands up to job site abuse.

• Boxes mount securely to stud
• Separates supply and drainage systems into two stud bays
• High-quality quarter-turn ball valves

Product Highlights

This washing machine outlet box offers a secure and flexible layout with durable ABS construction and reliable ball valves.

Product Information

Standard Information

• Brand: SIOUX
• Manufacturer Part Number: 696-G2403XF
• Country of Origin: USA

Technical Specifications

• Application: Washing Machine
• Product Type: Washing Machine Outlet Box
• Outlet Size: 3/4"
• Outlet Type: Male Threaded
• Inlet Size: 1/2"
• Inlet Type: PEX Crimp
• Material: ABS
• Features: 1/4 Turn Ball Valves, Includes Frame
• Max Temp (F): 250°F
• Max Pressure (PSI): 150
• Lead Free: Yes
• Outlet connections: 3/4" MGH (male garden hose)
• Drainage connection: 2" PVC (hub)
