Product Description

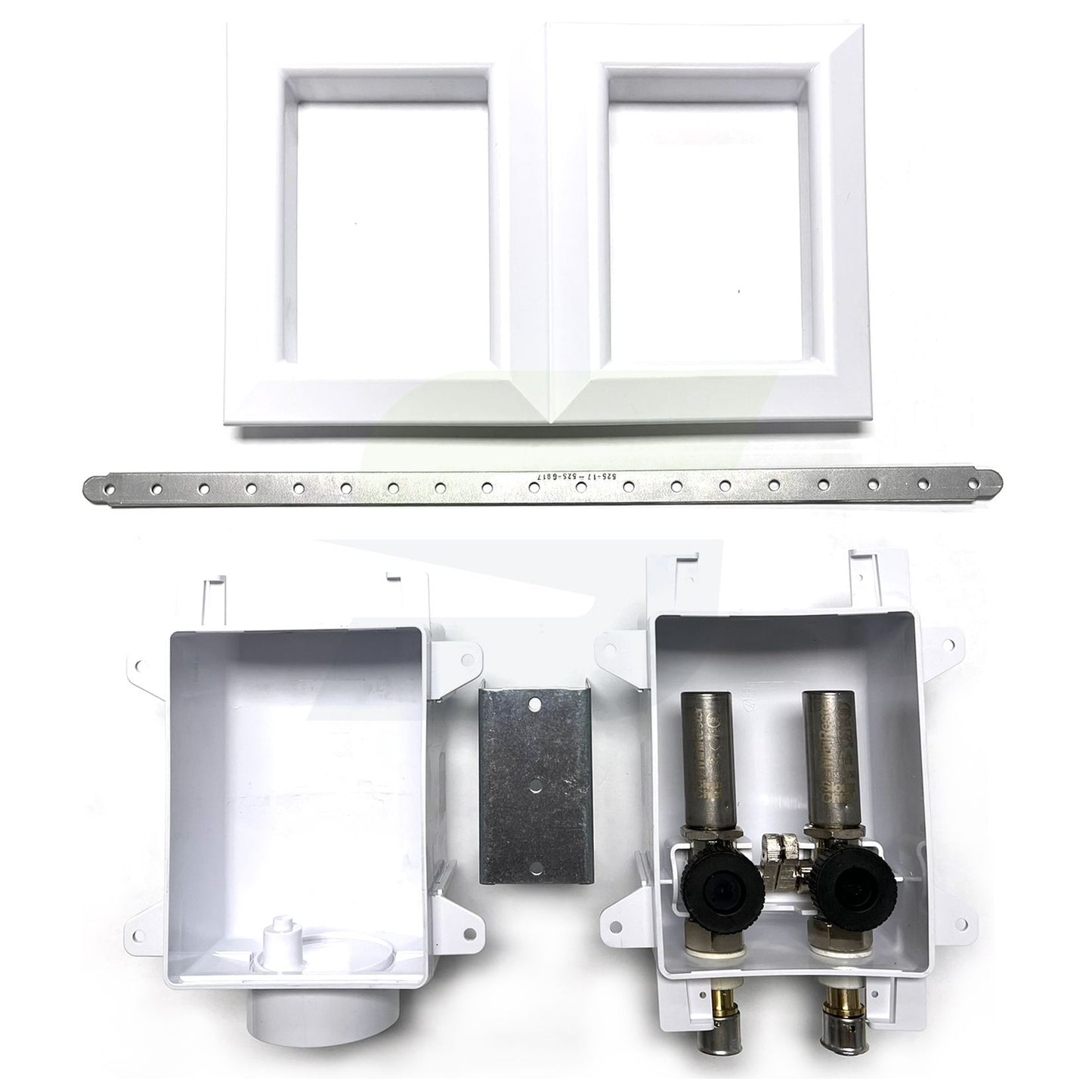

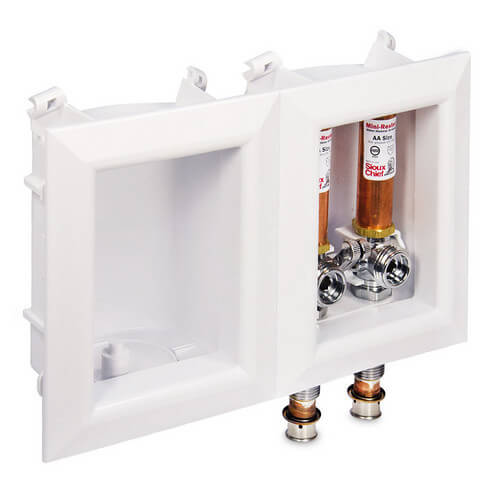

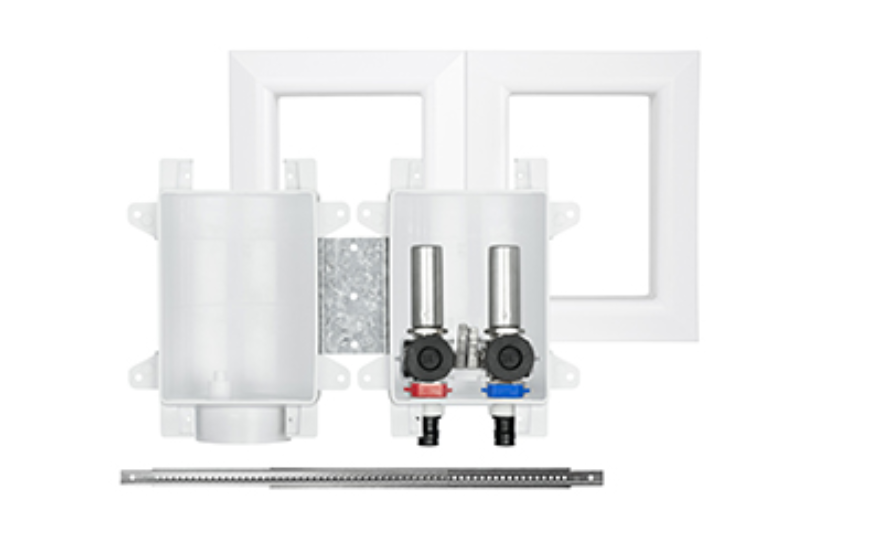

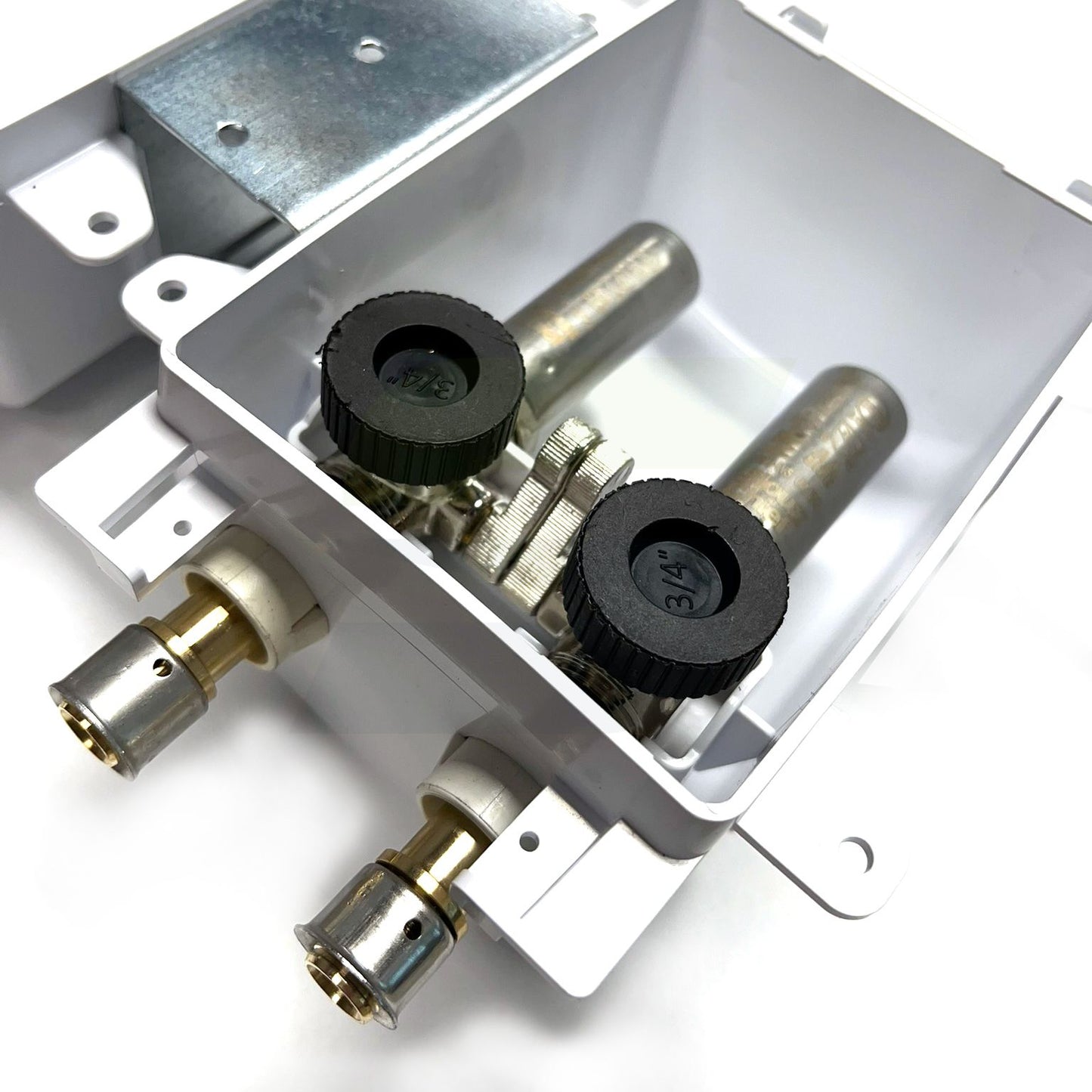

The Sioux 696-G2313VF OxBox washing machine outlet box has a water hammer arrestor and a one-half inch Viega PEX press connection. It mounts securely to the stud and separates supply and drainage systems into two stud bays, providing flexibility in layout. Made from durable ABS plastic, it is suitable for various job site conditions.
- Durable ABS construction
- Water hammer arrestor included
- Separates supply and drainage
Product Highlights
This outlet box is designed to provide reliable operation for washing machines while ensuring sound control and installation ease.
Product Information
Standard Information
-
Application: Washing Machine
-
Product Type: Washing Machine Outlet Box
Technical Specifications
-
Outlet Size: three-fourths inch
-
Outlet Type: Male Threaded
-
Inlet Size: one-half inch
-
Inlet Type: PEX Press
-
Material: ABS Plastic
-
Features: One-fourth Turn Ball Valves
-
Includes Frame: Yes
-
Lead Free: Yes
-
Includes: Water Hammer Arrestor
-
Max Temp (F): 250 degrees F
-
Max Pressure (PSI): 150
-
Series: 696
-
Height (inches): five and one-eighth
-
Width (inches): ten
-
Depth (inches): three and one-half
-
Valve Mount: Bottom
-
Manufacturer Name: Sioux Chief Mfg. Co., Inc.
-
Manufacturer: Sioux Chief
-
Valve Supplied: Yes
-
Maximum Working Temperature: 250 degrees F
