Sioux 696-G1010WFPK4 Oxbox Ice Maker Outlet Box w/ Water Hammer Arrestor 1/2 inches F1960 PEX Expansion Connection

Product Description

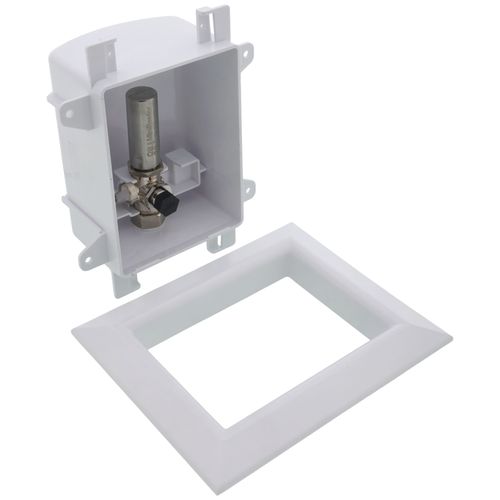

The SIOUX 696-G1010WFPK4 Oxbox Ice Maker Outlet Box features a water hammer arrestor and a 1/2" F1960 PEX expansion connection. The box mounts securely to a stud or over studs and includes debris covers to protect from drywall mud and paint. It features a high-quality quarter-turn ball valve and a 1/4" O.D. compression outlet connection.

• Durable ABS stands up to job site abuse
• Includes Mini-Rester water hammer arrester
• High-quality quarter-turn ball valve

Product Highlights

The Oxbox ice maker outlet box is made of durable ABS and includes a water hammer arrestor and debris cover.

Product Information

Standard Information

• Brand: SIOUX
• Manufacturer Part Number: 696-G1010WFPK4
• Country of Origin: US

Technical Specifications

• Application: Ice Maker
• Product Type: Ice Maker Outlet Box
• Outlet Size: 1/4"
• Outlet Type: Compression
• Inlet Size: 1/2"
• Inlet Type: PEX Expansion
• Material: ABS
• Features: Includes Frame, 1/4 Turn Ball Valves
• Max Temp (F): 250°F
• Max Pressure: 250 psig
• Includes: Water Hammer Arrestor
• Lead Free: Yes
