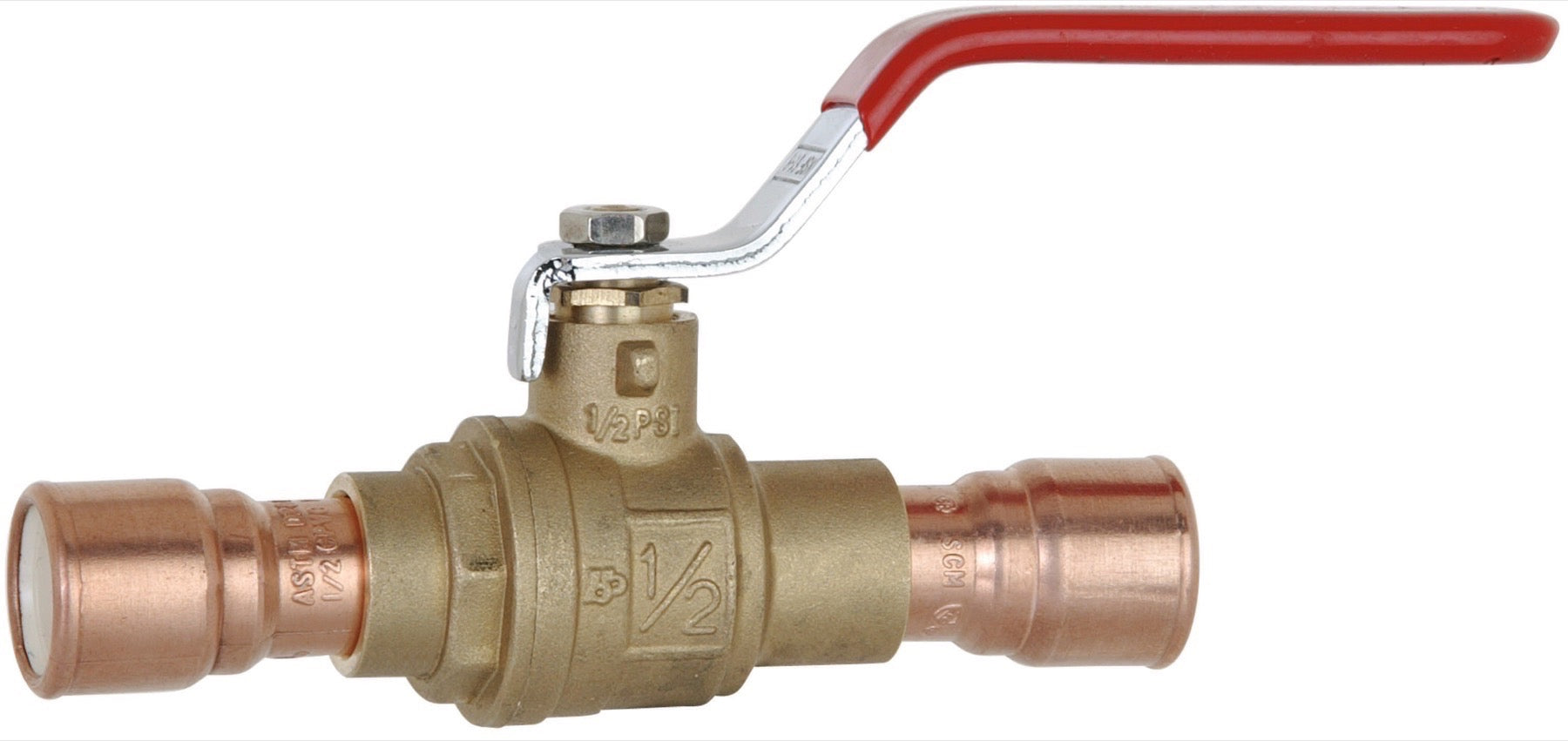

SIOUX 648-CG2FP Ball Valve

Product Description

The SIOUX 648-CG2FP ball valve is suitable for plumbing and water supply systems. This valve has a full port design and operates with a quarter turn actuation or lever handle for easy operation. The construction includes a brass body with a chrome-plated brass ball, ensuring durability and longevity.

• Nominal size of one half inch.
• Compatible with CPVC solder joint and CPVC x CPVC end connections.
• Pressure rated to six hundred PSI WOG.

Product Highlights

This valve is lead-free and features a blowout-proof stem, enhancing safety and reliability in water supply applications.

Product Information

Standard Information

• Brand Name: SIOUX
• Model: 648

Technical Specifications

• Actuation Type: Quarter turn, lever handle
• Nominal Size: One half inch
• End Connection: CPVC solder joint x CPVC solder joint, CPVC x CPVC
• Ball Material: Chrome plated brass
• Body Material: HSI 76-3 brass
• Seat Material: PTFE
• Port Type: Full
• Pressure Rating: Six hundred PSI WOG
• Inclusions/Features: Blowout-proof stem
• Application: Water supply system, plumbing system
• Additional Information: Lead-free
• Overall Length: Two and three quarter inches
• Type: Straight
• End to End Distance: Four and a half inches
