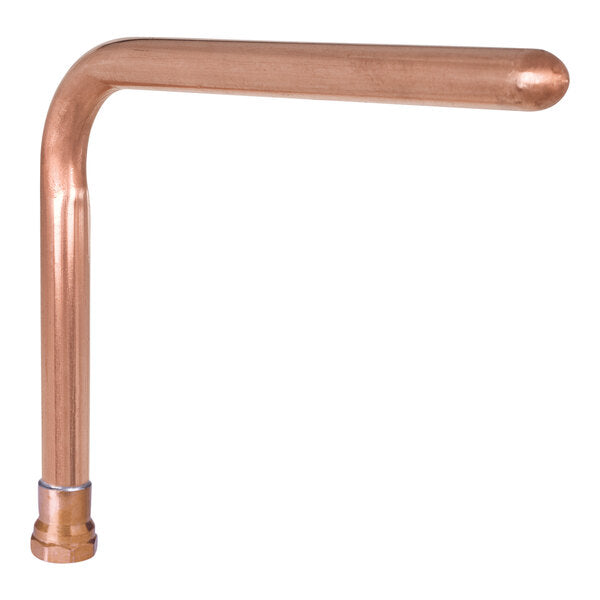

Sioux 613-67F Copper Tub Spout Stub Out Elbow with 1/2 FIP Connection

Product Description

The Sioux Chief 613-67F is a copper tub spout stub out elbow designed for connecting a tub valve to a spout nipple. It features a 1/2 FIP connection suitable for 1/2 CTS tubing.

• Constructed from Type L copper tubing.
• Incorporates a spin-closed outlet for pressure testing.
• Pressure tested to 2900 PSIG.

Product Highlights

This stub out elbow is lead-free and compliant with domestic water use standards.

Product Information

Standard Information

• Brand: Sioux
• MPN: 613-67F

Technical Specifications

• Fitting Type: Stub Out Elbow
• Material: Copper
• End Connection 1: FPT
• Fitting Size 1: 1/2 in
• Inlet: 1/2 copper pipe
• Outlet: 1/2 copper pipe (spin closed)
• Connection Type: FNPT
• Supply Connection: FIP x Spin Closed
• Length: 7 in
• Width: 6 in
• Height: 6 in
• Stub-out length: 7 in
• Water Inlet Size: 1/2 inches
• Pressure - Maximum: 2900 psig
• Lead Law Compliant: Yes
• ANSI: ANSI B16.22
• ASME: ASME B16.22
• NSF Certified: Yes
