Product Description

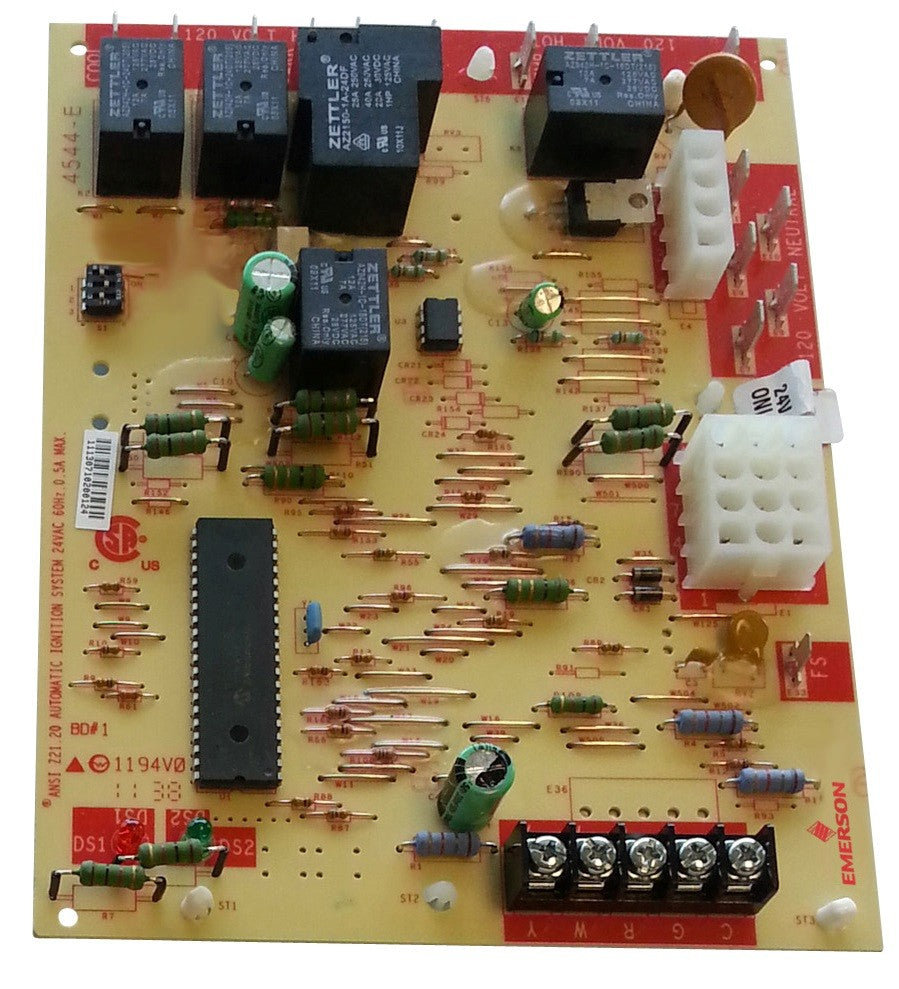

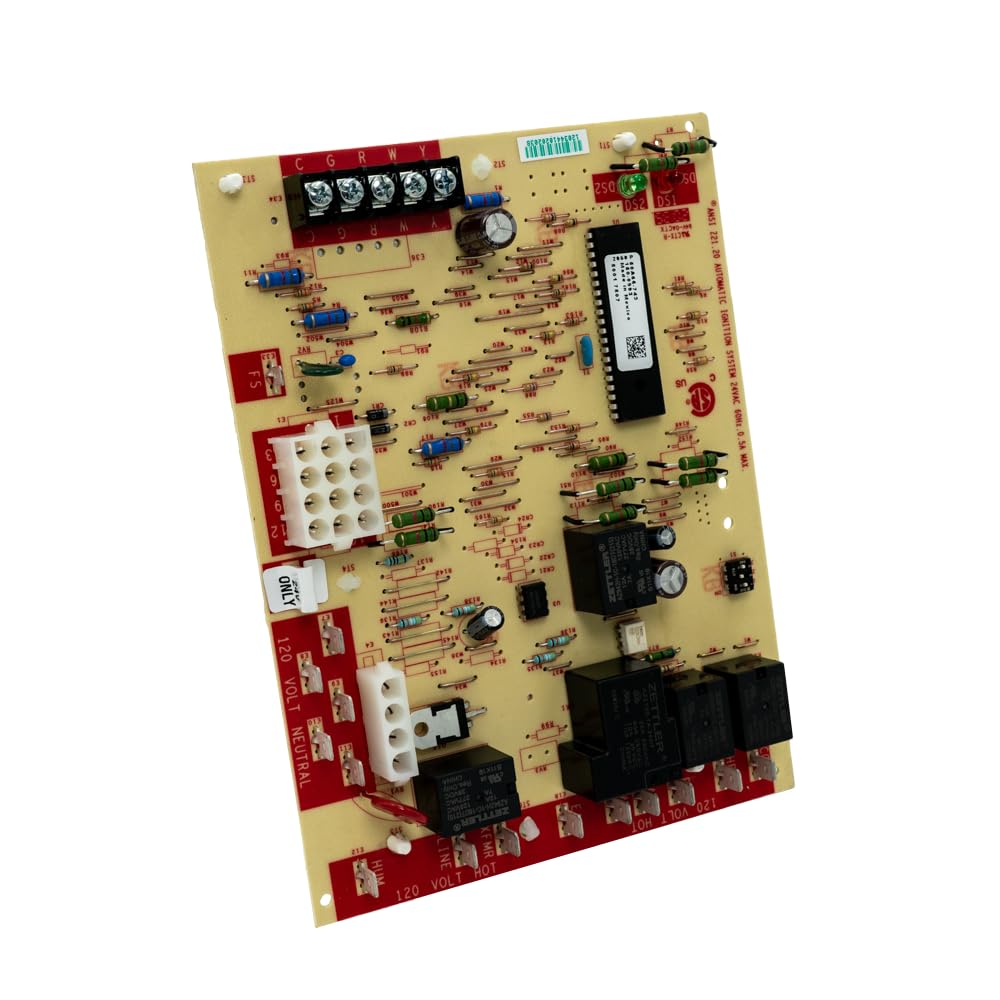

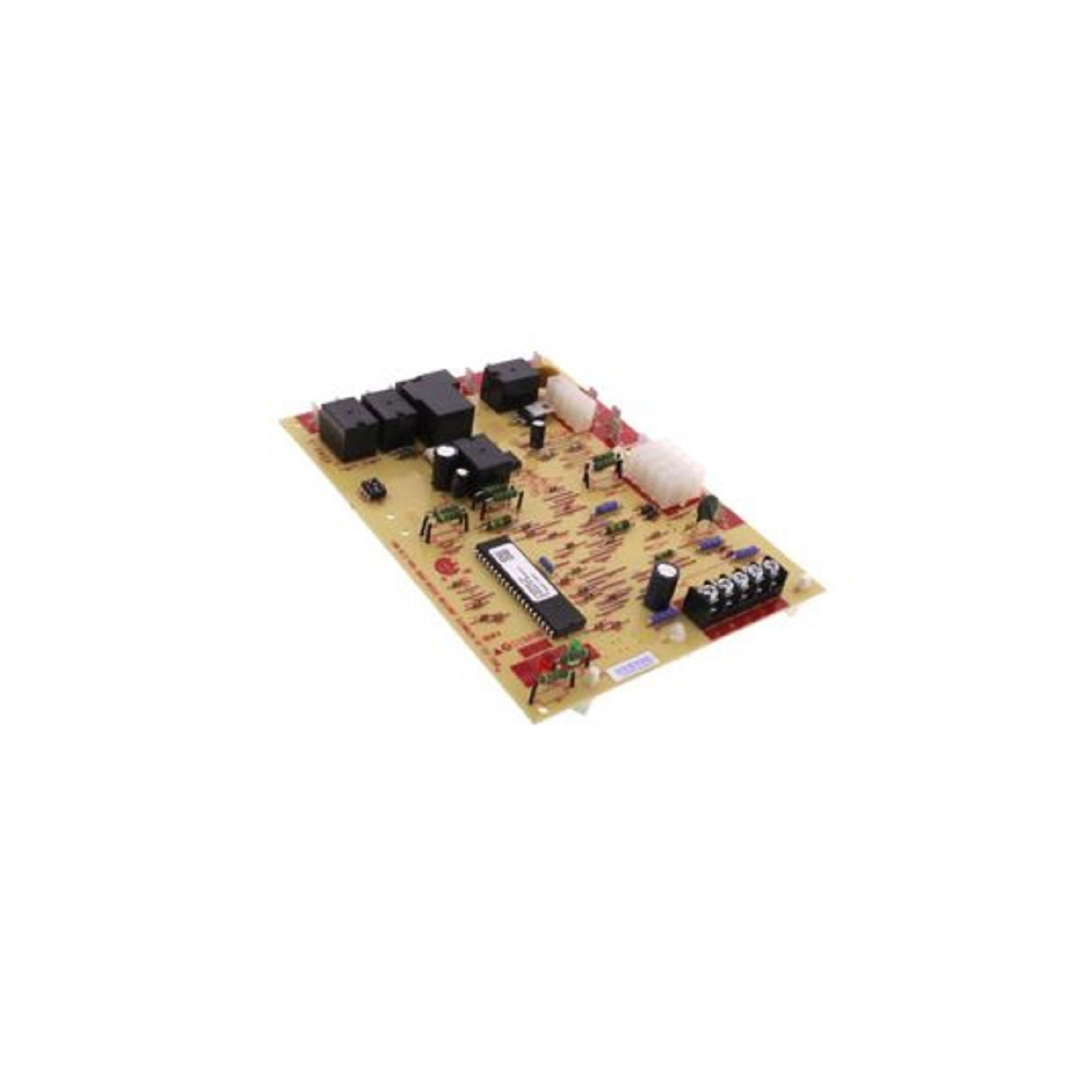

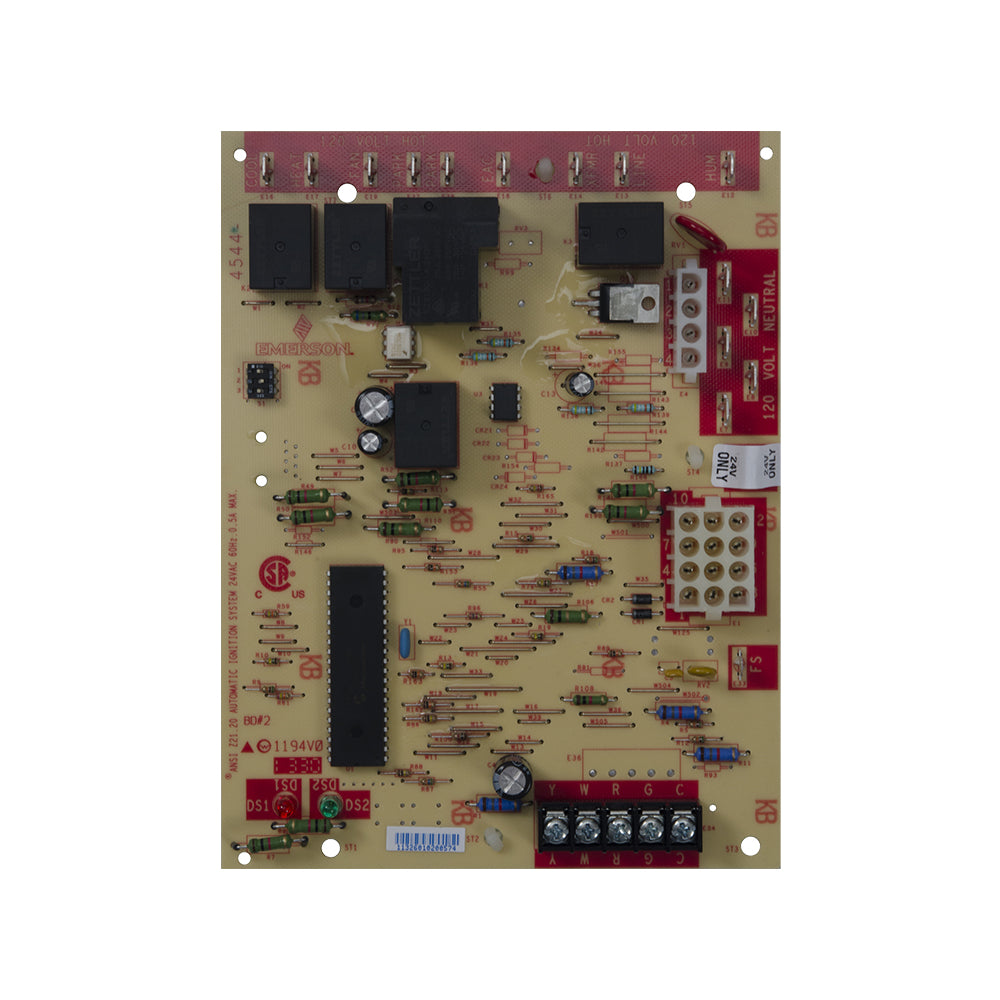

The White-Rodgers 50A66-743 is a replacement module for Lennox and furnace systems. It features diagnostic indicator flash codes, three fan speeds and remote flame sense. Optional humidifier and electronic air cleaner connections are available. This integrated furnace control employs hot surface ignition technology for reliable and efficient gas ignition.
- Replacement module for Lennox
- Replacement module for furnace systems
- Includes diagnostic indicator flash codes
Product Highlights
The White-Rodgers 50A66-743 is designed for Lennox applications, providing reliable and efficient gas ignition. Its integrated design simplifies installation and maintenance.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 50A66-743
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 50A66-743
-
Product Dimensions: 3 x 2 x 1 inches
-
Is Discontinued By Manufacturer: No
-
MPN: 50A66-743
-
Date First Available: June 5, 2010
-
Brand: White-Rodgers
-
Number of Items: 1.0
-
Product Type: ELECTRONIC_COMPONENT
-
Product Group: BISS
-
Description: Nitride Integrated Ignition Control
-
Ignition Trial Time: 4 Seconds
-
Prepurge Period: 15 Seconds
-
Retries: 4 Times
-
Weight: 1.25
-
Dimensional Weight: 1
-
EAN: 0786710548659
-
GTIN: 00786710548659
-
UPC: 786710548659
-
Voltage: 80 VAC
-
Cubic Measurement: 0.0671
-
Height: 6.95
-
Length: 3.8
-
Width: 11.55
-
Type: Furnace Control
-
Country of Origin: MEX
-
Ignition Type: Hot Surface (HSI)
-
Temperature Rating: -40°F to 175°F (-40°C to 79.44°C)
-
Input Voltage: 25V AC 50/60 Hz
-
Control Volts: 120
-
Gas Type: Natural, Manufactured, Mixed, LP Gas
-
Material: Silicon Nitride
-
Mounting Type: Surface
-
Accessory Type: Replacement Integrated Furnace Control
-
Voltage Rating: 25 VAC
-
Amperage Rating: 0.45 A
-
Domestic/Import: Import
-
Manufacturer Name: Emerson Electric
-
Igniter Warm-Up Time: 20 s
-
Humidity Rating: 5 to 93% RH
-
Catalog Number: Y9894
-
Model/Part Number: 50A66-743
-
Base Unit of Measure: Unit(S)
-
Material Description: Type
-
Gross Weight: 0.792 LB
-
SKU: 50A66-743
-
Numeric ID: 2510427
-
California Prop 65 Cancer or Reproductive Harm: Yes
-
California Prop 65 Labeling: On package cancer & reproductive
-
Connection: Thermostat Inputs R,C,W,Y,G
-
Electrical Connection: Speed Taps: Heat, Cool, Fan
-
Family: Integrated Furnace Controls - Direct OEM Replacement
-
HTS: 9032.89.6025
-
Inducer Motor/Blower Motor: PSC/PSC
-
Motor Type: (Blower) PSC
(Inducer) PSC
-
Mounting: Standoff
-
MSDS Required: No
-
Product Depth/Width [in]: 5.74
-
Product Family: Integrated Furnace Controls - Direct OEM Replacement
-
Product Height [in]: 0.75
-
Product Length [in]: 7.56
-
Replacement Type: Direct OEM Replacement
-
Stages: Single Stage
-
Thermostat Inputs: R,C,W,Y,G
-
Warranty Period: 1 Year
-
Whats In The Box: Includes control
instructions
