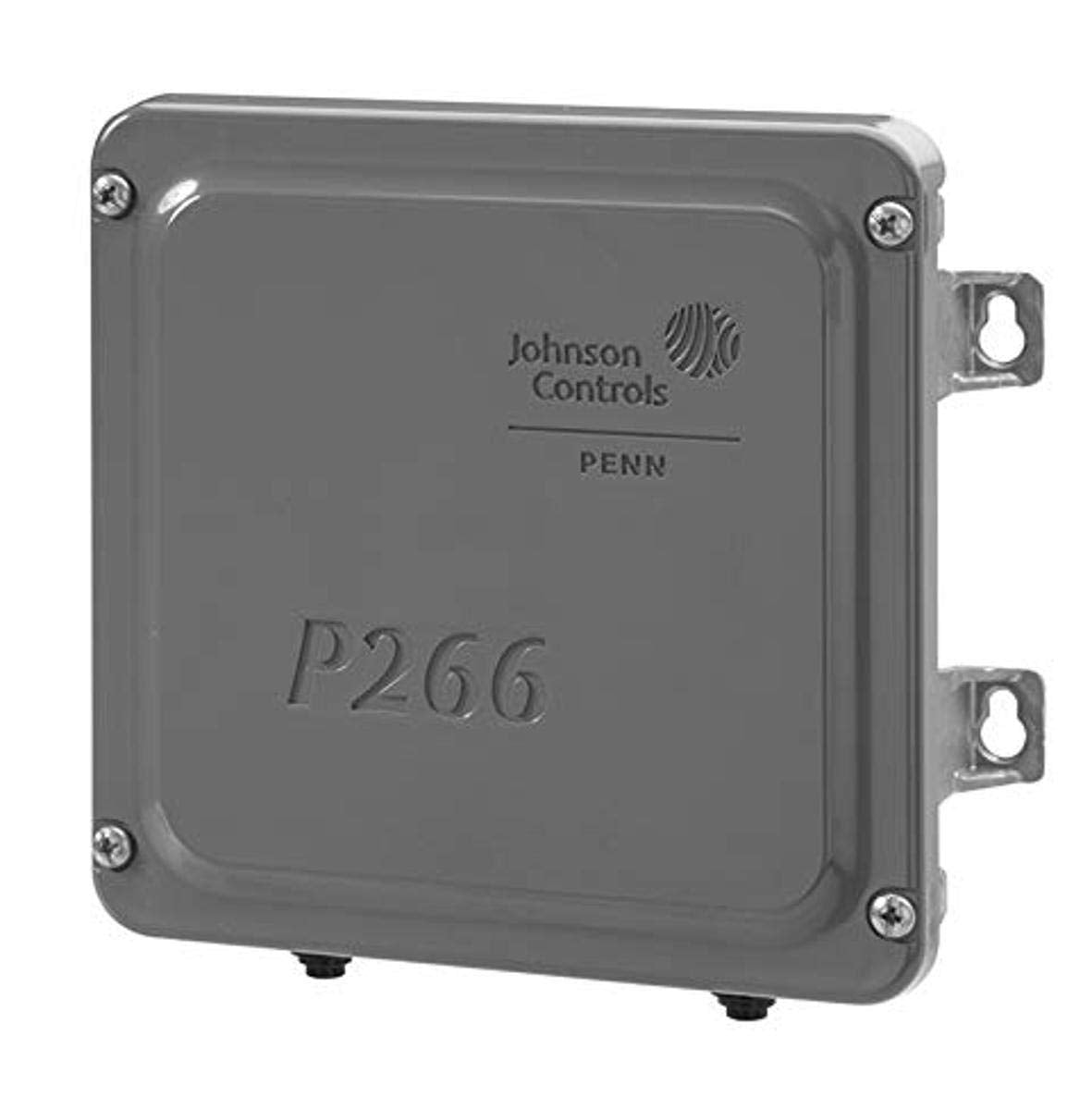

Johnson Controls P266BCA-100C Single-Phase Condenser Fan Speed Control

Product Description

The Johnson Controls P266BCA-100C Single-Phase Condenser Fan Speed Control offers efficient motor speed control. Designed for single-phase motors, it is ideal for refrigeration and air conditioning condensers. This control unit enhances energy efficiency and motor longevity.

• Single-phase motor control
• Suitable for refrigeration and air conditioning
• Energy-efficient and durable

Product Highlights

The P266BCA-100C is a reliable fan speed control from Johnson Controls. It replaces P66 and P215 Series, offering better flexibility and efficiency. It includes features like wide pressure throttling, auxiliary fan output, and low-speed capacitor mode.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: P266BCA-100C
• Weight: 2.4 lbs
• UPC: 662011173373
• Shipping Dimensions: 7.5 x 6.9 x 4.8 inches

Technical Specifications

• Sensor Inputs: 1 or 2
• Voltage: 440/575V
• Output Current: 4 amps
• Ambient Temperature Range: -40 to 60 degrees Celsius
• Hard Start Timing: 2 sec
• Control Voltage: 460/575
• Enclosure: NEMA 3R, IP54
• Country of Origin: Mexico
