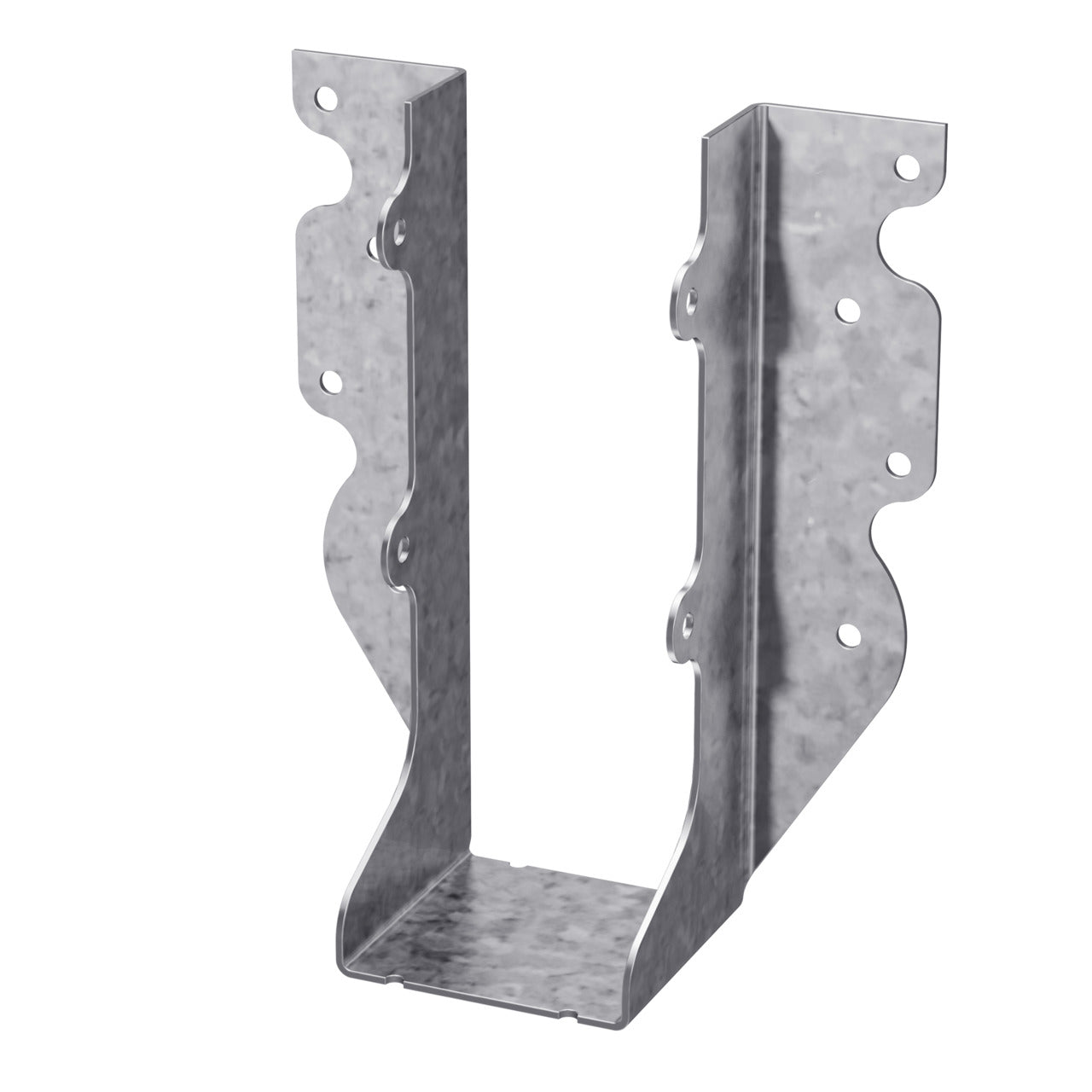

Simpson Strong-Tie U26R U Series 2 x 5-5/8 x 2 16 ga Standard Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie U26R is a standard U hanger designed for reliable joist to header installations. This product offers versatility with various fastener selections and has undergone testing to ensure allowable loads.

• Designed for easy installation of joists to headers
• Tested for high allowable loads, enhancing structural integrity
• Constructed with durable steel and finished with G90 galvanized coating

Product Highlights

This standard face-mount joist hanger supports various applications with flexibility in installation.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: U26R

Technical Specifications

• Gauge: 16
• Material: Steel
• Finish: G90 Galvanized
• Fastener Size: (8) 0.162 x 3-1/2 in (Header), (4) 0.148 x 1-1/2 in (Joist)
• Load Specifications: Uplift (DF/SP) 535 lb, Floor (100) 1150 lb, Snow (115) 1305 lb, Roof (125) 1410 lb; Uplift (SPF/HF) 460 lb, Floor (100) 990 lb, Snow (115) 1120 lb, Roof (125) 1215 lb
