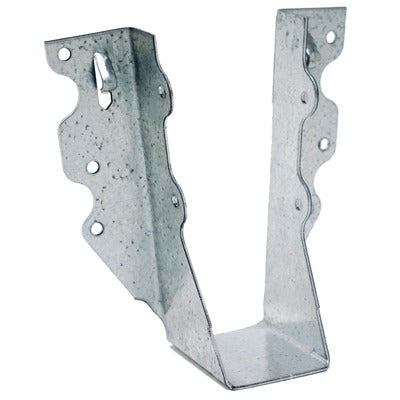

Simpson Strong Tie U26R Face Mount U Hanger 2x6

Product Description

The SIMPSON STRONG TIE U26R is a face mount U-style joist hanger built from 16-gauge galvanized steel. It is designed to seat 2-inch x 6-inch dimensional lumber joists against a header in standard light-frame wood construction. The galvanized finish provides corrosion resistance for both interior and exterior framing applications. Integrated speed prongs are formed into the hanger body to register the connector precisely against the header face during installation, reducing layout time and keeping the joist at the correct elevation before nailing. Licensed framers, general contractors, and structural carpenters are the typical installers.

The U26R is suited for residential and light commercial framing where 2x6 lumber is used for floor joists, deck joists, or ceiling joists connecting to a header or beam face. Its face-mount design makes it appropriate for ledger-board attachments, rim-joist connections, and similar structural framing details. Both indoor and outdoor installations are supported by the galvanized coating. Sold in packages of 50 units, this hanger suits production framing and repetitive structural work.

Key Features

• 16-gauge steel construction for structural rigidity in load-bearing framing connections
• Galvanized finish resists corrosion in interior and exterior environments
• Integrated speed prongs self-position the hanger flush against the header face for faster, accurate nailing
• Accommodates 2-inch x 6-inch dimensional lumber joists
• Compatible with 10D or 16D common nails in the header and 10D x 1.5-inch nails for the joist seat
• Sold 50 units per package, supporting production framing quantities

Compatibility

Designed as an OEM-style structural connector for 2-inch x 6-inch dimensional lumber in standard light-frame wood framing applications.

Installation Notes

Installation is typically performed by licensed carpenters or framers working under applicable building codes, including IRC or IBC provisions for structural connectors. Fasten the hanger to the header using 10D or 16D common nails and secure the joist seat with 10D x 1.5-inch nails as specified. Use all nail holes provided in the hanger to achieve the rated load capacity. Do not substitute fastener types or sizes, as substitutions may reduce the structural capacity of the connection.

Technical Specifications

• Material: 16-gauge galvanized steel
• Joist Size: 2 inches x 6 inches
• Connector Type: Face mount U hanger
• Finish: Galvanized
• Recommended Header Fasteners: 10D or 16D common nails
• Recommended Joist Fasteners: 10D x 1.5-inch nails
• Package Quantity: 50 each
• Weight: 22 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: U26R
