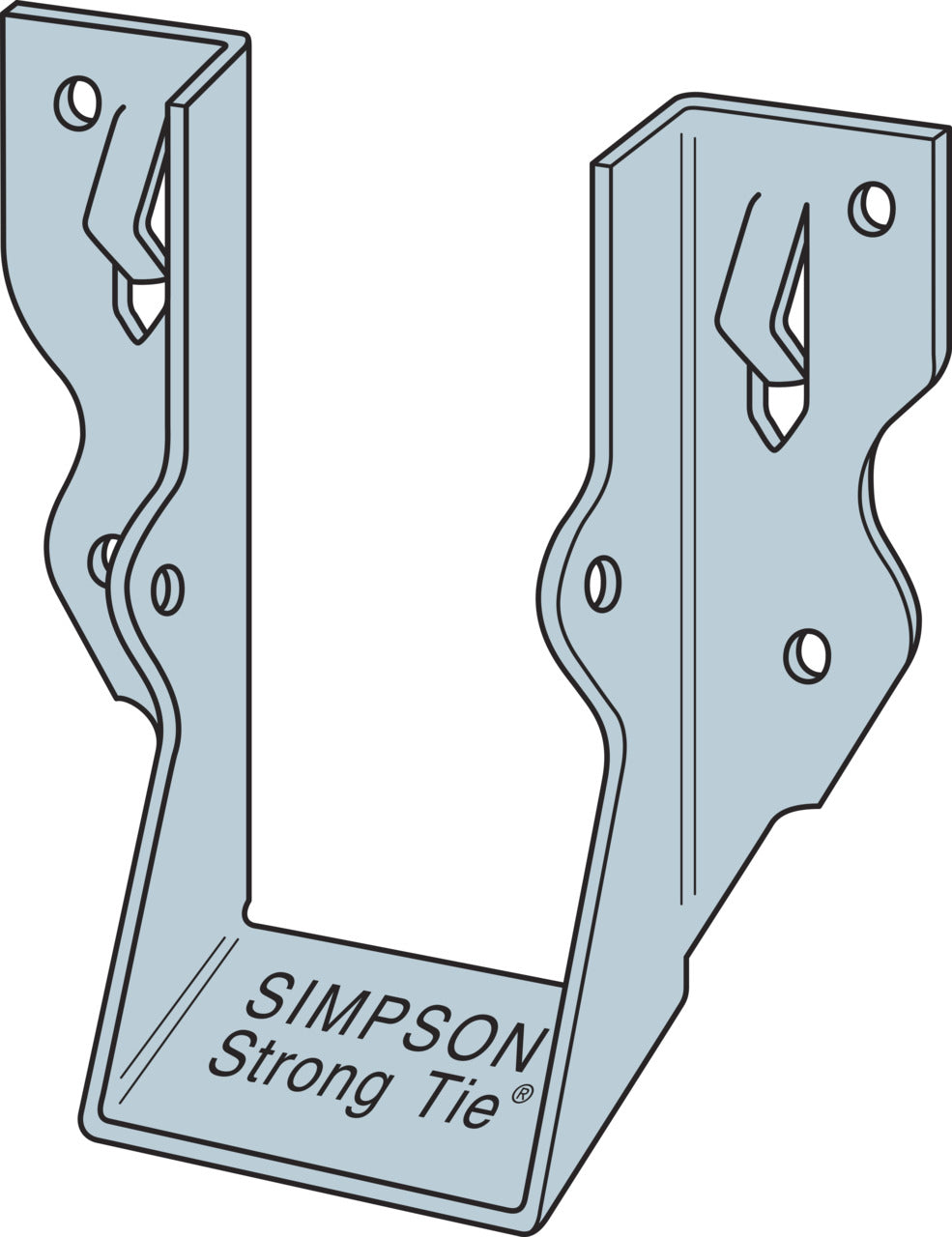

Simpson Strong-Tie U24 U Series 1-1/2 x 1-9/16 x 3-1/8 16 ga Standard Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie U24 is a standard U hanger designed for flexibility in joist to header installations. It allows for versatile fastener selection and has been tested for allowable loads, making it a reliable choice for various framing needs.

• Made from durable steel with G90 galvanized finish
• Tested allowable loads ensure structural integrity
• Compatible with multiple fastener sizes for ease of installation

Product Highlights

Use the U24 for secure and reliable connections in framing applications.

Product Information

Standard Information

• Manufacturer: Simpson Strong-Tie
• Part Number: 137U24

Technical Specifications

• Gauge: 16
• Material: Steel
• Finish: G90 Galvanized
• Fastener Size: (4) 0.162 x 3-1/2 inches (Header), (2) 0.148 x 1-1/2 inches (Joist)
• DF/SP Allowable Loads: Uplift (160) 240 lb, Floor (100) 575 lb, Snow (115) 650 lb, Roof (125) 705 lb
• SPF/HF Allowable Loads: Uplift (160) 205 lb, Floor (100) 495 lb, Snow (115) 560 lb, Roof (125) 605 lb
