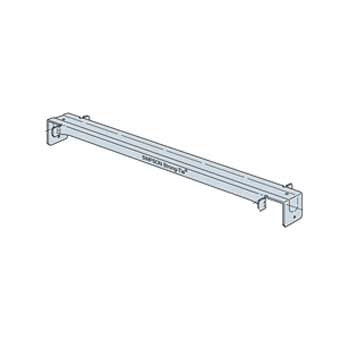

Simpson Strong-Tie TSBR224 Truss Spacer-Restraint 25-1/2 x 1-3/4 x 1

Product Description

The Simpson Strong-Tie TSBR224 is a truss spacer-restraint designed for wood and cold-formed steel framing. This product improves safety and quality in construction while complying with WTCA/TPI recommendations.

• Reduces time spent on installation.
• Eliminates the need for traditional wood bracing.
• Captures truss spacing accurately and maintains vertical alignment.

Product Highlights

The TSBR224 simplifies truss installation by allowing for quick adjustments without measuring. It holds trusses securely in place, which reduces labor and material costs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: TSBR224

Technical Specifications

• Allowable Loads (DF/SP): Compression 500 pounds, Tension 180 pounds
• Allowable Loads (SPF/HF): Compression 430 pounds, Tension 155 pounds
• Gauge: 22
• Finish: G90 Galvanized
• Fastener Size: (2) 0.148 x 3 inches
• Nominal Product Depth: 0 inches
