Simpson Strong-Tie TNT25214HC25 Titen Turbo hex head concrete anchor screw 1/4 in x 2-1/4 in (25 pack)

SIMPSON STRONG-TIE
Brand: SIMPSON STRONG-TIE
SKU: TNT25214HC25
Availability: In Stock

Ships same day if ordered by 12 pm
$24.39
$24.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

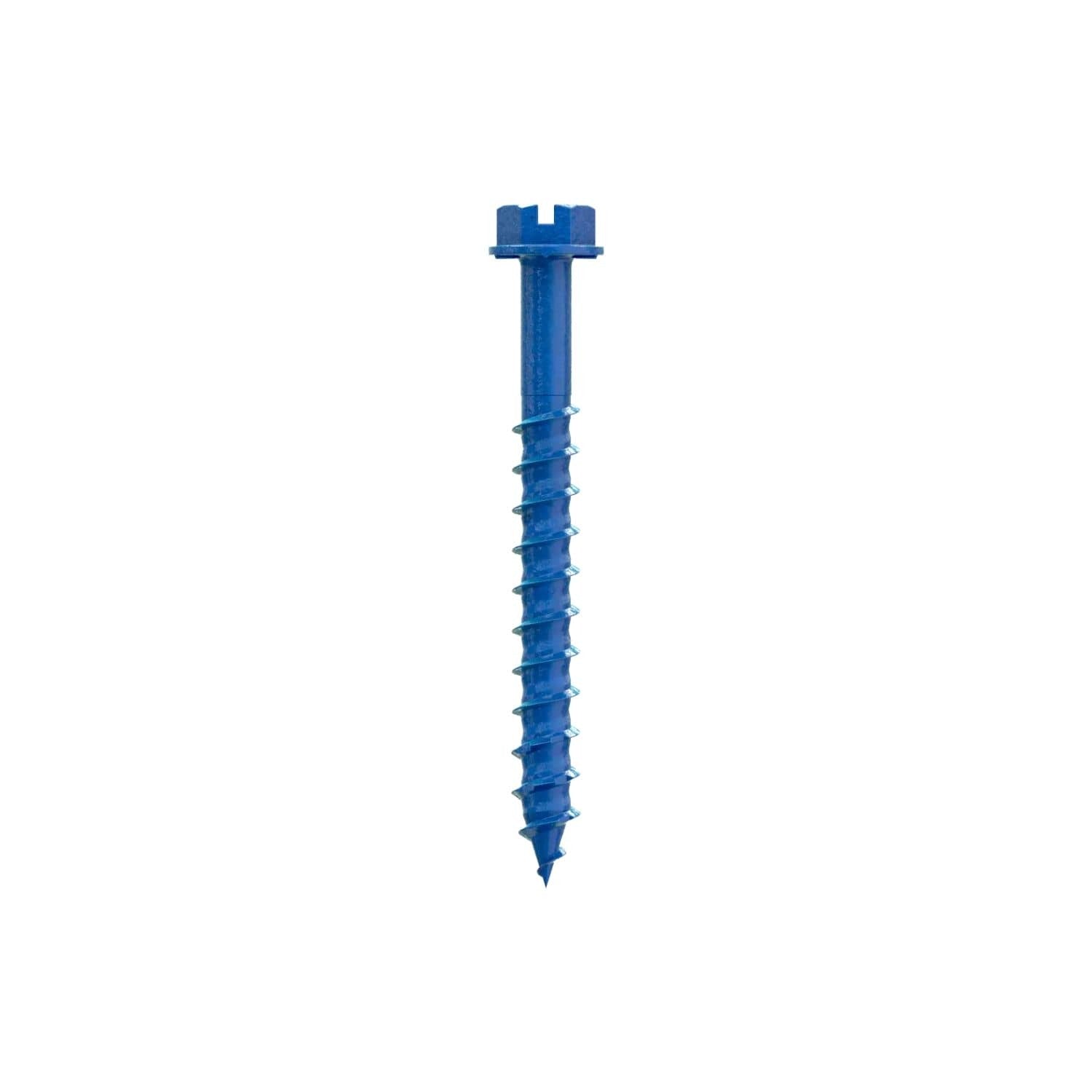

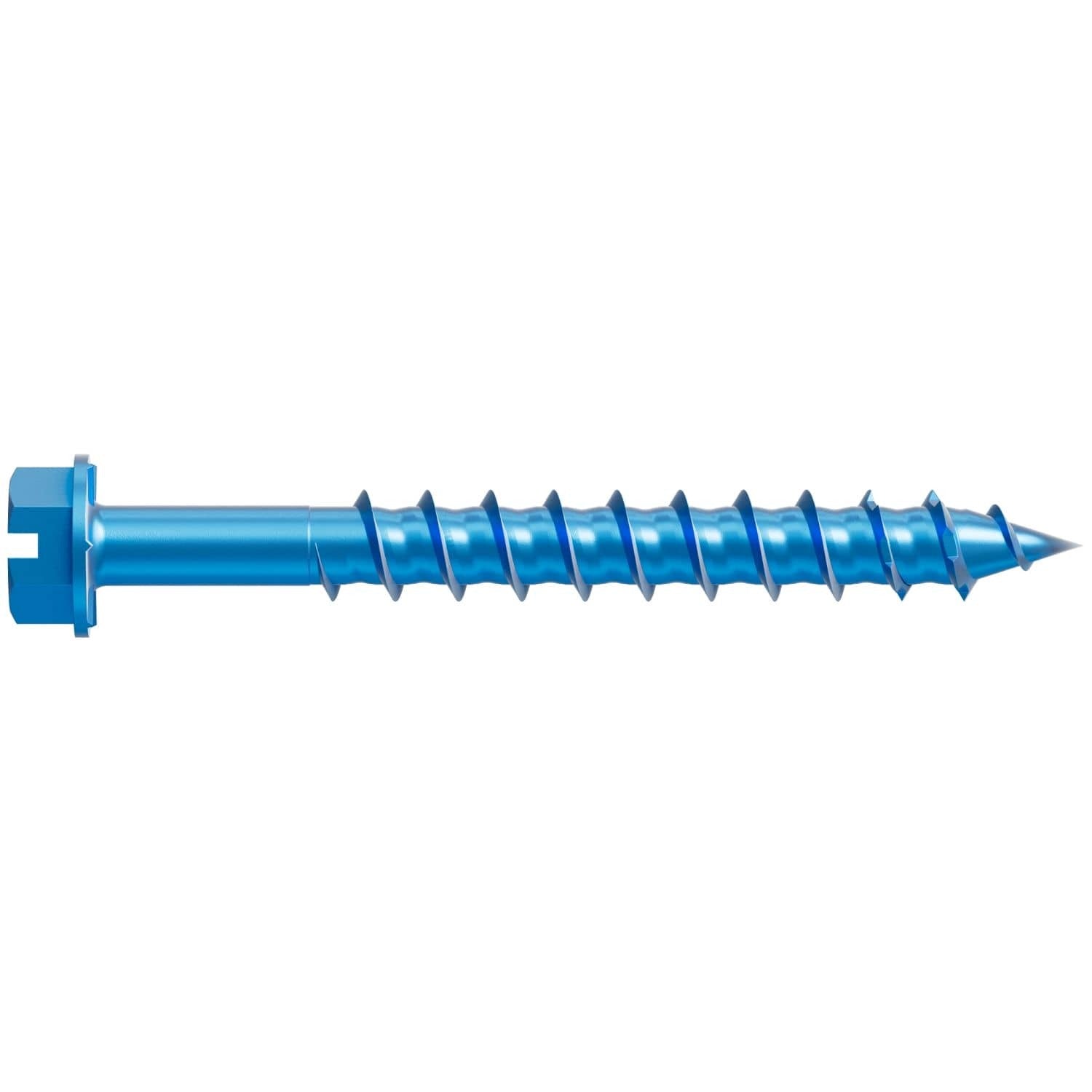

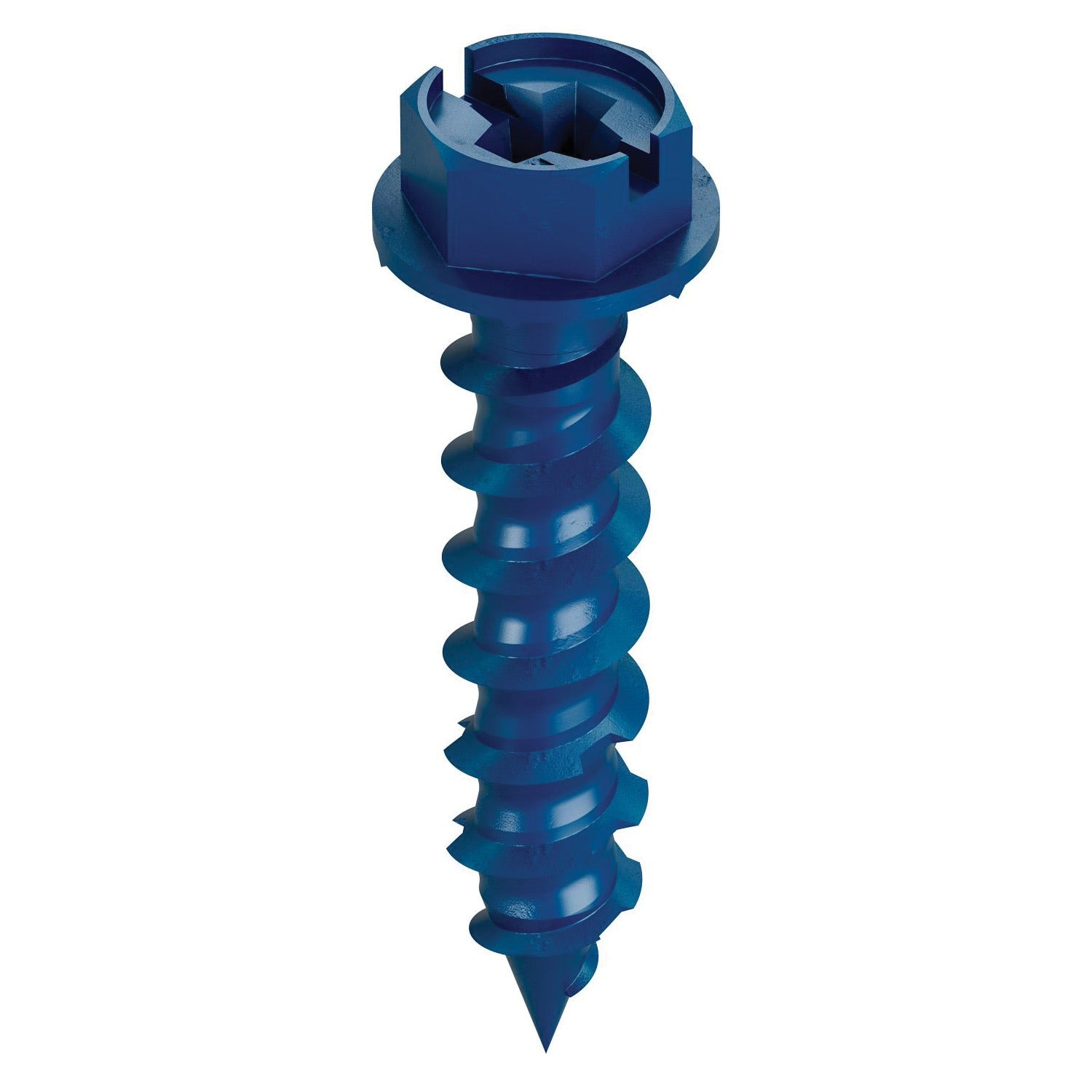

Simpson Strong-Tie TNT25214HC25 is a Titen Turbo hex-head concrete anchor screw sized 1/4 in x 2-1/4 in supplied as a 25-pack for anchoring into concrete and masonry. The anchor uses a torque reduction channel and reverse thread to reduce driving torque and trap drilling dust, and it has a serrated leading edge and pointed tip for easier starts. It is carbon steel with a zinc plated baked-on ceramic coating and installs with a cordless drill or impact driver.

  • Torque reduction channel and reverse thread reduce driving torque and help prevent binding, stripping, and snapping.
  • Serrated leading edge and pointed tip provide easier starts in concrete and wood-to-concrete applications.
  • Carbon steel construction with zinc plated baked-on ceramic coating; installs with a standard 3/16 in drill bit and cordless drill or impact driver.

Product Highlights

1/4 in x 2-1/4 in hex-head Titen Turbo concrete and masonry screw; pack of 25; code listed to ICC-ES AC193 for installation without cleaning predrilled holes.

Product Information

Standard Information

  • Brand: SIMPSON STRONG-TIE
  • Manufacturer Part Number: TNT25214HC25
  • Country of Origin: Unknown
Technical Specifications
Brand
Simpson Strong-Tie
MPN
TNT25214HC25
Model
Titen Turbo
Product Type
Concrete and masonry screw anchor
Diameter
1/4 in
Length
2-1/4 in
Material
Carbon steel
Finish/Coating
Zinc plated with baked-on ceramic coating
Head Type
Hex head (uses hex wrench/socket or hex driver)
Drive Type
Hex / external hex (note: some listings reference a 6-lobe bit included for certain packages — package dependent)
Drill Bit Diameter
3/16 in
Minimum Embedment Depth
1-3/4 in
Minimum Concrete Thickness
3-1/4 in
Shear Strength
720 lb (likely allowable shear per fastener; keep but verify with manufacturer tables)
Tensile Strength
125,000 psi (appears to be a material tensile strength value; retains but low confidence for being a product-level spec)
Application
Concrete and masonry anchoring; wood-to-concrete and wood-to-wood fastening
Quantity
25
Included Components
Screws (25); 6-lobe drill bit may be included in some package variants (package dependent)
Code Listing / Standard
ICC-ES AC193 (IAPMO UES ER-712)
UPC
707392011187
