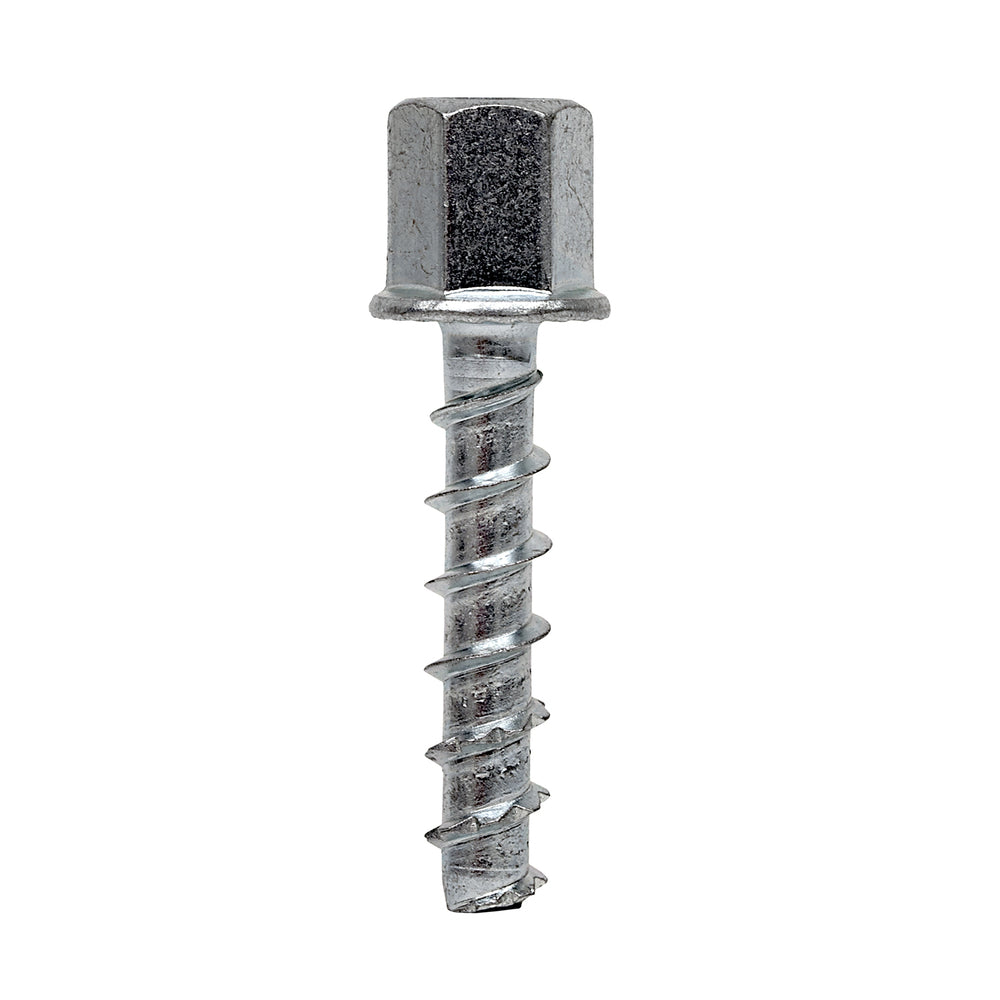

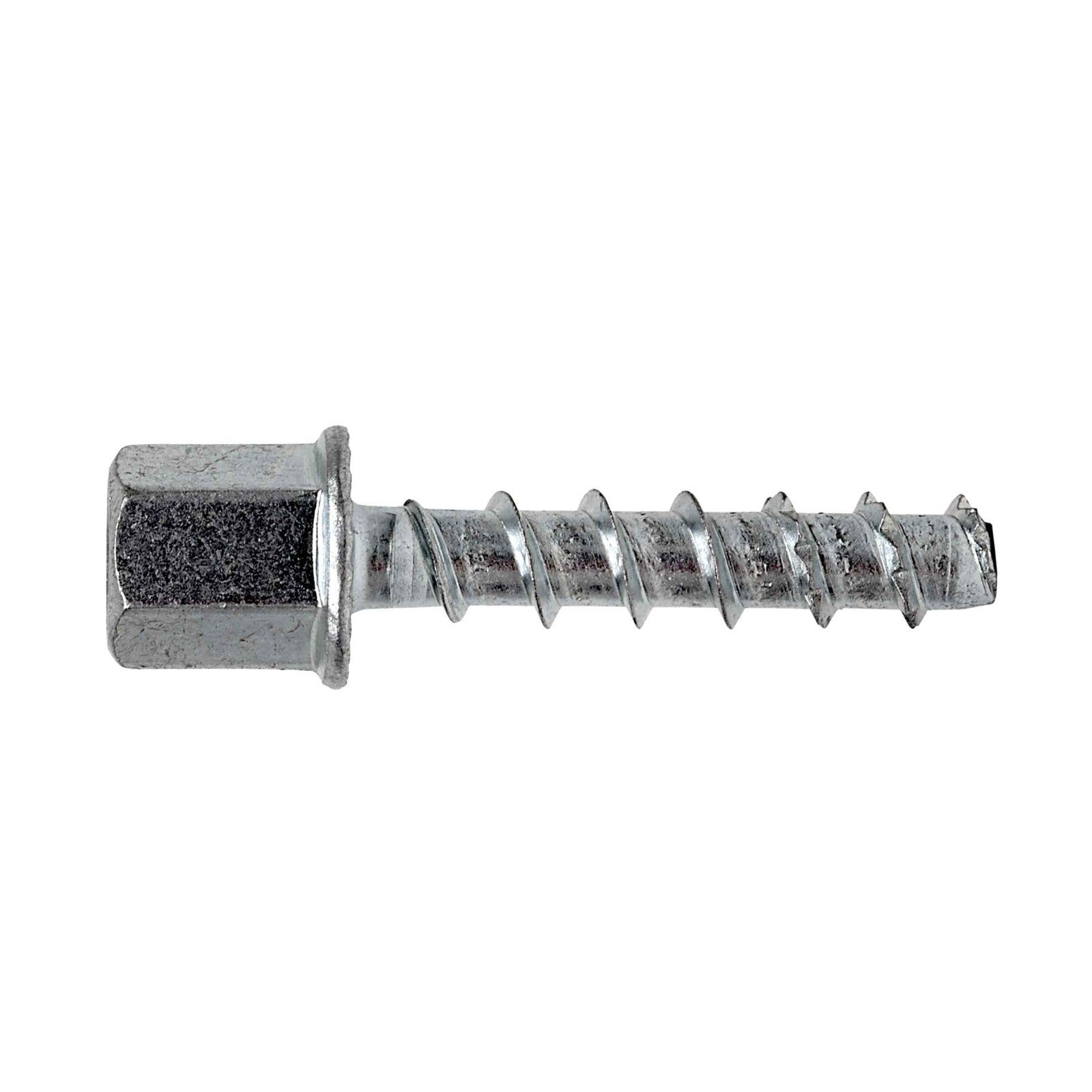

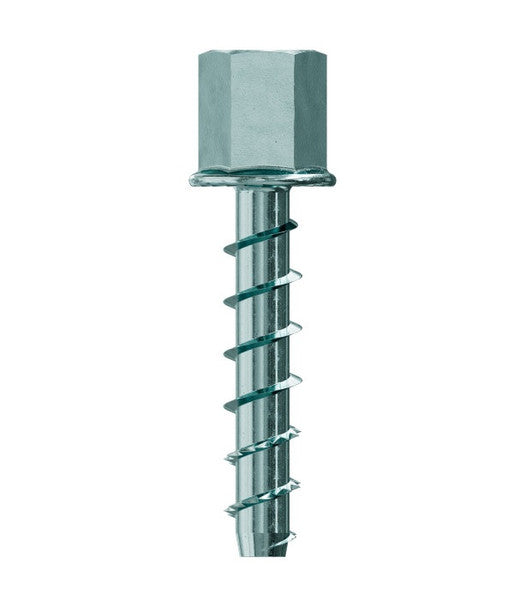

Simpson Strong-Tie thdb37158rh Titen Hd 1/4 in. x 1-5/8 in. Threaded Rod Hanger for 3/8-in. Rod (50-Qty)

Product Description

The SIMPSON STRONG-TIE THDB37158RH Titen HD threaded rod hanger is a high-strength screw anchor designed to suspend threaded rod from concrete slabs, beams, or concrete over metal. It offers low installation torque with no secondary setting and has been tested for performance in cracked and uncracked concrete, even in seismic loading conditions.

• Thread design undercuts to efficiently transfer the load to the base material.
• Drill bit size: 1/4-in

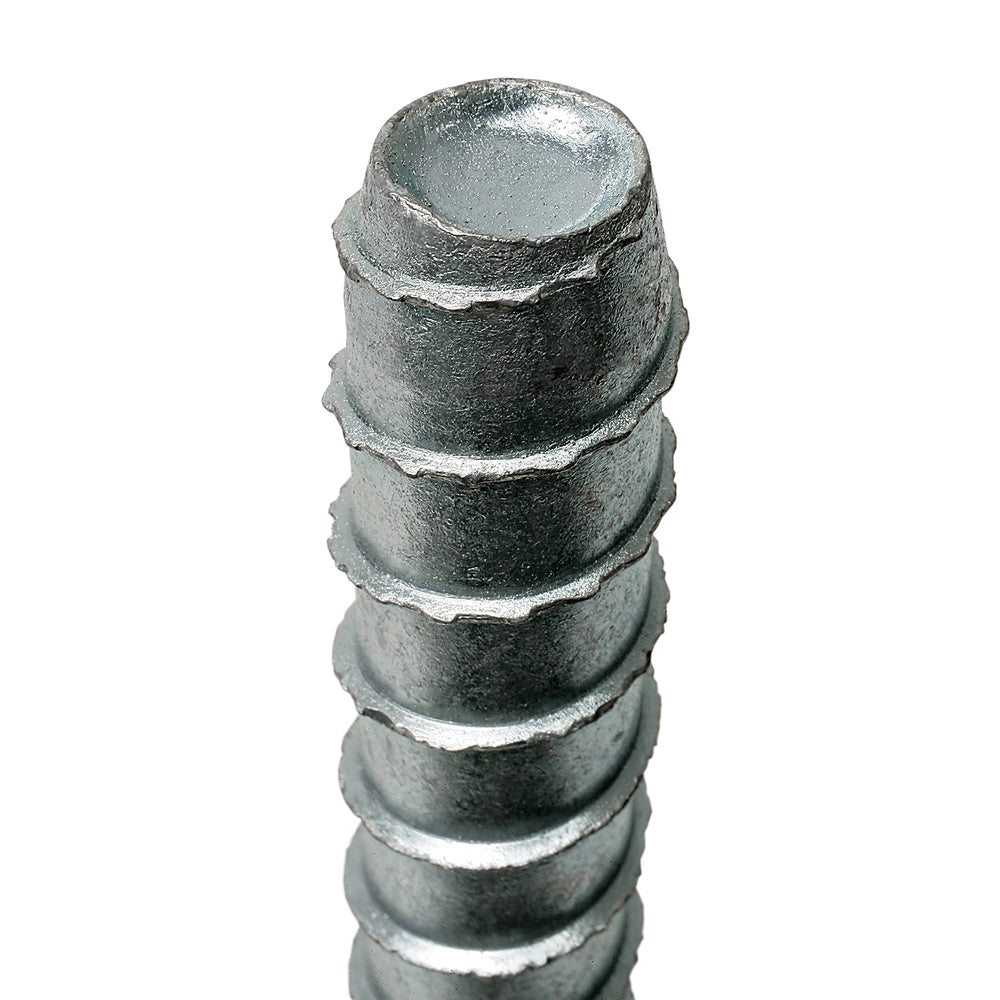

• Serrated cutting teeth and thread design enable quick and easy installation.

Product Highlights

Designed for suspending threaded rods in various applications, this anchor ensures secure engagement in concrete and steel with self-tapping threads and a corrosion-resistant zinc finish.

Product Information

Standard Information

• Brand: SIMPSON STRONG-TIE
• Manufacturer Part Number: THDB37158RH

Technical Specifications

• Material: Carbon Steel
• Length [In]: 1.625
• Diameter (In): 0.25
• Fastener Type: Mechanical Anchor
• Indoor / Outdoor: Indoor
• Connection Design: Concrete & Masonry
• Fastener Category: Anchors
• Fastener Material: Carbon Steel
• Fastener Color / Finish: None
• Diameter: 3/8"
• Length: 1-5/8"
• Drill Bit Size: 1/4"
• Accepts Rod Size: 3/8"
• Drive Type: 1/2" Hex

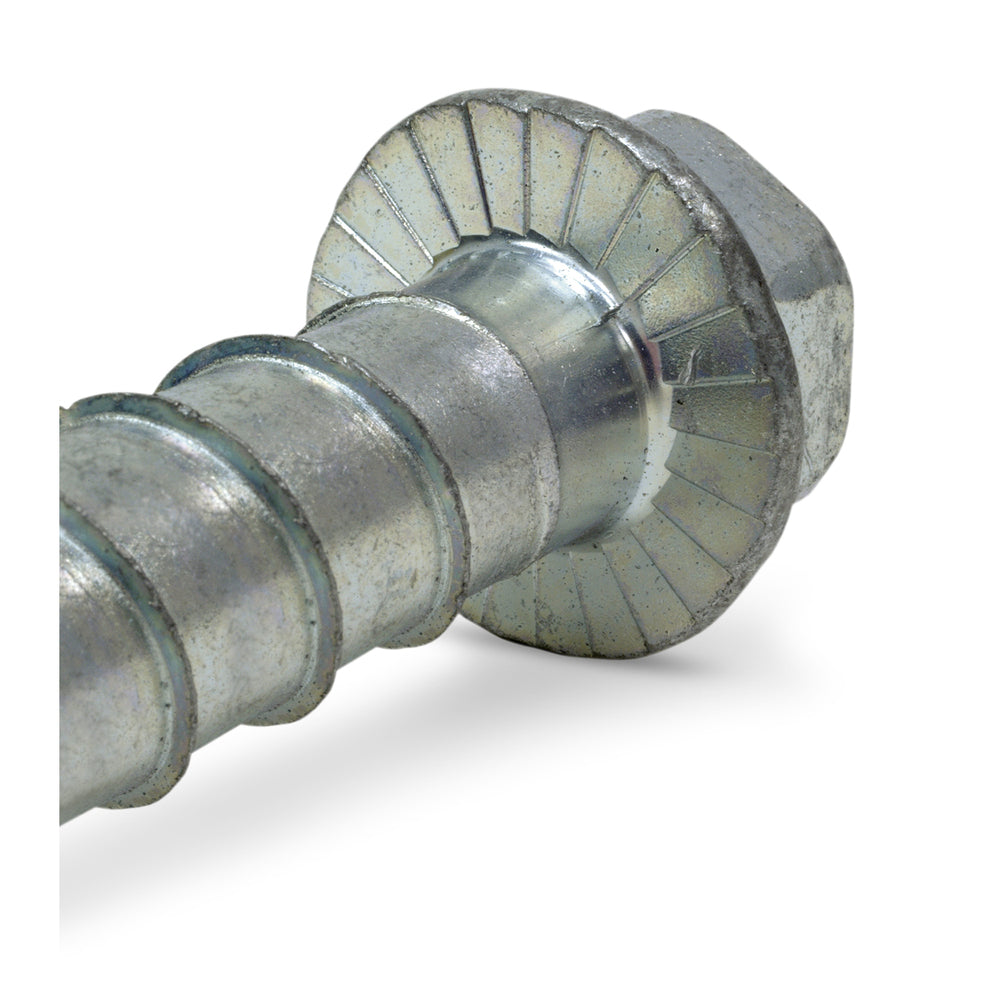

• Head Type: Hex Head
• Finish: Zinc
• Manufacturer Name: Simpson Strong-Tie
• Quantity: 50
• Model No.: THDB37158RH
• Coating/Material: Zinc Plated Carbon Steel
• Size (in.): 1/4 x 1 5/8
• Rod Dia. (in.): 3/8
• Wrench Size (in.): 1/2
• Min. Embedment (in.): 1 5/8
• Box Qty.: 50
• Anchor Length (in.): 1.625
• Anchor Diameter (in.): 1/4"
• Use: Use in dry interior environments only
• Code listed: Code listed for cracked and uncracked concrete applications under the 2015, 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713
• FM listed: FM listed
