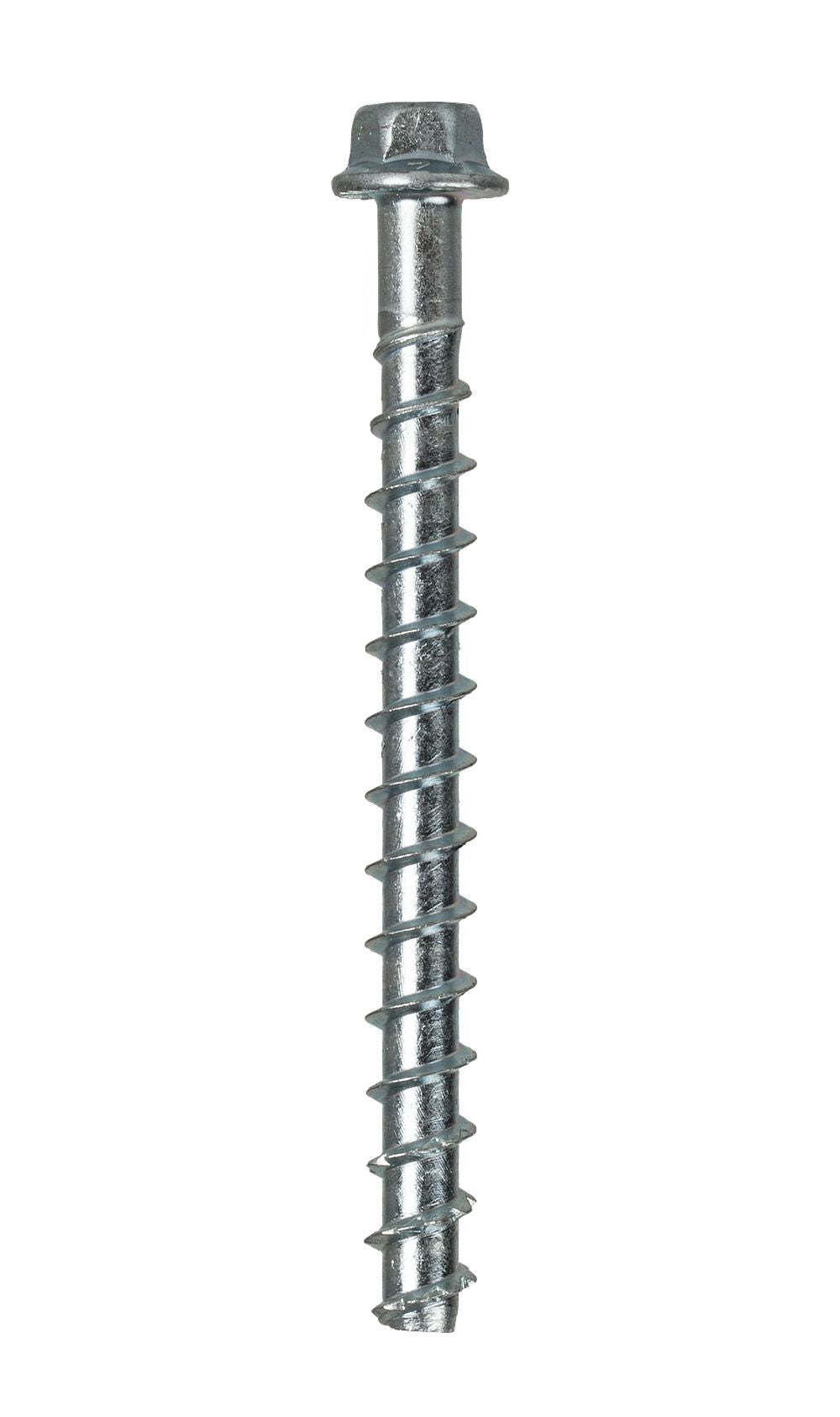

Simpson Strong-Tie THD50300H Titen HD 1/2In x 3In Heavy Duty Screw Anchor (25-Qty)

Product Description

The Simpson Strong-Tie THD50300H Titen HD anchor is a patented, high-strength screw anchor designed for concrete and masonry. Optimized for performance in cracked and uncracked concrete, it excels under static and seismic loading. Its self-undercutting, non-expansion characteristics make it suitable for structural applications, even with reduced edge distances. Recommended for dry, interior, non-corrosive environments or temporary outdoor use.

• Qualified for static and seismic loading conditions

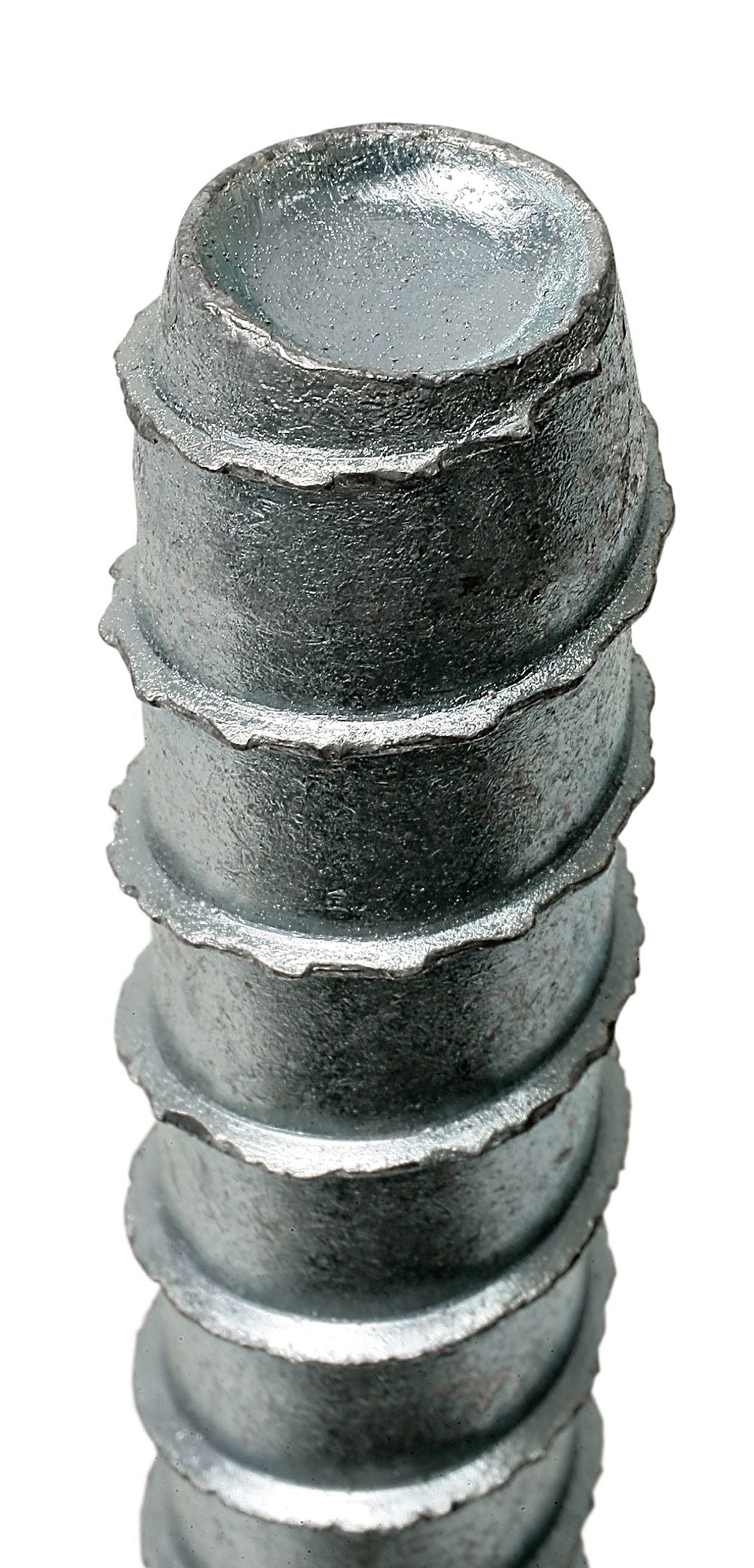

• Thread design undercuts to efficiently transfer the load to the base material
• No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

Product Highlights

The Titen HD anchor offers high strength and easy installation for concrete and masonry applications, performing well under various loading conditions.

Product Information

Standard Information

• Brand: SIMPSON STRONG-TIE
• Manufacturer Part Number: THD50300H
• Country of Origin: United States

Technical Specifications

• Model / MPN: THD50300H
• Manufacturer: Simpson Strong-Tie
• Brand: Simpson Strong-Tie
• Part ID / MPN: THD50300H
• MPN: THD50300H
• Pkg Quantity: 25.0
• Finish: Zinc
• Diameter: 1/2 in
• Material: Carbon Steel
• Overall Length: 3 in
• Head Type: Hex Washer Head
• Drill Size: 1/2 in
• Applicable Materials: Concrete/Masonry
• Head Size: 3/4 in
• Shear Strength: 7455 lb
• Tensile Strength: 20130 lb
• Country of Origin (subject to change): United States
• Wrench Size (in.): 3/4
• Length: 3 in
