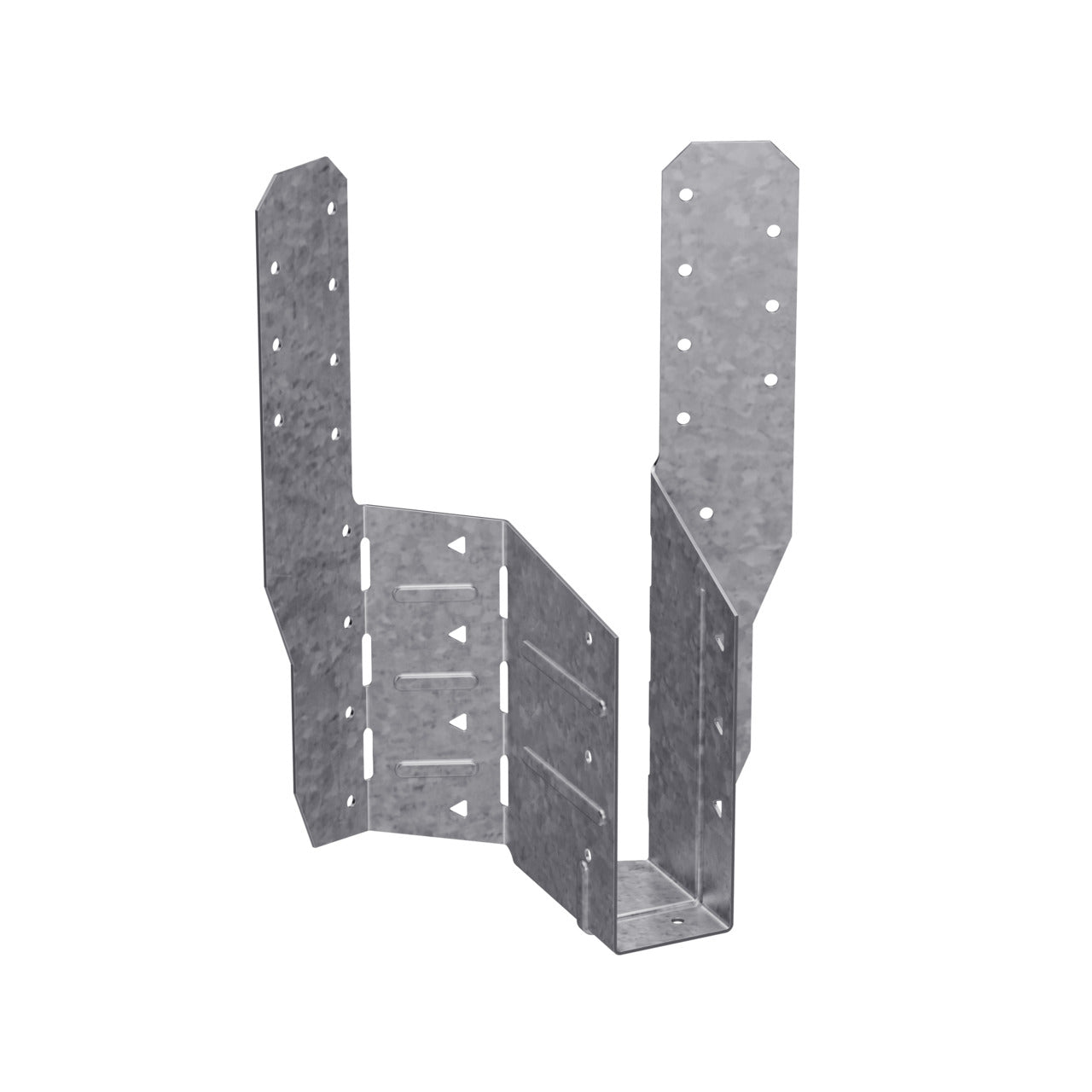

Simpson Strong-Tie THASR29 Right Adjustable Truss Hanger 25/CT

Product Description

The Simpson Strong-Tie THASR29 is a right adjustable truss hanger designed to provide reliable support for roof and floor trusses. This model is easy to install and allows for field-skewing to meet specific project needs.

• Height adjustable for customizable installation.
• Field skewable from twenty-two and a half to seventy-five degrees.
• Constructed from sturdy sixteen-gauge material for durability.

Product Highlights

Ideal for both single and double-ply truss configurations, this hanger simplifies the installation process.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: THASR29

Technical Specifications

• Product Depth: Not applicable
• Finish: G90 Galvanized
• Gauge: Sixteen
• Fastener Size: (4) 0.148 x 3 inch Top/(8) 0.148 x 3 inch Face (Carrying Member), (4) 0.148 x 1.5 inch (Carried Member)
• Allowable Loads: Uplift 385 lb, Floor 1485 lb, Roof 1485 lb (for DF/SP)
• Applications: Appropriate for various framing scenarios where truss support is required.
