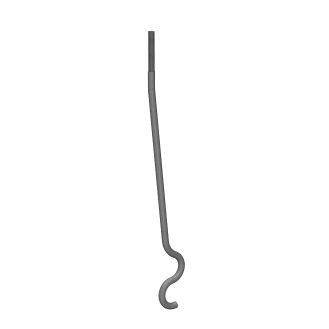

Simpson Strong-Tie SSTB20LHDG SSTB Series 5/8 x 21-5/8 Hot Dipped Galvanized Steel Anchor Bolt

Product Description

The Simpson Strong-Tie SSTB20LHDG is an anchor bolt crafted from hot-dipped galvanized steel, designed for holdowns and strong-wall shearwalls. Its design ensures maximum load capacity when used in various applications. The SSTB anchor bolt meets code requirements from the ICC-ES according to the 2012, 2015, and 2018 International Building Codes. This product has identifiable markings on the bolt head indicating the embedment angle and model, enhancing usability and installation accuracy.

• Hot-dipped galvanized finish for corrosion resistance
• Rolled thread enhances tensile capacity and strength
• Offset angle reduces side bursting while providing optimal concrete cover

Product Highlights

This anchor bolt is ideal for use in reinforced concrete structures, ensuring strong and reliable connections.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• UPC: 707392992509

Technical Specifications

• Finish: Hot Dipped Galvanized
• Diameter: 5/8 inches
• Material: Hot-Dip Galvanized Steel
• Nominal Length: 21-5/8 inches
• Minimum Embedment: 16-5/8 inches
