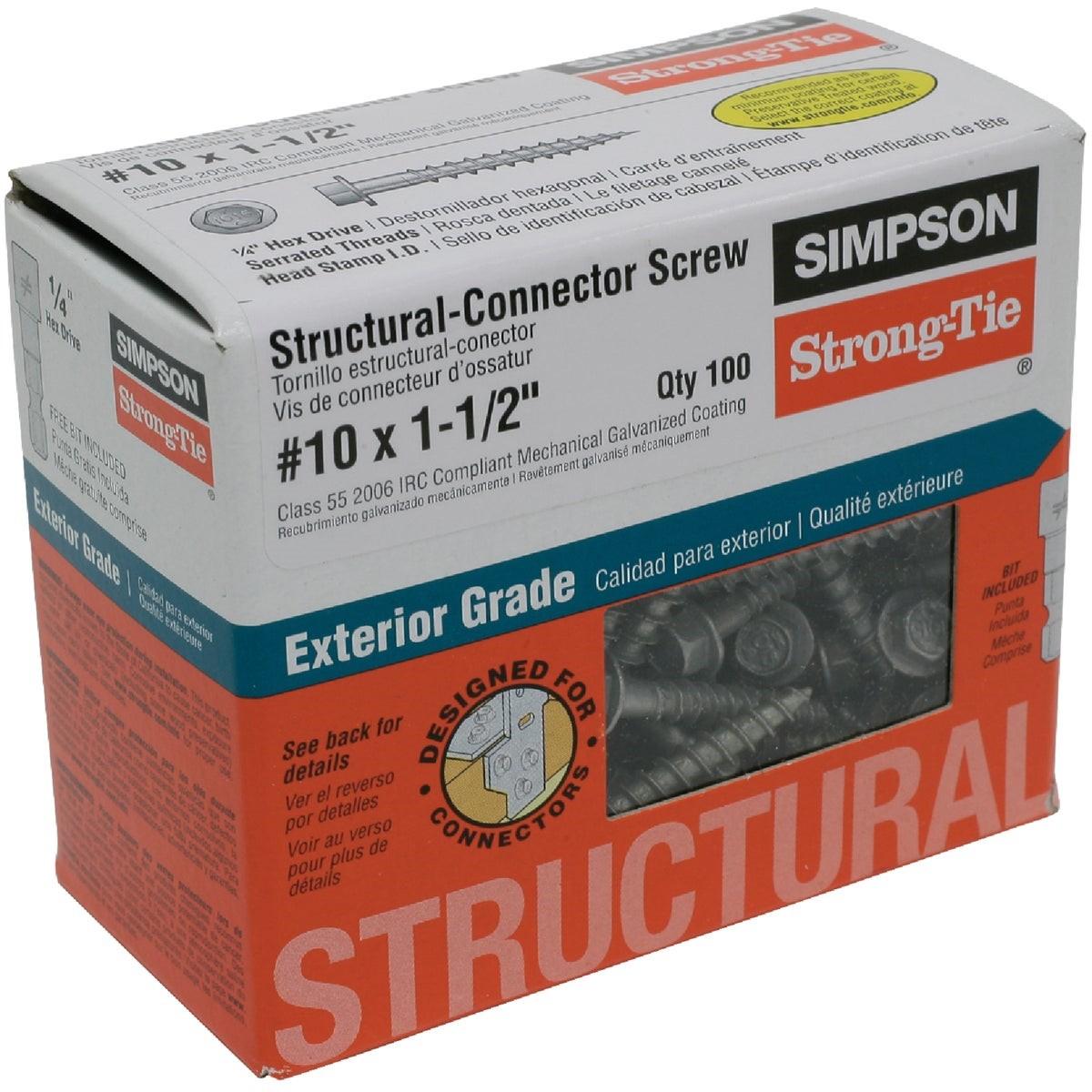

Simpson Strong-tie SD10112R100 Structural Screw 100ct

Product Description

The Simpson Strong-Tie SD10112R100 is a No. 10 x 1.5-inch hex-head structural connector screw sold in a 100-count box. Engineered specifically for use with Simpson Strong-Tie connectors, the screw features an optimized shank diameter sized to fit standard fastener holes in Simpson connector hardware. The 1/4-inch hex drive head virtually eliminates cam-out and reduces the risk of head stripping during installation. Patented serrated threads reduce drive torque for improved driveability, and the sharp point enables fast starts without pre-drilling in most applications. A mechanically galvanized coating provides corrosion resistance for interior and most exterior applications. A driver bit is included.

These screws are intended for use by carpenters, framers, and structural contractors installing Simpson Strong-Tie metal connectors including joist hangers, post caps, hold-downs, and similar hardware. Suitable for residential and light commercial framing applications. The mechanically galvanized coating makes them appropriate for most exterior exposures, though installers should verify coating suitability for pressure-treated lumber grades and highly corrosive environments per project specifications.

Key Features

• Optimized shank designed to fit fastener holes in Simpson Strong-Tie connectors
• 1/4-inch hex drive eliminates cam-out and reduces head stripping
• Patented serrated threads reduce drive torque for faster, easier installation
• Sharp point enables fast starts without pre-drilling in most applications
• Mechanically galvanized coating suitable for interior and most exterior applications
• Driver bit included; head identification marking for easy field inspection

Compatibility

Designed for use with Simpson Strong-Tie structural connectors with standard fastener hole patterns. Suitable for interior and most exterior structural connector installations per manufacturer guidelines.

Installation Notes

Installation is performed by carpenters, framers, or structural contractors using a 1/4-inch hex driver bit, which is included with the box. Drive screws with an impact driver or drill set to an appropriate clutch setting to avoid overdriving. Verify connector placement and lumber grade compatibility before fastening. Consult applicable building codes and Simpson Strong-Tie load tables for required fastener counts per connection type.

Technical Specifications

• Size: No. 10 x 1.5 inches
• Drive Type: 1/4-inch hex
• Coating: Mechanically galvanized
• Application: Interior and most exterior
• Quantity per Box: 100
• Box Weight: 1.06 pounds
• UPC: 00707392461203

Standard Information

• Brand: Simpson Strong-Tie
• Manufacturer Part Number: SD10112R100
