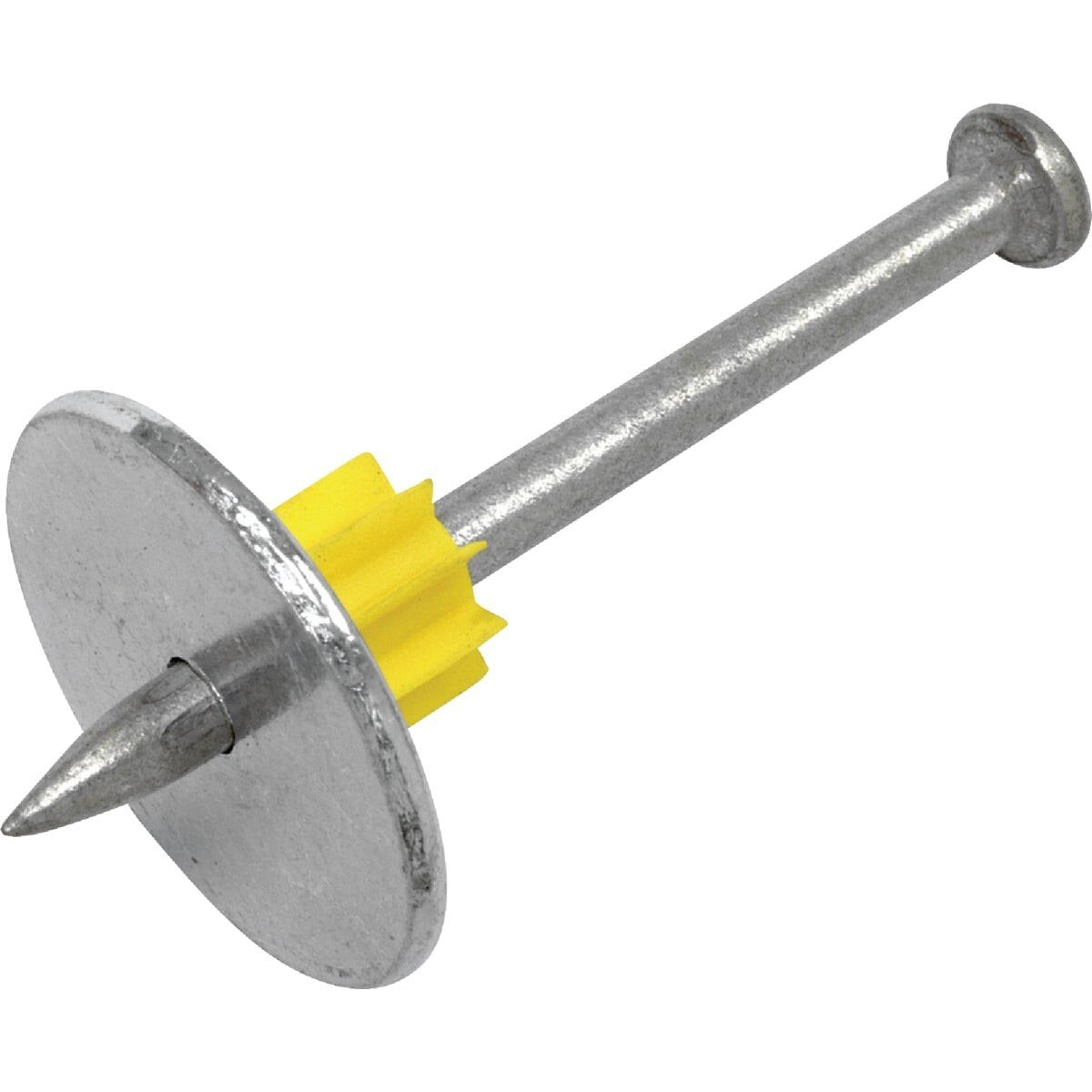

Simpson Strong-tie PDPAWL-250 Fastening Pin Washer 100-pack

Product Description

The SIMPSON STRONG-TIE PDPAWL-250 is a 2.5-inch powder-actuated fastening pin with washer, designed for use with Simpson Strong-Tie powder-actuated tools. Manufactured to tight tolerances, the pin features a 0.157-inch shank diameter that delivers greater compressive strength in demanding structural applications. Each pin includes a 1-inch metal washer. Sold in a 100-pack, this fastener is used by ironworkers, steel framers, and contractors working on structural connections in both commercial and industrial construction environments.

The PDPAWL-250 is rated for use in A36 and A572 Grade 50 structural steel. A red strip load is recommended for this application. The 2.5-inch length makes it suitable for fastening track, plate, and framing components directly to structural steel substrates where drilled or welded connections are not practical or efficient.

Key Features

• 2.5-inch pin length for structural steel fastening applications
• 0.157-inch shank diameter provides increased compressive strength
• Includes 1-inch metal washer per pin for load distribution
• Compatible with Simpson Strong-Tie powder-actuated tools
• Rated for A36 and A572 Grade 50 structural steel
• 100-pack quantity reduces restocking frequency on larger jobs

Compatibility

Designed for use with Simpson Strong-Tie powder-actuated tools. Rated for fastening into A36 and A572 Grade 50 structural steel. Red strip load is recommended for proper drive performance.

Installation Notes

Powder-actuated fastening tools must be operated only by trained and certified personnel in accordance with applicable OSHA requirements and tool manufacturer guidelines. Always inspect the substrate material and verify steel grade before selecting pin length and load strip. Eye and ear protection are required during powder-actuated tool operation. Never fire into material that has already been fastened or into a location that has previously misfired without following the tool manufacturer clearing procedure.

Technical Specifications

• Pin Length: 2.5 inches
• Shank Diameter: 0.157 inches
• Washer Size: 1 inch
• Compatible Steel Grades: A36, A572 Grade 50
• Recommended Load Strip: Red strip
• Pack Quantity: 100
• Weight: 3.264 pounds
• UPC: 00707392739210

Standard Information

• Brand: SIMPSON STRONG-TIE
• Manufacturer Part Number: PDPAWL-250
