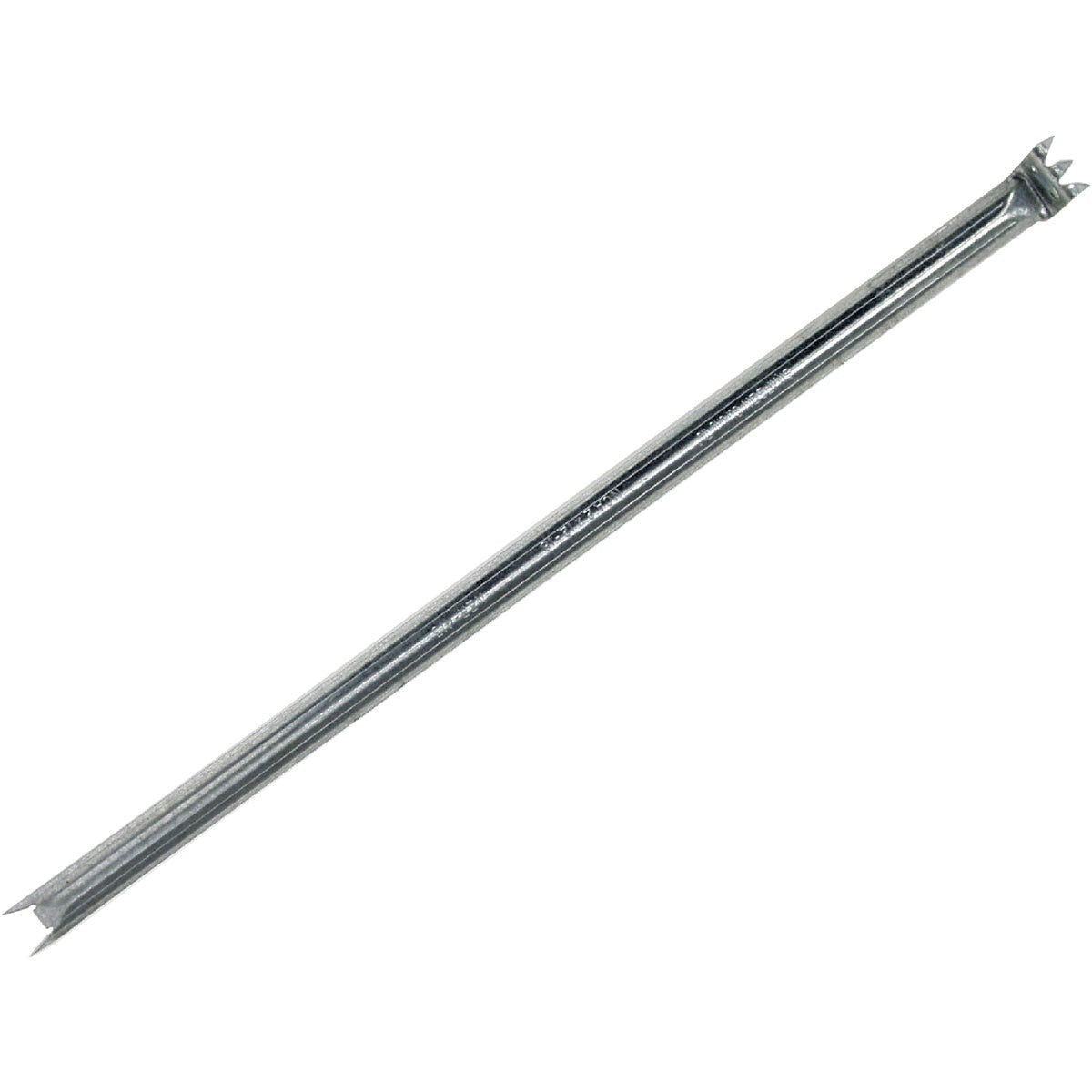

Simpson Strong-tie NCA2X12-16 Tension Bridging 2x12

Product Description

The SIMPSON STRONG-TIE NCA2X12-16 is a nailess steel tension bridging component designed for use between floor or roof joists to resist lateral movement and transfer loads between framing members. Precision-formed into a rigid V-section profile, it delivers a secure mechanical grip before the final drive-home blow, allowing for efficient installation without nails. The galvanized steel construction provides corrosion resistance in standard framing applications. Tension bridging functions only under tension loading, so it must always be installed in cross pairs — one bridging piece running in each diagonal direction between adjacent joists.

This bridging is intended for use with nominal 2x12 lumber framing. It is suited for residential and light commercial floor joist and roof rafter assemblies where code-compliant lateral bracing of framing members is required. The nailess design simplifies installation, reduces labor time, and eliminates the risk of nail-squeak callbacks caused by loose fasteners working against wood over time. Carpenters, framers, and general contractors are the primary installers of this component during rough framing stages.

Key Features

• Nailess installation eliminates nail-squeak callbacks associated with conventional bridging fasteners
• Precision-formed rigid V-section profile provides consistent grip and alignment during installation
• Must be installed in cross pairs — tension bridging works only in tension
• Galvanized steel construction for corrosion resistance in standard framing environments
• Designed specifically for nominal 2x12 framing members

Compatibility

Designed as an OEM-style replacement and standard-fit bridging component for nominal 2x12 lumber floor joists, roof rafters, and similar framing applications requiring lateral bracing.

Installation Notes

Tension bridging must be installed in cross pairs between adjacent joist bays — installing a single piece without its crossing counterpart leaves the assembly without functional lateral restraint. Secure each piece by engaging the formed V-section against the joist face and delivering the final drive-home blow to seat it fully. Framing nailers and standard hammers are typical tools for this work. Follow applicable building code requirements, including IRC framing provisions, for bridging spacing and placement intervals.
