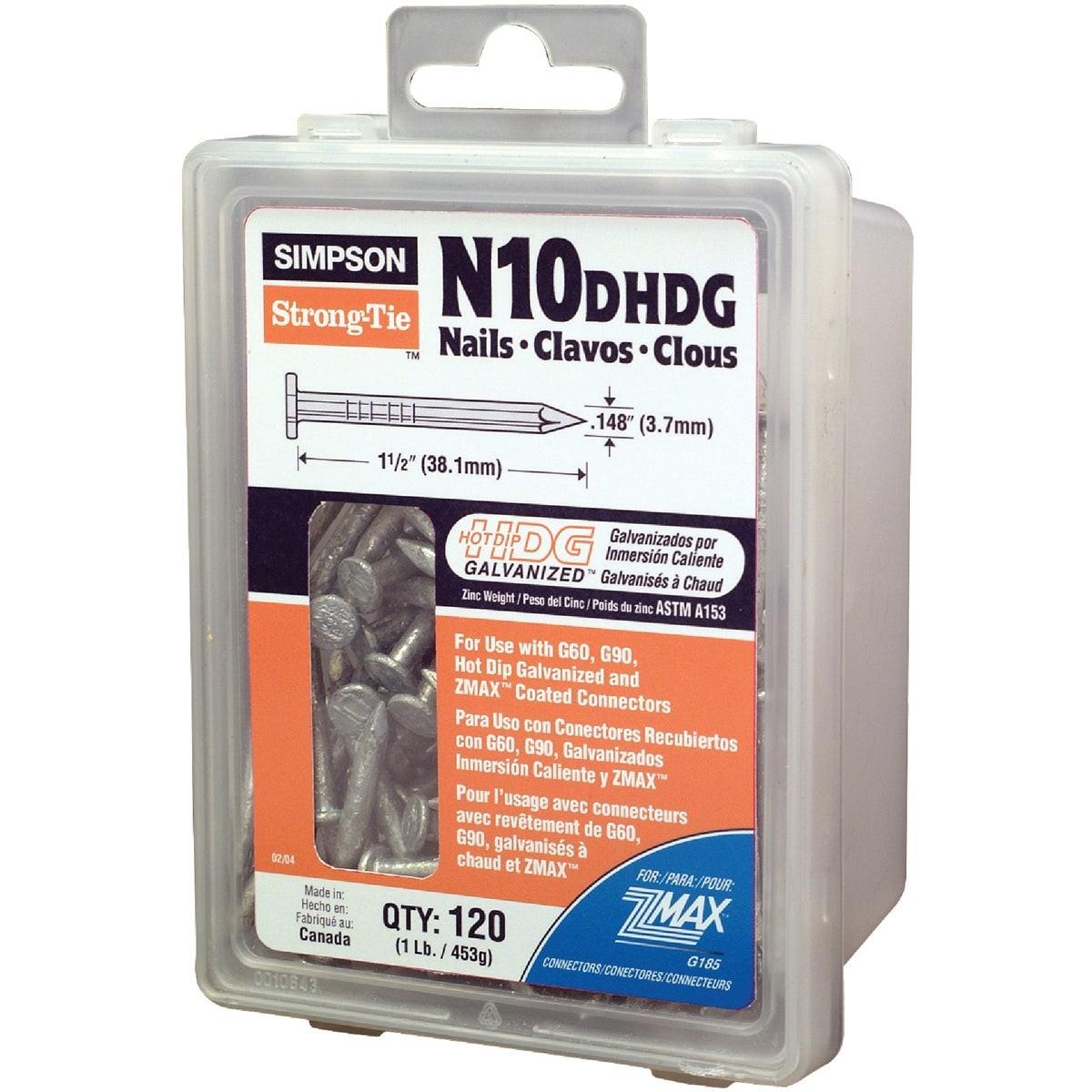

Simpson Strong-tie N10DHDG-R Joist Hanger Nails 10d 120ct

Product Description

The SIMPSON STRONG-TIE N10DHDG-R is a hot-dip galvanized joist hanger nail designed specifically for use with structural connectors and framing hardware. Manufactured at 10d x 1.5 inches in 9 gauge wire, this nail delivers the shear strength and embedment depth required to achieve rated load values in Simpson Strong-Tie connector products. The hot-dip galvanized coating provides corrosion resistance suited to treated lumber and exterior framing conditions. Each box contains 120 nails weighing approximately 1 pound, packaged in a resealable container for jobsite handling and partial-use storage.

These nails are intended for use with joist hangers, hurricane ties, post caps, and other structural connectors in residential and light commercial wood-frame construction. The 1.5-inch length is engineered to seat fully in the connector flange while maintaining adequate penetration into the framing member, maximizing the connector load rating without splitting shallow members. Framers, carpenters, and structural contractors use these fasteners wherever connector-manufacturer specifications call for 10d x 1.5-inch nails.

Key Features

• Hot-dip galvanized coating for corrosion resistance with treated lumber and exterior applications
• 10d x 1.5-inch length engineered for depth compatibility with structural connectors
• 9 gauge wire diameter provides the shear capacity required by connector load tables
• 120 nails per resealable box for easy partial-use storage on the jobsite
• Developed specifically for use with Simpson Strong-Tie connector products to maintain rated load values

Compatibility

Designed for use with Simpson Strong-Tie structural connectors and framing hardware that specify 10d x 1.5-inch joist hanger nails. Consult the connector installation instructions for the required nail schedule before installation.

Installation Notes

Installation is performed by qualified framers or carpenters following the connector manufacturer nail schedule and applicable building code requirements. Drive nails fully into all designated holes in the connector flange — do not substitute longer common nails where a 1.5-inch length is specified, as deeper penetration can split the member and reduce load capacity. For treated-lumber applications, verify that the galvanized coating meets the corrosion-resistance requirements of the applicable code or connector specification.

Technical Specifications

• Nail Size: 10d
• Length: 1.5 inches
• Gauge: 9
• Finish: Hot-Dip Galvanized
• Count per Box: 120
• Weight: 1.15 pounds
• Packaging: Resealable box
• UOM: Box
• UPC: 00707392841630

Standard Information

• Brand: SIMPSON STRONG-TIE
• Manufacturer Part Number: N10DHDG-R
