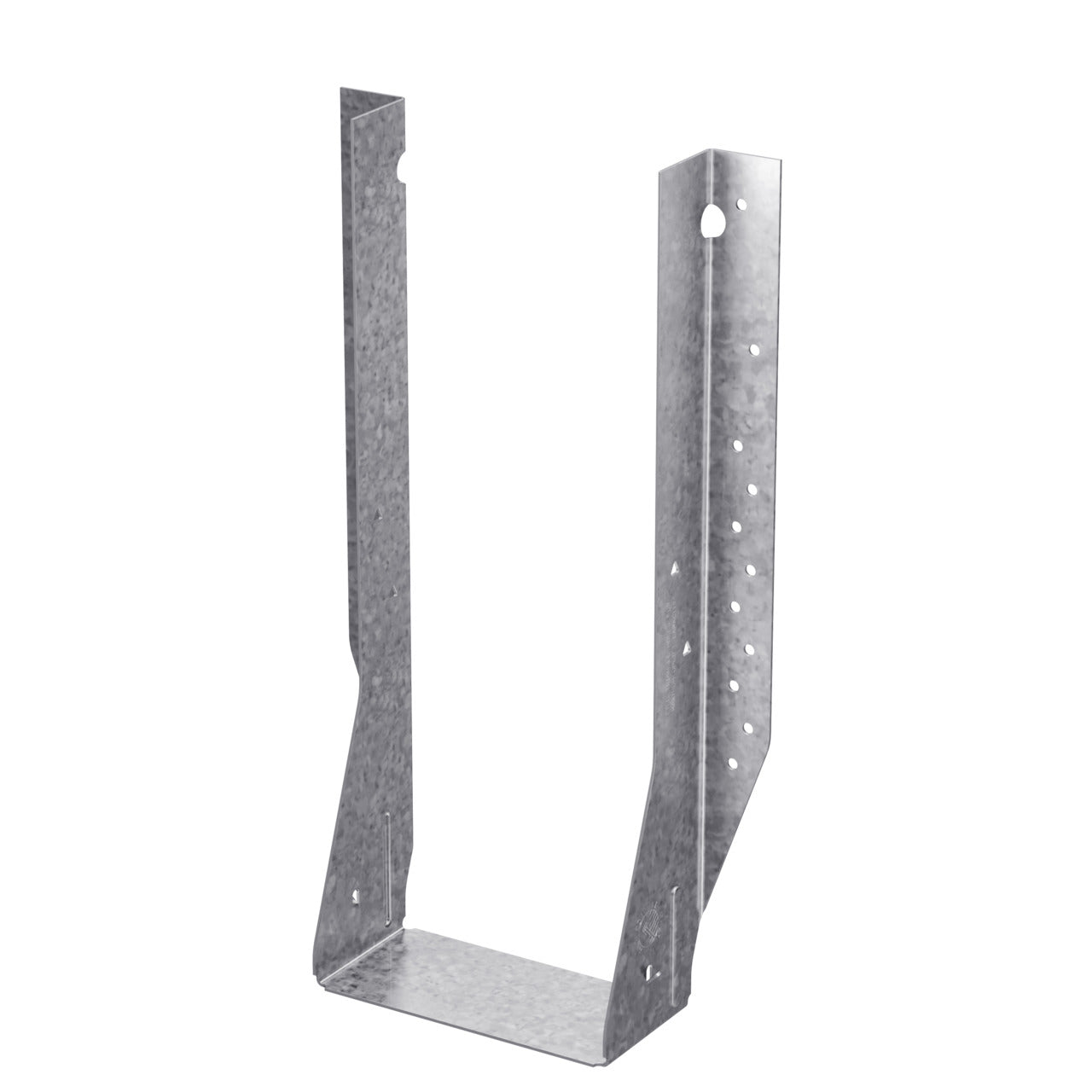

Simpson Strong-Tie MIU51214 Face-Mount I-Joist Hanger 2-1/2 x 5-1/8 x 13-5/16 16 ga

Product Description

The Simpson Strong-Tie MIU51214 is a face-mount I-joist hanger designed for high load applications in commercial settings. This model does not require web stiffeners, making it ideal for various framing projects. The hanger features positive angle nailing to reduce flange splitting, allowing for quicker installation from optimized angles.

• Designed for 2-1/2 inch by 5-1/8 inch I-joists
• Constructed with 16 gauge material for strength
• Positive angle nailing feature improves installation speed

Product Highlights

The MIU51214 is efficient for heavy loads in framing tasks. Its durable design ensures stability in structural applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: MIU51214

Technical Specifications

• Load Types: Uplift, Floor, Snow, Roof
• Maximum Allowable Loads: Up to 3875 lb for roofs
• Material Thickness: 16 gauge
• Finish: G90 Galvanized
• Fastener Size: (22) 0.162 x 3-1/2 inches (Face), (2) 0.148 x 1-1/2 inches (Joist)
