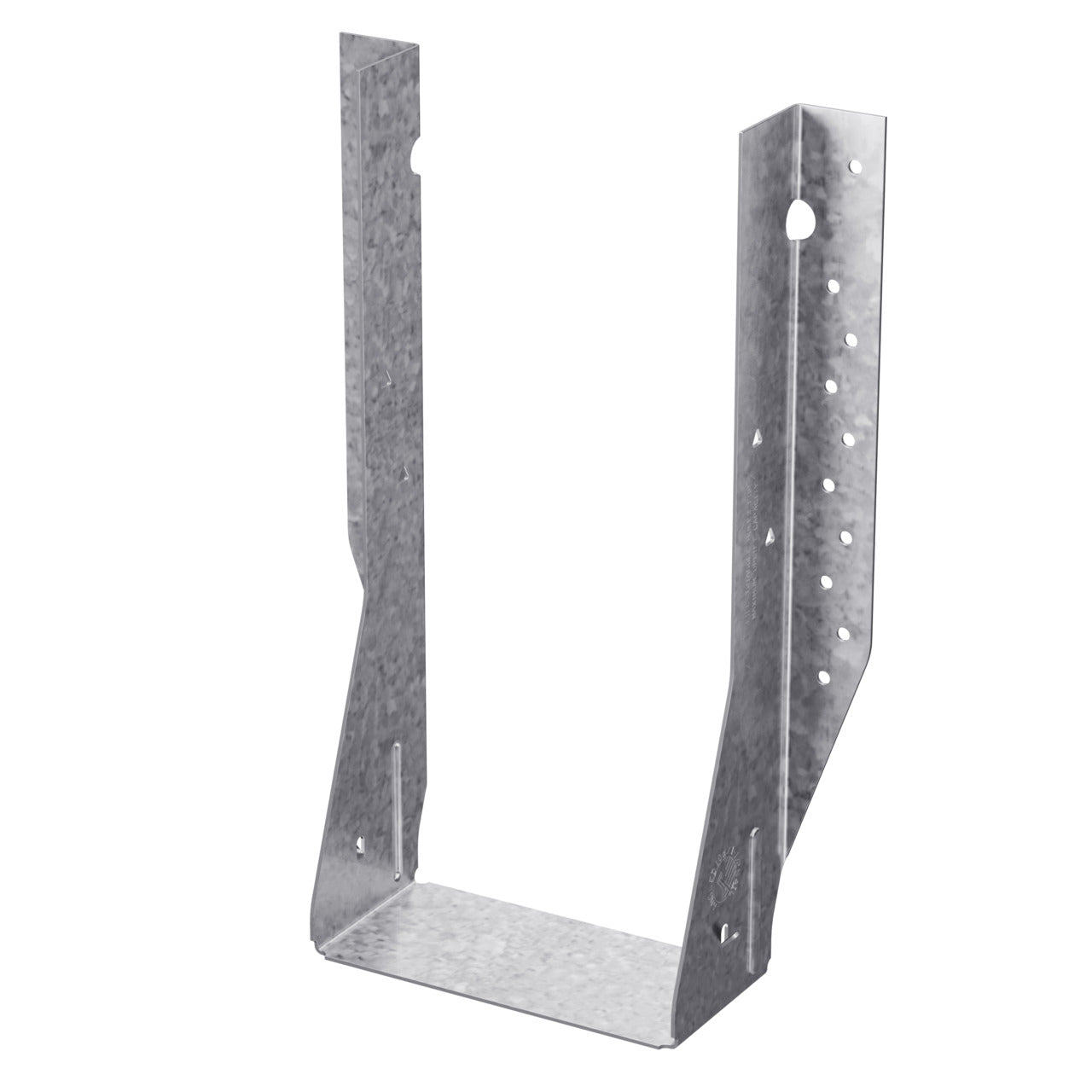

Simpson Strong-Tie MIU51211 Face-Mount I-Joist Hanger

Product Description

The Simpson Strong-Tie MIU51211 is a face-mount I-joist hanger designed for high load commercial applications. This model eliminates the need for web stiffeners while ensuring stability in construction. The pivotal feature of this hanger is its positive angle nailing (PAN), aimed to prevent flange splitting while allowing for efficient nailing from an advantageous angle.

• Designed for high load I-joist applications
• Eliminates need for web stiffeners
• Positive angle nailing for better nailing angle

Product Highlights

This I-joist hanger is suitable for various construction projects requiring strong and reliable support for joists.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137MIU51211

Technical Specifications

• Load Specifications: Uplift 210 lb, Floor Load 2880 lb, Snow Load 3135 lb, Roof Load 3135 lb
• Gauge: 16
• Finish: G90 Galvanized
• Fastener Size: (20) 0.162 x 3-1/2 inch, (2) 0.148 x 1-1/2 inch
