Simpson Strong-Tie MIU47511 MIU Series 2-1/2 x 4-3/4 x 11-1/16 16 ga Face-Mount I-Joist Hanger

Product Description

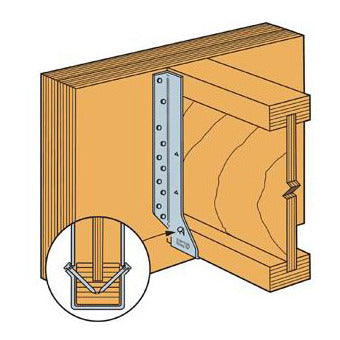

The Simpson Strong-Tie MIU47511 is a face-mount I-joist hanger specifically designed for commercial and high load applications. This product allows for effective support of I-joists without the need for web stiffeners. The hanger incorporates positive angle nailing, which helps minimize the risk of splitting the flanges while allowing for faster installation from an improved angle.

• Compatible with various I-joist sizes.
• Designed for high load capacity.
• Made from G90 galvanized steel for durability.

Product Highlights

This I-joist hanger supports efficient installation and high-load requirements, making it suitable for various structural applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: MIU47511

Technical Specifications

• Load Capacity: DF/SP Allowable Loads - Uplift 210 lb, Floor 2880 lb, Snow 3135 lb, Roof 3135 lb; SPF/HF Allowable Loads - Floor 2475 lb, Snow 2695 lb, Roof 2695 lb
• Gauge: 16
• Finish: G90 Galvanized
• Fastener Size: (20) 0.162 x 3-1/2 inches (Face), (2) 0.148 x 1-1/2 inches (Joist)
• Nominal Product Depth: 0 inches
