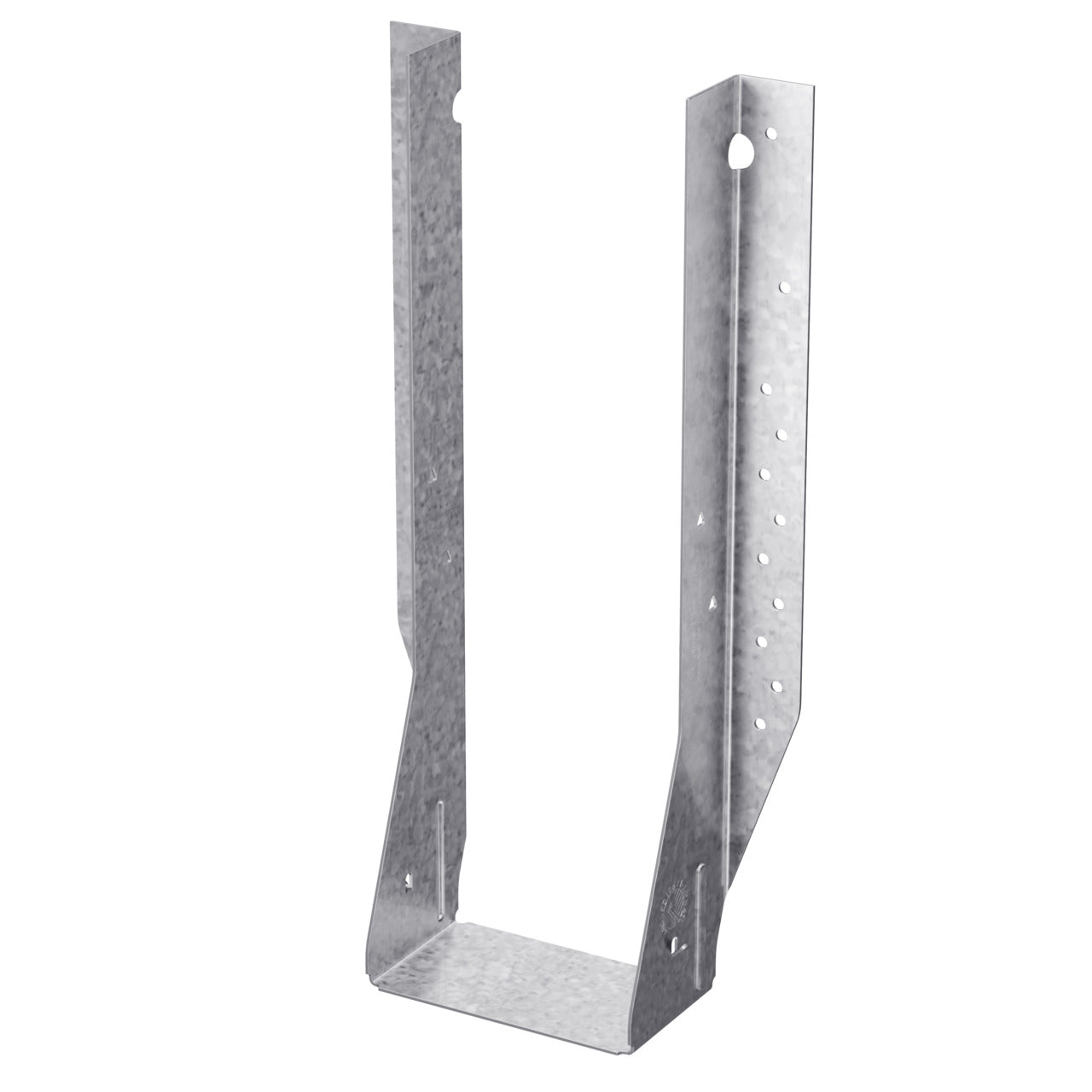

Simpson Strong-Tie MIU42814 Face-Mount I-Joist Hanger 16 ga

Product Description

The Simpson Strong-Tie MIU42814 is a face-mount I-joist hanger suitable for commercial and high load applications. This unit does not require web stiffeners, making it a versatile choice for various construction needs. The design includes positive angle nailing (PAN), which minimizes flange splitting while allowing for efficient nailing from a favorable angle.

• Features positive angle nailing (PAN) to enhance ease of use
• Specially designed for high load I-joist applications
• Eliminates the need for web stiffeners

Product Highlights

The MIU42814 hanger is engineered to hold strong under demanding conditions, making it ideal for structural framing tasks.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137MIU42814

Technical Specifications

• Load Capacity: Uplift (160) 210 lb, Floor (100) 3170 lb, Snow (115) 3595 lb, Roof (125) 3875 lb
• Gauge: 16
• Finish: G90 Galvanized
• Fastener Size: (22) 0.162 x 3-1/2 in (Face), (2) 0.148 x 1-1/2 in (Joist)
• Nominal Product Depth: 0
