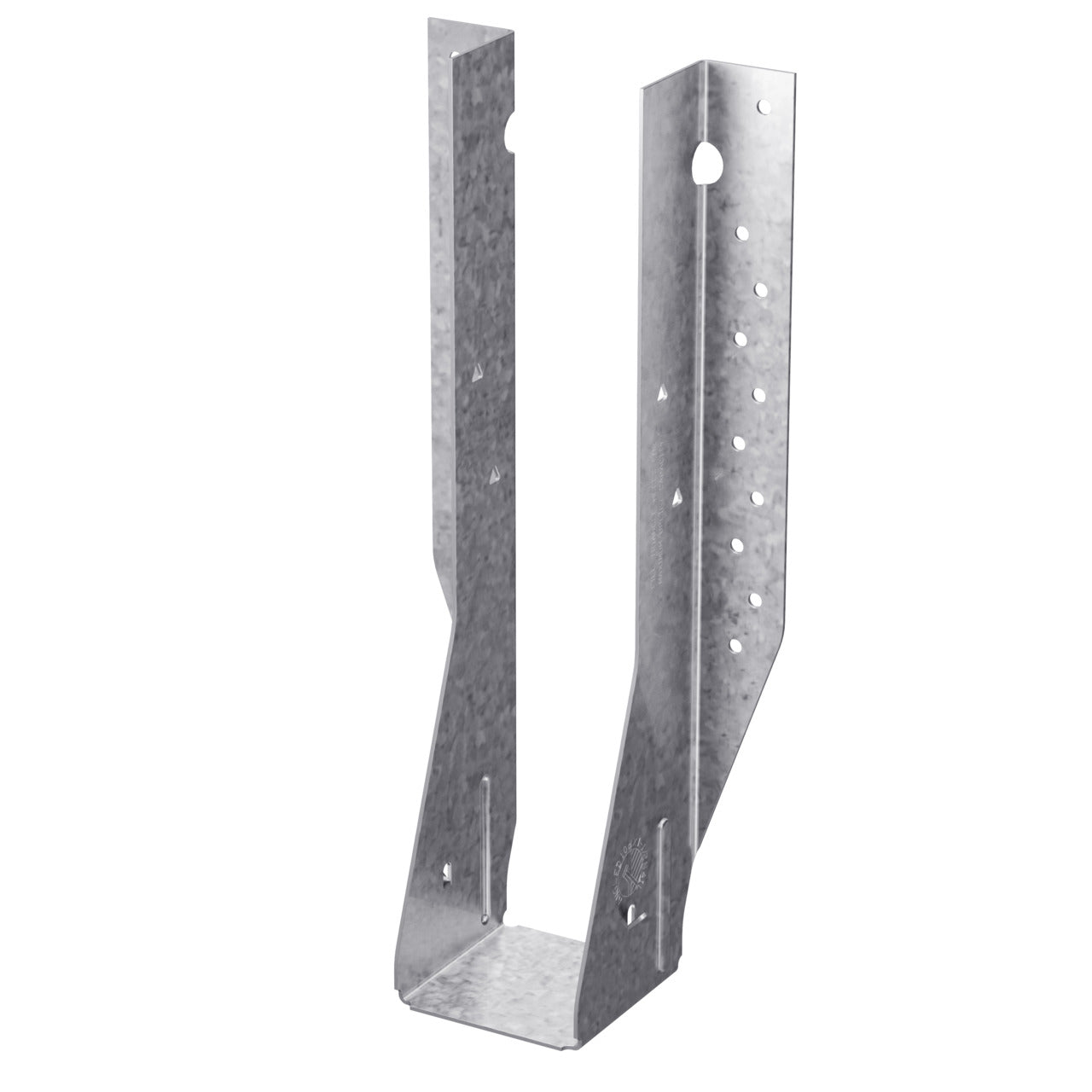

Simpson Strong-Tie MIU23711 MIU Series 2-5/16 x 11-7/8 Zinc Galvanized Hanger

Product Description

The Simpson Strong-Tie MIU23711 is a reliable joist hanger designed for commercial and high-load situations. It offers a straightforward installation without the need for web stiffeners. The hanger incorporates positive angle nailing (PAN), which significantly reduces the risk of flange splitting while allowing quicker nailing at a more efficient angle.

• Designed for commercial and high-load I-joist applications
• Positive angle nailing reduces flange splitting
• Tested, load-rated, and code compliant

Product Highlights

This product provides robust support for wood joists, ensuring structural integrity in various applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137MIU23711

Technical Specifications

• Finish: G90 Galvanized
• Gauge: 16
• Fastener Size: (20) 0.162 x 3-1/2 in (Face), (2) 0.148 x 1-1/2 in (Joist)
• Load Ratings: Uplift (160) 230 lb, Floor (100) 2880 lb, Snow (115) 3135 lb, Roof (125) 3135 lb
• SPF/HF Allowable Loads: Floor (100) 2475 lb, Snow (115) 2695 lb, Roof (125) 2695 lb
