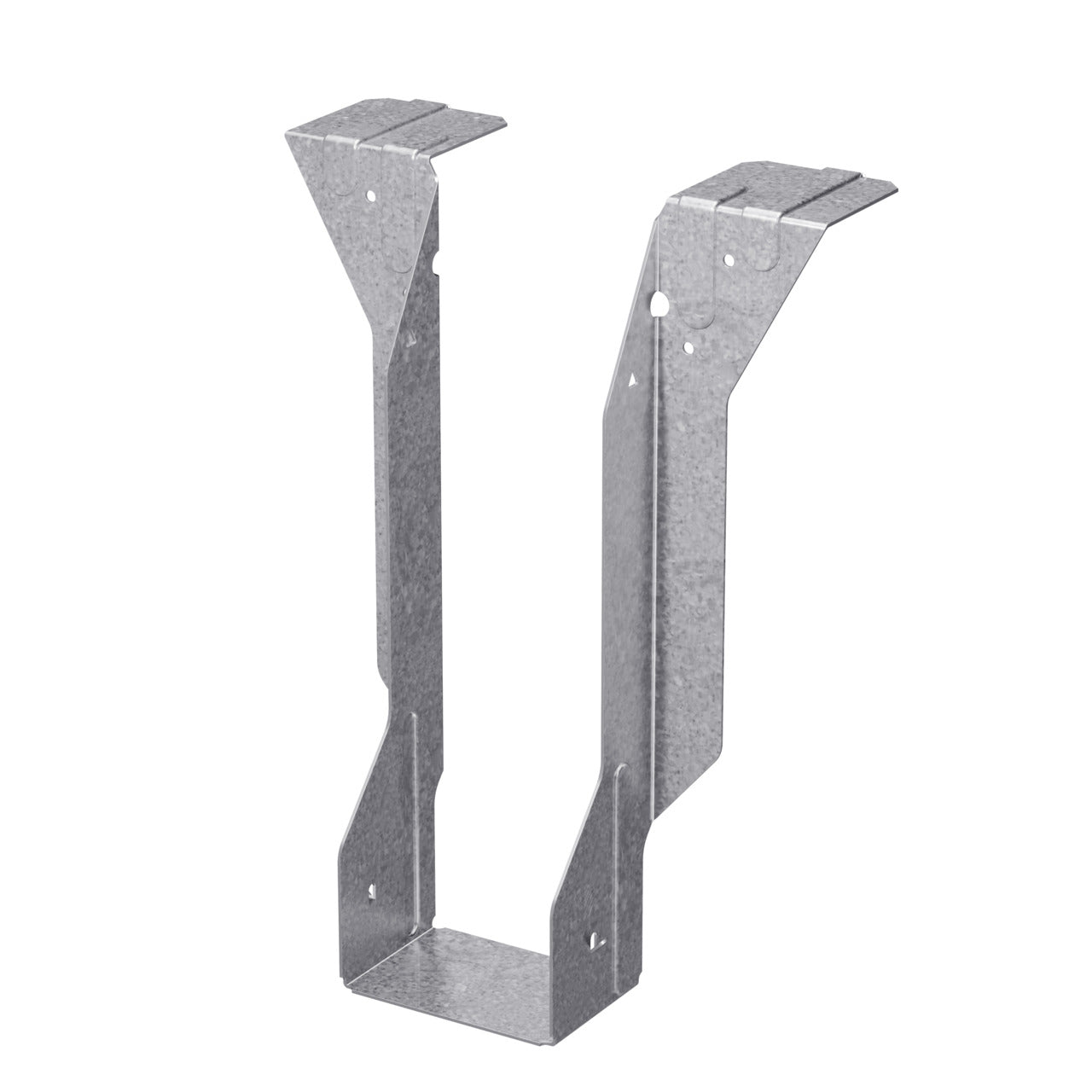

Simpson Strong-Tie MIT41188 Top-Flange Joist Hanger 2-1/2 x 3-9/16 x 11-7/8 16 ga

Product Description

The Simpson Strong-Tie MIT41188 is a top-flange joist hanger designed for reliable support in framing applications. This product is specifically engineered for I-joists and ensures strong connections while minimizing the risk of flanges splitting. The positive angle nailing feature allows nails to be installed more easily, improving efficiency on the job.

• Suitable for I-joists
• Positive angle nailing for easier installation
• Supports higher loads

Product Highlights

The MIT41188 joist hanger provides a strong connection with higher load capacity, making it ideal for construction and framing projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: MIT41188

Technical Specifications

• Gauge: 16
• Material: Steel
• Finish: Galvanized
• Fastener Size: (8) 0.162 x 3-1/2 in (Header), (2) 0.148 x 1-1/2 in (Joist)
• DF/SP Allowable Loads: 1675 lb
• SPF/HF Allowable Loads: 1665 lb
