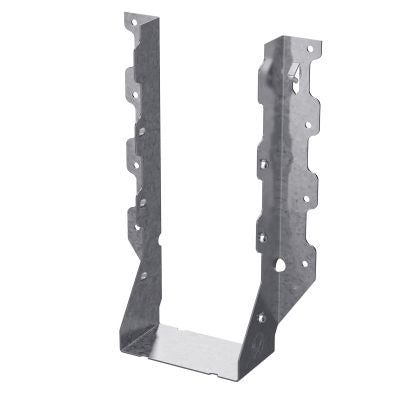

Simpson Strong-Tie LUS410 Double-Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie LUS410 is a double-shear face-mount joist hanger designed for maximum load distribution. This model features double shear nailing, which spreads the load across two points for added strength. This technology allows for fewer nails per connection, leading to faster installation times and compatibility with standard nails.

• Double-shear nailing for enhanced strength
• Fewer nails needed for quicker setups
• Compatible with standard nail sizes

Product Highlights

Efficient load management and installation are key benefits of the LUS410 joist hanger.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: LUS410

Technical Specifications

• Material: Steel
• Finish: G90 Galvanized
• Gauge: 18
• Fastener Size: (8) 0.162 x 3-1/2 inches (Header), (6) 0.162 x 3-1/2 inches (Joist)
• Load Capacity: Uplift (160) 1245 lb, Floor (100) 1575 lb, Snow (115) 1785 lb, Roof (125) 1930 lb
