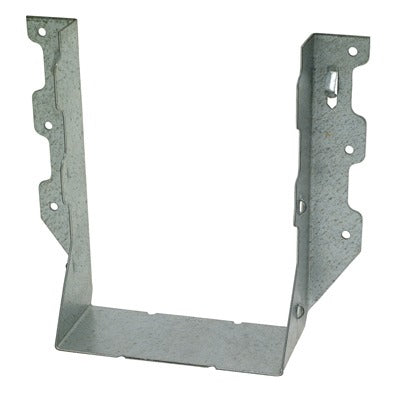

Simpson Strong Tie LUS28-3Z Triple 2x8 Joist Hanger

Product Description

The SIMPSON STRONG TIE LUS28-3Z is a triple 2x8 joist hanger designed to connect triple-ply lumber joists to headers and beams in residential and light commercial framing applications. Fabricated from 18-gauge steel with a ZMAX galvanized finish, this hanger provides strong corrosion resistance, making it suitable for outdoor structures and installations involving pressure-treated lumber. The angled nailing slots allow fasteners to be driven at an angle where face-nailing clearance is limited, maintaining full load capacity in tight framing conditions. Fastening is accomplished with 16d common nails for a code-compliant, structural connection.

This hanger is used in wood-frame construction where triple 2x8 joists must be supported by a beam, ledger, or header. Typical applications include deck framing, floor systems, and roof framing where engineered lumber or dimensional lumber is used in triple configurations. It is suited to both new construction and renovation work where structural load transfer at joist-to-beam connections is required. The ZMAX coating extends service life in high-moisture environments and alongside ACQ or CA-treated lumber.

Key Features

• 18-gauge steel construction for structural-grade load capacity
• ZMAX galvanized finish rated for use with pressure-treated and ACQ-treated lumber
• Angled nailing design enables installation in confined framing bays
• Sized to accept triple 2x8 dimensional lumber
• Fastened with 16d common nails for a reliable structural connection

Compatibility

Designed as an OEM-style structural connector for triple 2x8 dimensional lumber joist-to-header or joist-to-beam connections in wood-frame construction.

Installation Notes

Installation is performed by qualified framers or structural carpenters following applicable building code requirements, including IRC and IBC framing provisions. Confirm lumber dimensions and ply count match the hanger designation before fastening. Use only the specified 16d common nails in all provided nail holes to achieve the rated load values. Do not substitute nails with a smaller diameter or shorter length, as this will reduce the rated capacity of the connection.

Technical Specifications

• Gauge: 18-gauge steel
• Finish: ZMAX galvanized
• Lumber Size: Triple 2x8
• Fastener Type: 16d common nails
• Weight: 7.91 pounds
• Package Quantity: 15 per package
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LUS28-3Z
