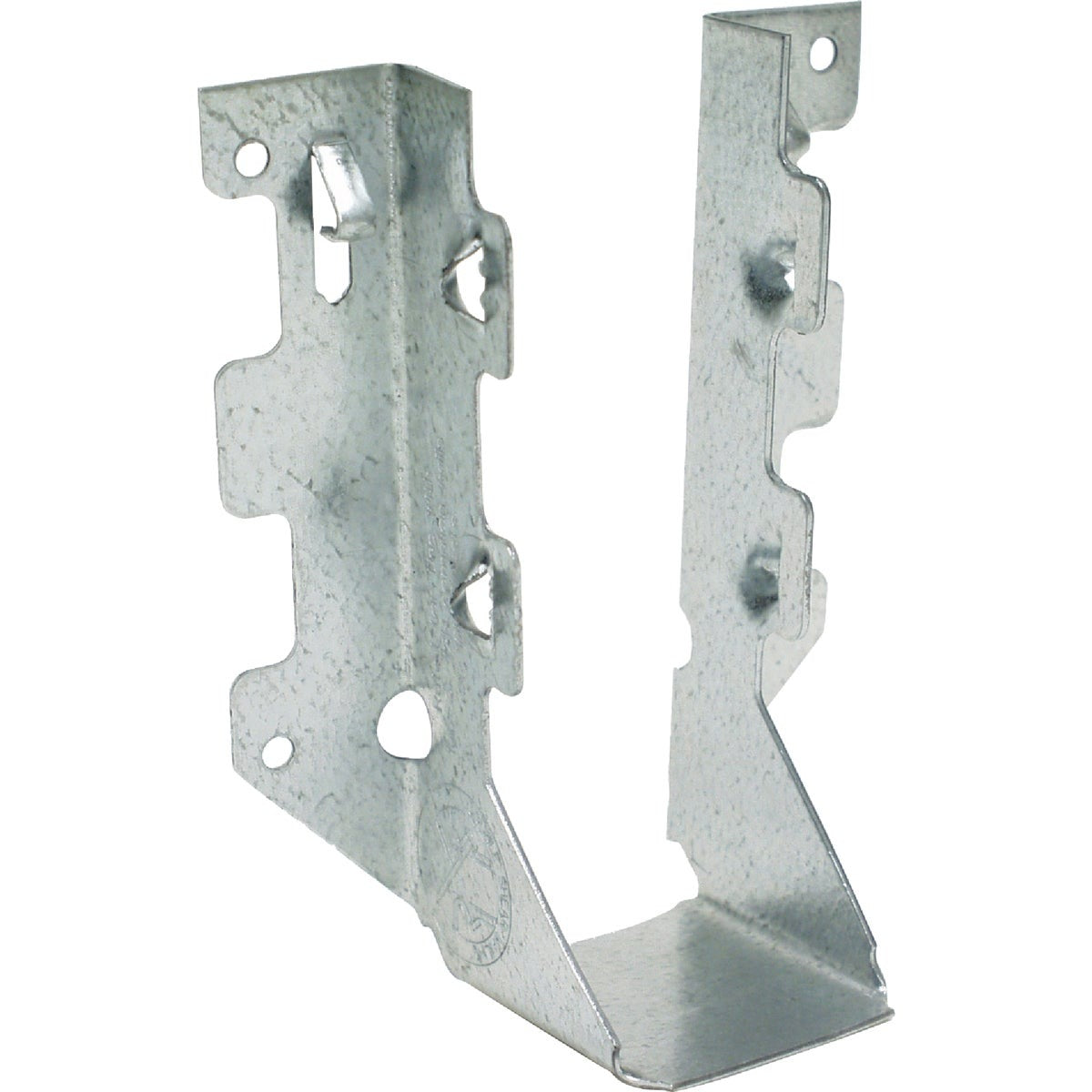

Simpson Strong-tie LUS26Z 2x6 Joist Hanger Zmax

Product Description

The SIMPSON STRONG-TIE LUS26Z is a single joist hanger engineered for use with 2x6 dimensional lumber in light-frame wood construction. It features a double-shear nailing pattern that transfers load through two contact points on each joist nail, increasing connection strength without requiring specialty fasteners. The ZMax coating provides enhanced corrosion resistance, making it suitable for treated lumber applications where standard galvanized hardware is not rated. Installation is straightforward and does not require special tools, keeping labor time low on production framing and repair work alike.

This hanger is used in residential and light commercial wood-frame construction wherever 2x6 joists, rafters, or headers connect to a carrying member such as a beam, ledger, or header. Common applications include floor framing, deck framing, and roof assemblies. It is installed by framing contractors, finish carpenters, and general contractors. The double-shear design allows the connection to be completed with all common nails, eliminating the need for specialty fasteners on the jobsite.

Key Features

• Double-shear nailing distributes load through two points per joist nail for increased connection strength
• ZMax coating provides elevated corrosion resistance for use with treated lumber
• Accepts standard common nails — no specialty fasteners required
• Designed for 2x6 dimensional lumber framing members
• Economical single-unit hanger suitable for high-volume framing applications

Compatibility

Designed as an OEM-style replacement and standard framing connector for 2x6 dimensional lumber in residential and light commercial wood-frame construction applications.

Installation Notes

Installation is performed by framing contractors or general contractors following local building code requirements and the manufacturer load table for the specific nail schedule. Fasten to the carrying member first, then seat the joist fully before nailing through the face of the hanger. All fastener holes should be filled per the published nailing schedule to achieve rated load capacity. Consult applicable building codes and engineering requirements when installing in ACQ or other chemically treated lumber environments where corrosion resistance ratings apply.
