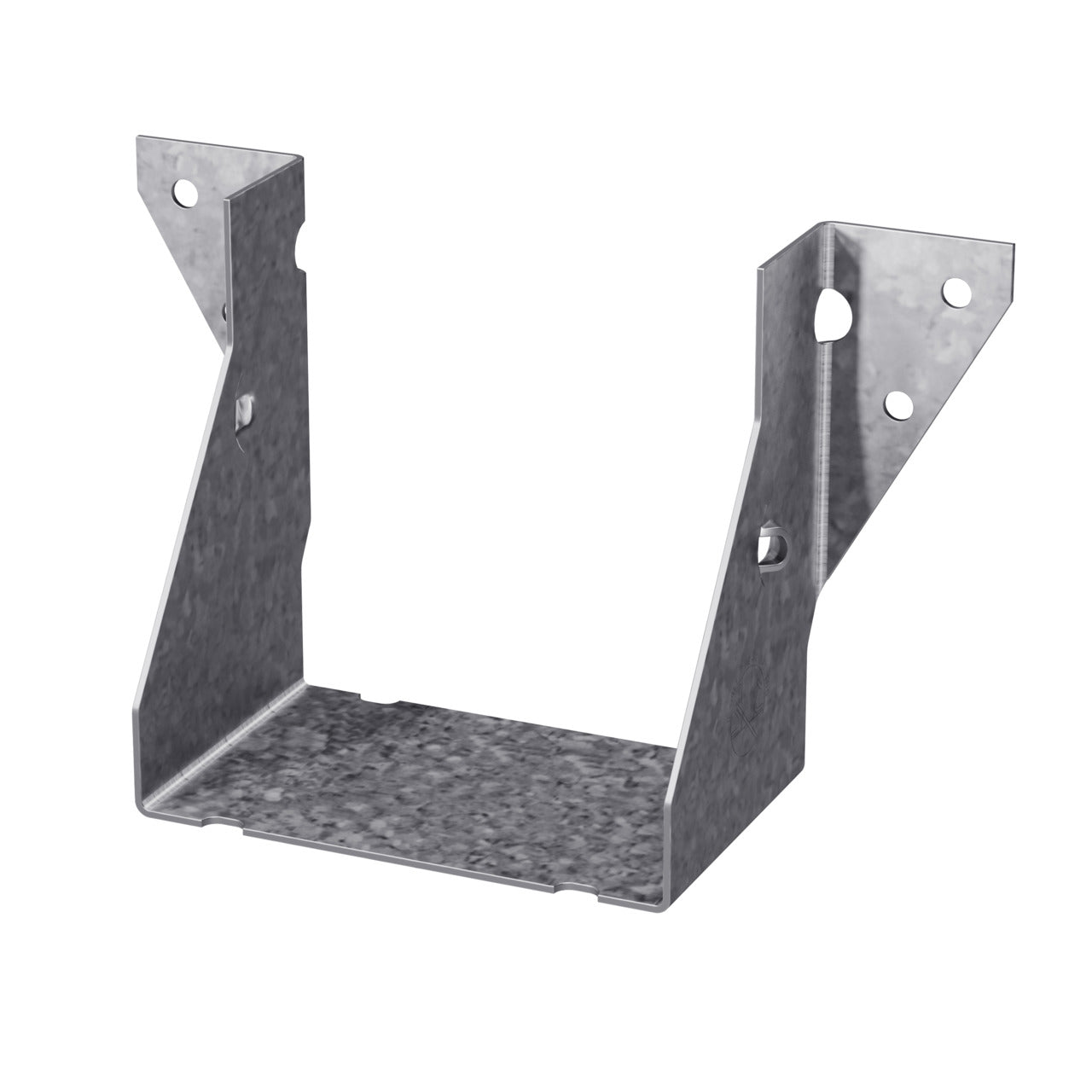

Simpson Strong-Tie LUS262 Double-Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie LUS262 is a double-shear face-mount joist hanger designed for reliable connections. This joist hanger provides essential support for joists, rafters, or beams. It features a patented double-shear nailing design, which enhances strength while using fewer nails.

• Durable 18-gauge galvanized steel construction
• Speed prongs for quick and secure installation
• Suitable for nominal joist sizes of double two by six and two by eight

Product Highlights

Outstanding for connecting joists and headers, the LUS262 joist hanger features an easy installation design with angled nailing for tight spaces.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Manufacturer Part Number: LUS262

Technical Specifications

• Material: Steel
• Gauge: 18
• Finish: G90 Galvanized
• Overall Depth: 4.875 inches
• Overall Width: 5.125 inches
• Overall Height: 2.0 inches
• Nominal Joist Size: Double 2x6 and 2x8
• Load Ratings: Uplift (160) 910 lb, Floor (100) 885 lb, Snow (115) 1005 lb, Roof (125) 1090 lb
