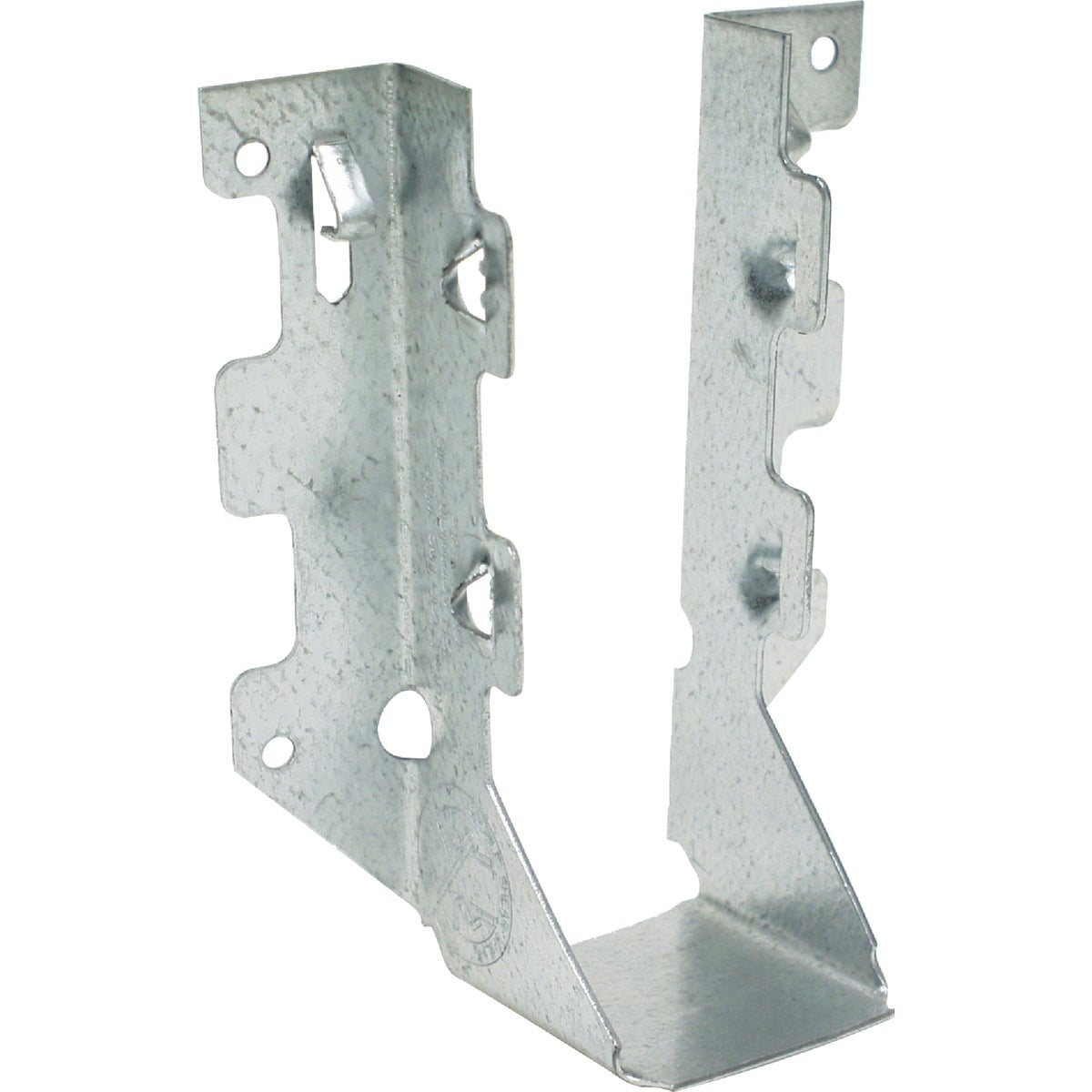

Simpson Strong-tie LUS26 Joist Hanger 18 Gauge 2x6

Product Description

The SIMPSON STRONG-TIE LUS26 is an 18-gauge joist hanger engineered for 2x6 dimensional lumber connections in wood-framed structures. It provides a reliable, load-rated connection between joists and headers or beams, keeping framing members properly positioned and transferring vertical loads efficiently. The LUS26 uses a double-shear nailing pattern that distributes load through two points on each joist nail, improving connection strength without requiring specialty fasteners. Carpenters, framers, and general contractors install this hanger during new construction and remodel framing work.

The LUS26 is suited for residential and light commercial wood-framed floor, deck, and roof framing applications where 2x6 lumber is the primary joist or rafter size. Its economical design and compatibility with common nails make it a standard choice on high-volume framing jobs where installation speed and consistent performance are both priorities. The double-shear nail geometry allows fewer nails per connection compared to single-shear designs while maintaining the required load capacity.

Key Features

• Double-shear nailing distributes load through two points per joist nail for increased connection strength
• Compatible with common nails — no specialty fasteners required
• 18-gauge steel construction for structural framing applications
• Designed for 2x6 dimensional lumber
• Economical single-unit pricing supports high-volume framing projects

Compatibility

Designed as an OEM-style structural connector for 2x6 dimensional lumber in standard wood-framed residential and light commercial construction.

Installation Notes

Installation is performed by qualified framers or carpenters in accordance with local building codes and the manufacturer's load table specifications. Fasten with the nail type and quantity specified in the applicable load tables — substituting fastener size or count can reduce rated capacity. Inspect the hanger seat and flanges for proper lumber bearing contact before finalizing fasteners. Consult local jurisdiction requirements for seismic or high-wind uplift ratings where applicable.
