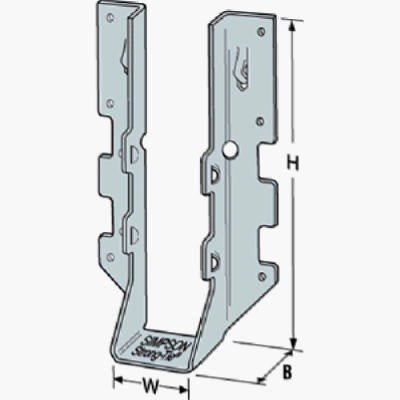

Simpson Strong Tie LUS210-2Z Double Joist Hanger 2x10

Product Description

The SIMPSON STRONG TIE LUS210-2Z is a double joist hanger engineered for 2-inch by 10-inch lumber applications. Stamped from G185 Z-Max galvanized steel, it delivers corrosion resistance suited to treated lumber, wet service conditions, and outdoor exposure. The face-mount design seats the hanger against the header or carrying member, allowing direct nailing without complex layout. Structural contractors, framers, and finish carpenters use this hanger to transfer vertical loads from floor and roof joists into the supporting structure, maintaining consistent joist depth alignment across the run.

The LUS210-2Z is appropriate for residential floor framing, deck construction, and light commercial wood-frame applications where a doubled 2x10 joist or beam must be hanger-connected to a rim board, ledger, or header. The face-mount style suits new construction and retrofit situations alike, since the hanger can be installed from one side of the connection. This package contains 25 hangers per unit of measure, making it practical for tract framing or multi-bay deck projects.

Key Features

• G185 Z-Max galvanized coating for compatibility with ACQ, CA, and other preservative-treated lumber
• Double joist configuration accepts doubled 2-inch by 10-inch members without filler plates
• Face-mount installation eliminates the need to notch or pre-position the hanger before setting joists
• Designed for consistent joist depth alignment and positive load transfer into the carrying member
• Sold in 25-piece packages to match typical framing and deck project quantities

Compatibility

Designed as an OEM-style structural connector for face-mount installation with doubled 2-inch by 10-inch dimensional lumber in wood-frame residential and light commercial construction.

Installation Notes

Installation is typically performed by licensed framers or general contractors following IBC and IRC fastener schedules. Use only the fastener type, quantity, and size specified in the load table for this hanger — substituting fastener count or size voids the rated load values. Ensure the carrying member is plumb and the hanger seats flush before driving nails. Do not field-modify the hanger by bending tabs, cutting flanges, or drilling additional holes.

Technical Specifications

• Material: G185 Z-Max Galvanized Steel
• Joist Configuration: Double
• Lumber Size: 2 inches x 10 inches
• Mount Type: Face Mount
• Package Quantity: 25 per package
• Weight: 15 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LUS210-2Z
