Simpson Strong Tie LU210 Joist Hanger 2x10

Product Description

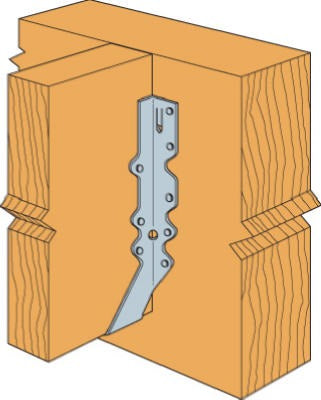

The SIMPSON STRONG TIE LU210 is a face-mount joist hanger designed to support 2x10 dimensional lumber in wood-frame construction. It connects joists to headers or beams without the need for toenailing, providing a secure, load-transferring connection at each framing junction. The hanger is manufactured from steel and is suited for both residential and light commercial framing applications. Framers and structural carpenters rely on this type of connector to maintain consistent joist alignment and improve the integrity of floor, deck, and ceiling assemblies. The LU210 arrives in a package quantity of 50 units.

This joist hanger is used in standard wood-frame construction where 2x10 joists bear into a ledger, rim board, or header. Common applications include floor systems, deck framing, and ceiling assemblies in residential and light commercial buildings. It is installed at each joist-to-header connection point and is designed to carry both downward and uplift loads at the joist seat. Installers should use manufacturer-specified structural nails or screws through the hanger nail holes to achieve rated load capacity.

Key Features

• Designed for 2x10 dimensional lumber framing connections
• Face-mount design eliminates the need for toenailing joists
• Steel construction for resistance to corrosion and deformation under load
• Precision-formed nail holes promote consistent fastener placement and alignment
• Sold in a package of 50 hangers for project-quantity purchasing

Compatibility

Designed as an OEM-style structural connector for use with 2x10 nominal lumber in standard wood-frame residential and light commercial framing systems.

Installation Notes

Installation is performed by qualified framers or structural carpenters. Power down any adjacent mechanical systems before working in tight joist bays. Use only the fastener type and quantity specified in the load tables for this connector to achieve rated capacity — substituting fasteners voids the connection rating. Local building codes and the applicable edition of the International Residential Code or International Building Code should be consulted for required hanger schedules and inspection requirements.

Technical Specifications

• Lumber Size: 2x10
• Package Quantity: 50 EA
• Weight: 14 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LU210
