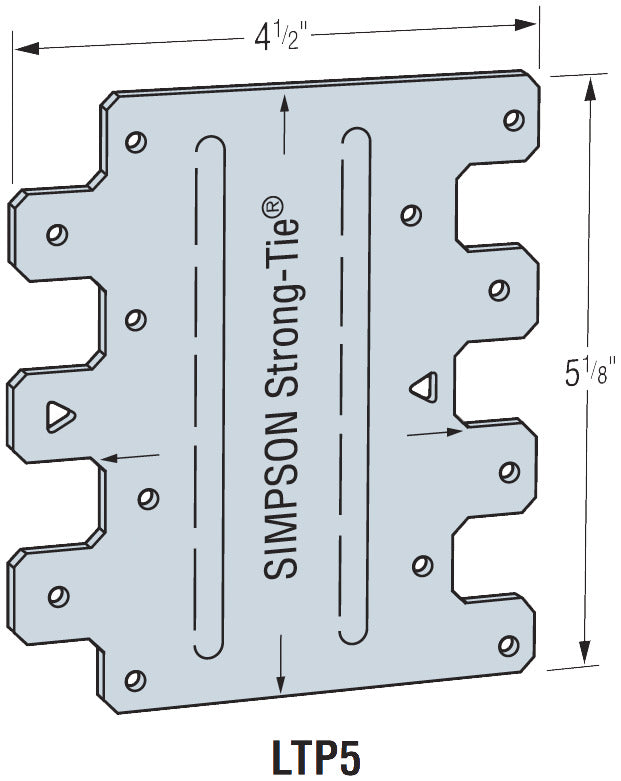

Simpson Strong-Tie LTP5 Connector Screw 20 ga Steel Tie Plate

Product Description

The Simpson Strong-Tie LTP5 is a lateral tie plate designed for superior performance in structural applications. This product accommodates various installation needs and enhances the stability of framing connections.

• Features embossments that improve structural performance.
• Allows for both min and max nailing options for versatile installation.
• Spaced nail holes prevent wood splitting, suitable for single and double top plate setups.

Product Highlights

The LTP5 spans subfloor at the top of blocking or rim boards, making it ideal for supporting various constructions.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137LTP5

Technical Specifications

• Material: Steel
• Thickness: 20 gauge
• Load Capacity: 565 lbs
• UPC: 707392727507
• Application: Suitable for use with plywood sheathing
• Design Feature: Embossments for enhanced performance
• Nailing Options: Min/Max flexibility
• Nail Hole Spacing: Prevents wood splitting
