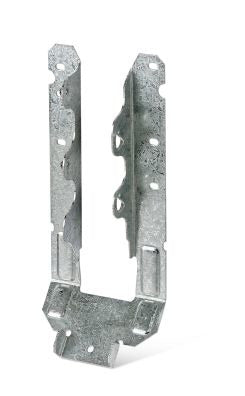

Simpson Strong-Tie LRU28Z LRUZ Series Face-Mount Rafter Hanger

Product Description

The Simpson Strong-Tie LRUZ Series LRU28Z is a face-mount rafter hanger designed for sloped connections between rafters and ridges. Its unique design allows for easy installation, either before or after placing the rafter. This product is suitable for solid sawn rafters, offering flexibility and efficiency on the job site.

• Field adjustable seat for better fit and efficiency
• Compatible with roof pitches from 0:12 to 14:12
• Load capacity comparable to other hangers, yet requires fewer fasteners

Product Highlights

This hanger not only provides strength but also simplifies installation with its adjustable design, making it ideal for both new constructions and retrofits.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: LRU28Z

Technical Specifications

• Gauge: 18
• Finish: ZMAX Coated
• Maximum Load: Uplift (160) 805 lb, Floor (100) 1050 lb, Snow (115) 1050 lb, Roof (125) lb
• Fastener Size: (6) 0.148 x 3 inches (Face), (5) 0.148 x 3 inches (Joist)
