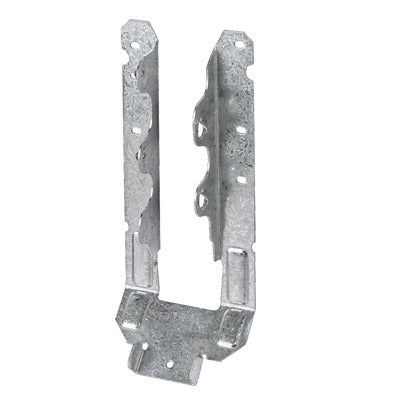

Simpson Strong Tie LRU28Z 2x8 18GA Rafter Hanger

Product Description

The SIMPSON STRONG TIE LRU28Z is an 18-gauge slopeable rafter hanger engineered for 2x8 lumber in roof framing applications. The open-design body allows field adjustment to accommodate roof pitches from 0:12 to 14:12, covering a wide range of residential and light-commercial roof geometries. Galvanized with ZMAX coating, the LRU28Z delivers elevated corrosion resistance suited for contact with treated lumber and exposed outdoor environments. Licensed contractors and framing crews install this hanger as part of structural roof assemblies where code-compliant rafter-to-plate connections are required.

The LRU28Z is used in both new construction and retrofit framing projects where sloped rafter connections are required. Its adjustable design makes it practical for custom roof pitches and irregularly framed structures. The hanger accepts multiple nail and screw sizes, giving installers flexibility on the jobsite. It is well suited for residential roof systems, additions, covered porches, and any application involving dimensional 2x8 rafter members at varied slopes.

Key Features

• Accommodates roof pitches from 0:12 to 14:12 via field-adjustable open design
• 18-gauge steel construction for structural load-transfer performance
• ZMAX galvanized coating for corrosion resistance in treated-wood and outdoor applications
• Compatible with multiple nail and screw sizes for installation flexibility
• Suitable for both new construction and retrofit framing projects

Compatibility

Designed as an OEM-style structural connector for 2x8 dimensional lumber rafter framing in residential and light-commercial roof assemblies.

Installation Notes

Installation is performed by licensed framers or structural carpenters following applicable building codes, including IRC and IBC fastener schedule requirements. Power down any adjacent electrical systems and secure the work area before beginning overhead framing work. Use only the fastener types and quantities specified on the load table for this hanger model to maintain rated capacity. Do not field-modify the hanger body beyond the intended slope adjustment.

Technical Specifications

• Gauge: 18
• Lumber Size: 2x8
• Slope Range: 0:12 to 14:12
• Coating: ZMAX Galvanized
• Package Quantity: 25 per package
• Unit of Measure: EA
• Weight: 10 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LRU28Z
