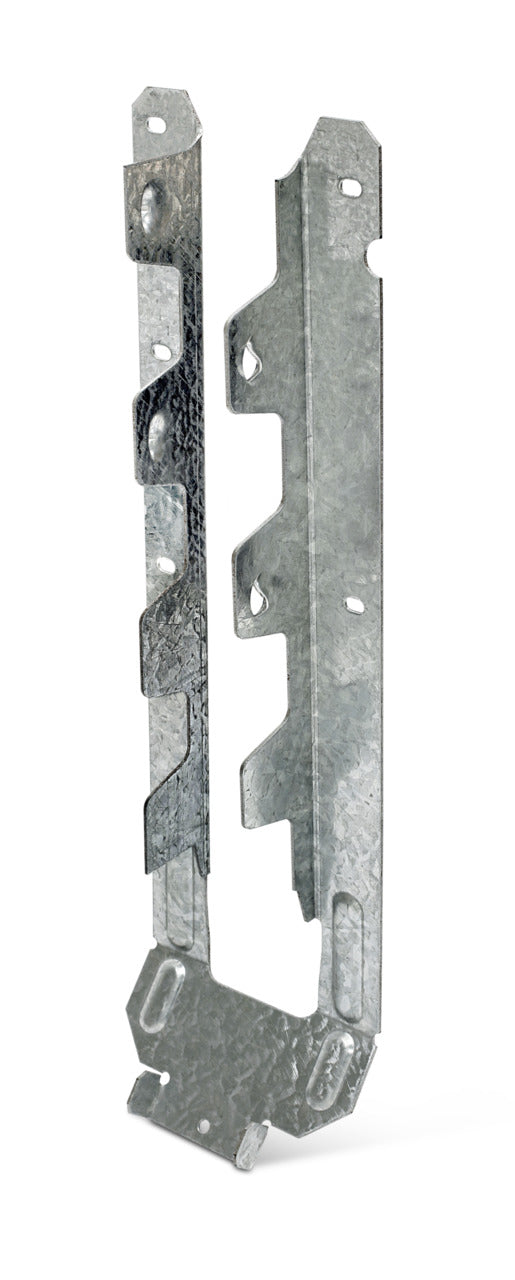

Simpson Strong-Tie LRU212Z Rafter Hanger 18 ga

Product Description

The Simpson Strong-Tie LRU21Z is an effective solution for sloped hanger applications in rafter to ridge connections. This product features a unique design that allows for installation both before and after rafter placement. The field adjustable seat improves job efficiency by addressing potential mismatched angles in construction.

• Accommodates roof pitches from 0:12 to 14:12.
• Allows slopes up or down to forty-five degrees (12:12).
• Comparable load capacity with fewer fasteners required.

Product Highlights

The LRUZ series provides flexibility for both new and retrofit applications. It is designed to meet various load requirements while simplifying installation.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: LRU212Z

Technical Specifications

• Gauge: 18
• Finish: ZMAX Coated
• Maximum Load: Uplift (160) 1305 lb, Floor (100) 1295 lb, Snow (115) 1430 lb, Roof (125) 1430 lb
• Fastener Size: (6) 0.148 x 3 in (Face), (7) 0.148 x 3 in (Joist)
