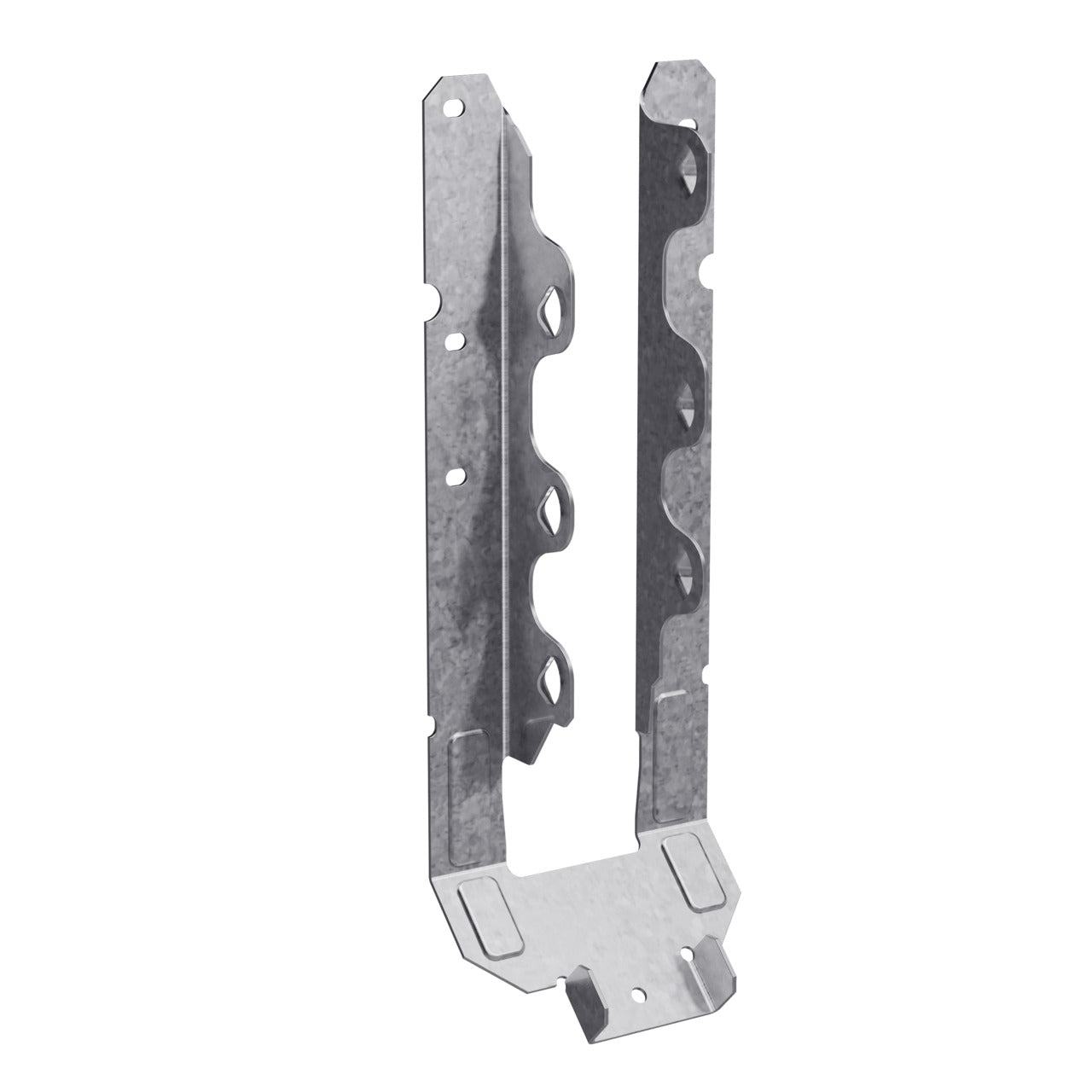

Simpson Strong-Tie LRU210Z Rafter Hanger 18 ga 1-15/16 x 1-9/16 x 8-3/16

Product Description

The Simpson Strong-Tie LRU210Z is a face-mount rafter hanger designed for solid sawn rafters. This component enables efficient installation for sloped hanger applications connecting rafters to ridges. The field-adjustable design enhances job efficiency by allowing adjustments directly on site, accommodating varying angles without the need for special orders.

• Field adjustable seat for easy angle modifications
• Effective load capacity with fewer fasteners required
• Compatible with roof pitches from 0:12 to 14:12

Product Highlights

Ideal for both new construction and retrofit applications, the LRU210Z rafter hanger delivers reliable performance and versatility.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137LRU210Z

Technical Specifications

• Gauge: 18
• Finish: ZMAX Coated
• Maximum Load: Uplift (160) 1015 lb, Floor (100) 1295 lb, Snow (115) 1480 lb, Roof (125) 1495 lb
• Fastener Size: (6) 0.148 x 3 inches (Face), (7) 0.148 x 3 inches (Joist)
