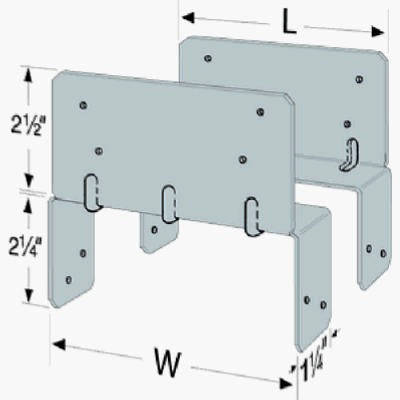

Simpson Strong Tie LPC6Z 6x Adjustable Post Cap Z-max

Product Description

The SIMPSON STRONG TIE LPC6Z is a 6x adjustable post cap designed for structural beam-to-post connections in wood-frame construction. Fabricated from 16-gauge Z-Max galvanized steel, it provides corrosion resistance suited to treated-lumber and exterior applications. The cap accommodates T-shaped outer corner configurations and allows post-installation attachment after beam placement, which simplifies sequencing on the job site. Licensed contractors and experienced builders install this connector where code-compliant load transfer between posts and beams is required.

This post cap is used in residential and light commercial wood-frame structures, including decks, pergolas, covered porches, and structural framing systems. The adjustable design makes it practical for repair and retrofit work where beam placement has already occurred. Its T-corner geometry supports intersecting beam layouts that standard fixed caps cannot accommodate. Installers working with pressure-treated lumber will find the Z-Max coating appropriate for ACQ and other corrosive preservative treatments.

Key Features

• 16-gauge Z-Max galvanized steel construction for corrosion resistance with treated lumber
• Adjustable design allows attachment after beam placement, aiding installation sequencing
• Supports T-shaped outer corner beam configurations
• Sized for nominal 6x posts
• Eliminates the need for toenailing at the post-to-beam connection

Compatibility

Designed as an OEM-style structural connector for nominal 6x lumber posts in residential and light commercial wood-frame construction applications.

Installation Notes

Installation should be performed by a qualified contractor familiar with structural connector requirements under the applicable building code. Fasten with the nail or screw pattern specified on the connector label or in the manufacturer load tables — do not substitute fastener type or count. Verify that post and beam lumber dimensions match the connector sizing before fastening. Consult local building codes and the applicable version of the IBC or IRC for load path and inspection requirements.

Technical Specifications

• Material: 16-gauge Z-Max galvanized steel
• Post Size: 6x nominal lumber
• Package Quantity: 40 per package
• Package Weight: 18 pounds
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LPC6Z
