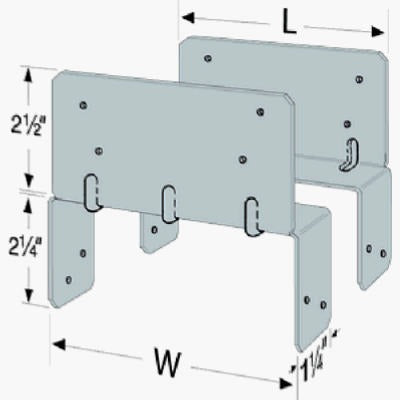

Simpson Strong Tie LPC4Z Post Cap Z-max 4x

Product Description

The SIMPSON STRONG TIE LPC4Z is an adjustable post cap fabricated from 18-gauge Z-Max galvanized steel, designed to connect four wood members at right angles. It eliminates the need to drive nails into end grain, reducing split risk and improving structural integrity at the connection point. The LPC4Z can be installed after beams are already positioned, which simplifies sequencing on framing projects. Additional nails can be driven to increase uplift load capacity when the application demands it. This connector is suited for licensed contractors, framing crews, and experienced structural DIYers working on decks, pergolas, post-and-beam framing, and similar load-bearing assemblies.

The LPC4Z is intended for use with 4x dimensional lumber in residential and light commercial framing applications. Its adjustable design accommodates minor alignment variations in the field, making it practical for new construction as well as repair and retrofit work. Typical installations include deck post-to-beam connections, pergola corner assemblies, and structural framing where perpendicular multi-member connections are required. Framing contractors and deck builders are the primary installers of this connector.

Key Features

• 18-gauge Z-Max galvanized steel construction for corrosion resistance in exposed or treated-lumber environments
• Adjustable design accommodates four wood members meeting at right angles
• Eliminates end-grain nailing, reducing the risk of lumber splitting during installation
• Can be installed after beams are set, improving job-site sequencing flexibility
• Accepts additional nails to increase uplift load capacity as needed

Compatibility

Designed as an OEM-style structural connector for use with 4x dimensional lumber in post-and-beam framing, deck construction, and pergola assemblies.

Installation Notes

Installation should be performed by a qualified framing contractor or structural trade professional in accordance with applicable building codes. Fasten with the nail count and size specified on the connector or in the applicable load table for the required load condition. Do not substitute fastener types or reduce fastener count, as this directly affects rated load capacity. No special tools beyond a standard hammer or pneumatic nailer are required for fastening.

Technical Specifications

• Material: 18-gauge Z-Max galvanized steel
• Lumber Size: 4x
• Weight: 10.8 pounds
• Package Quantity: 40 per package
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: LPC4Z
