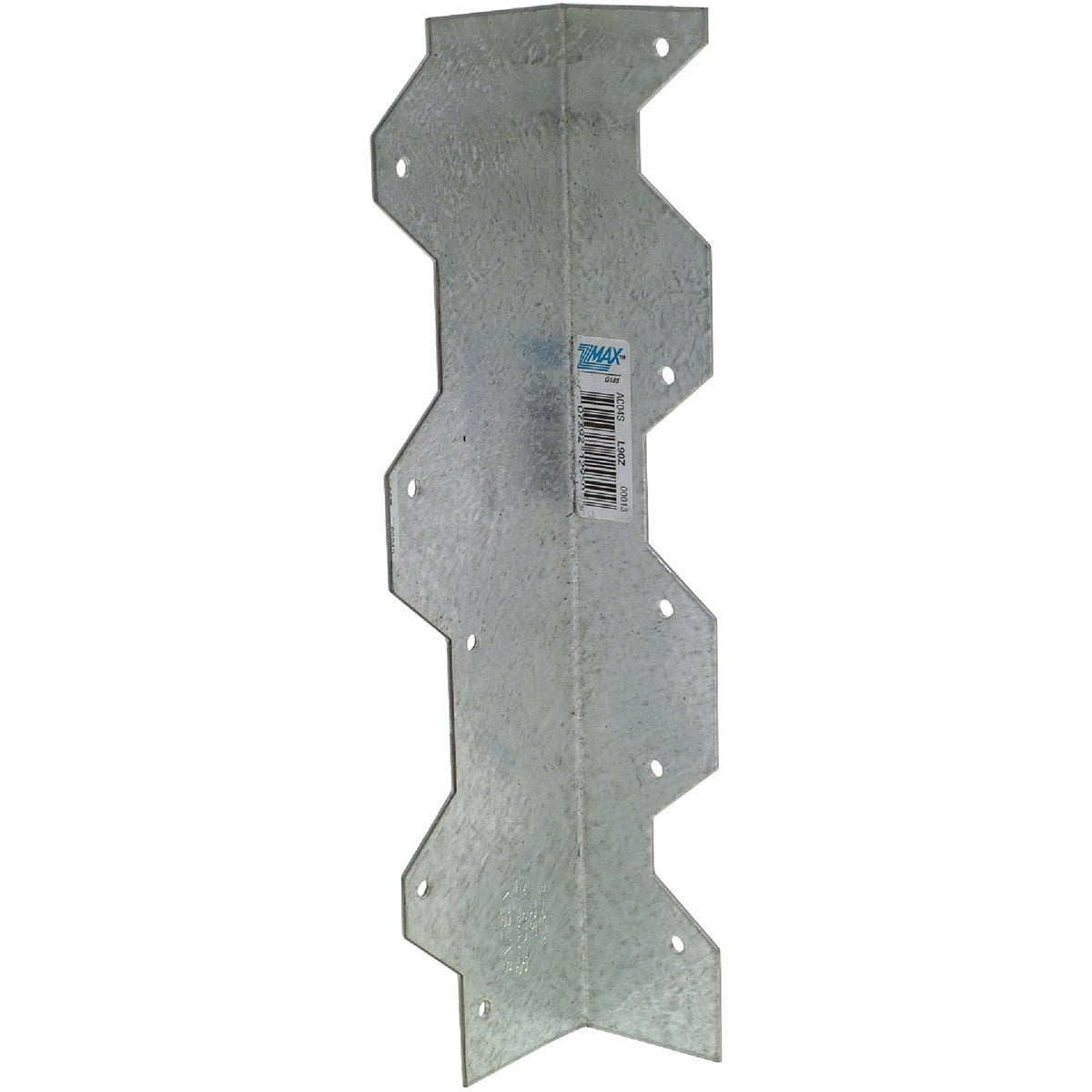

Simpson Strong-tie L90Z Reinforcing L-angle 16-gauge

Product Description

The SIMPSON STRONG-TIE L90Z is a 16-gauge galvanized steel reinforcing L-angle bracket designed to strengthen structural angle connections in wood framing applications. The L90Z delivers a stronger load path than a standard toe-nailed connection, making it a reliable choice where code-compliant, engineered fastening is required. Its staggered nail pattern is built into the design to reduce the risk of wood splitting during installation. Weighing approximately 0.45 pounds per unit, it is compact and easy to handle on the job site. Licensed contractors, framers, and structural carpenters use this bracket where angle connections require positive mechanical reinforcement.

The L90Z is suited for residential and light commercial wood-frame construction where angle connections must meet load transfer requirements. Typical applications include wall-to-plate connections, framing corners, ledger reinforcement, and similar structural junctions. The galvanized finish provides corrosion resistance appropriate for protected interior framing environments. Some sizes in the L90 product family are also available with ZMAX coating for applications requiring enhanced corrosion protection.

Key Features

• 16-gauge galvanized steel construction for durability and corrosion resistance
• Staggered nail pattern reduces splitting risk in dimensional lumber
• Delivers greater connection strength than a toe-nailed joint
• Compact L-angle profile fits standard framing connection points
• ZMAX coating available on select sizes for enhanced corrosion protection

Compatibility

Designed as an OEM-style reinforcing connector for standard dimensional lumber angle connections in residential and light commercial wood-frame construction.

Installation Notes

Installation is typically performed by licensed framers, carpenters, or general contractors. Fasten using the nail or screw type and quantity specified on the connector or in the applicable load table to achieve rated connection values. Follow all applicable building codes, including IRC and IBC requirements for structural connectors. Do not substitute fastener size or quantity, as this affects the rated load capacity of the connection.
